Dental Implant Motor (Model: PLH‑VM3) User Manual Summary

1. Basic Information

• Foot Control: IPX6 waterproof
• Main Unit: IPX1 waterproof

2. Safety Instructions

• Use only by specially trained implant dentists for patients aged 18–70.
• Do not modify the device without manufacturer approval; avoid electromagnetic interference.
• Continuous motor operation ≤ 30 seconds to prevent overheating.
• Do not use with flammable anesthetic gases; not for patients with pacemakers, systemic diseases, poor bone quality, or anticoagulant/chemotherapy/radiotherapy treatment.
• Control Unit and Foot Control cannot be sterilized; clean with damp cloth and after power off.

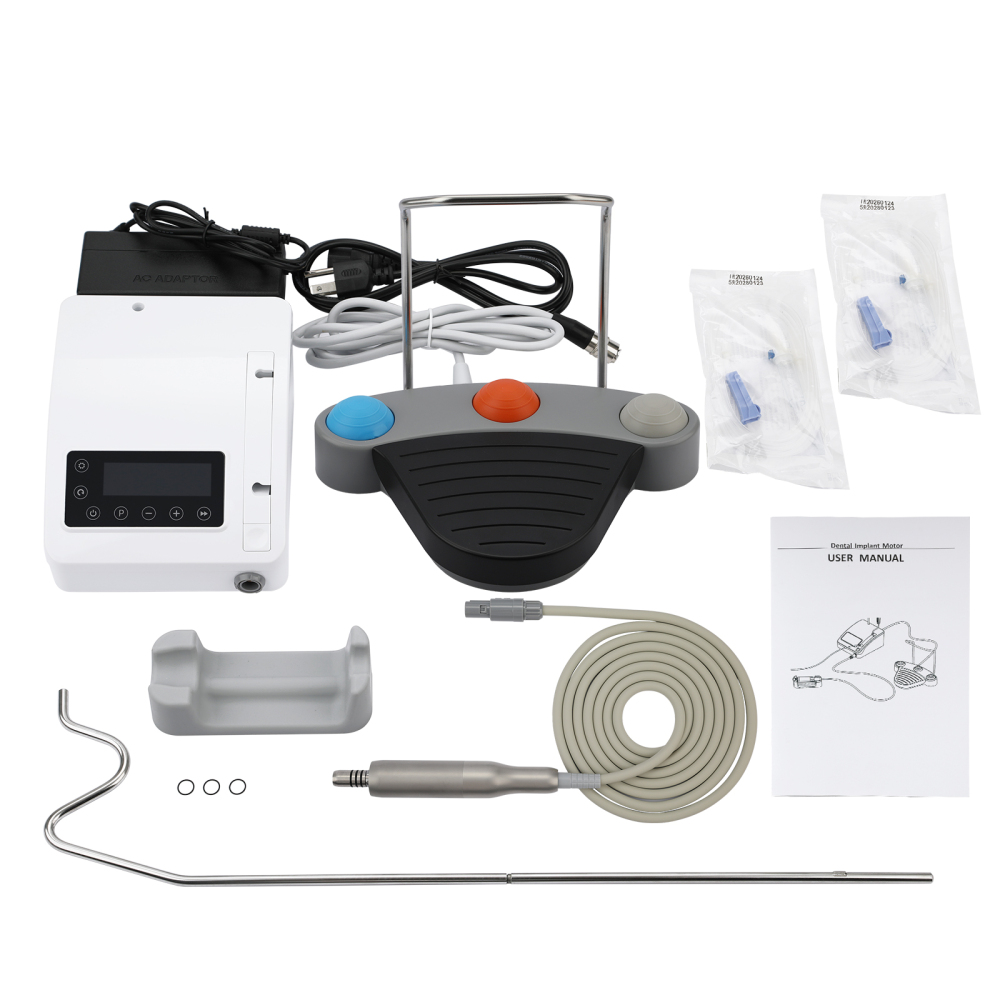

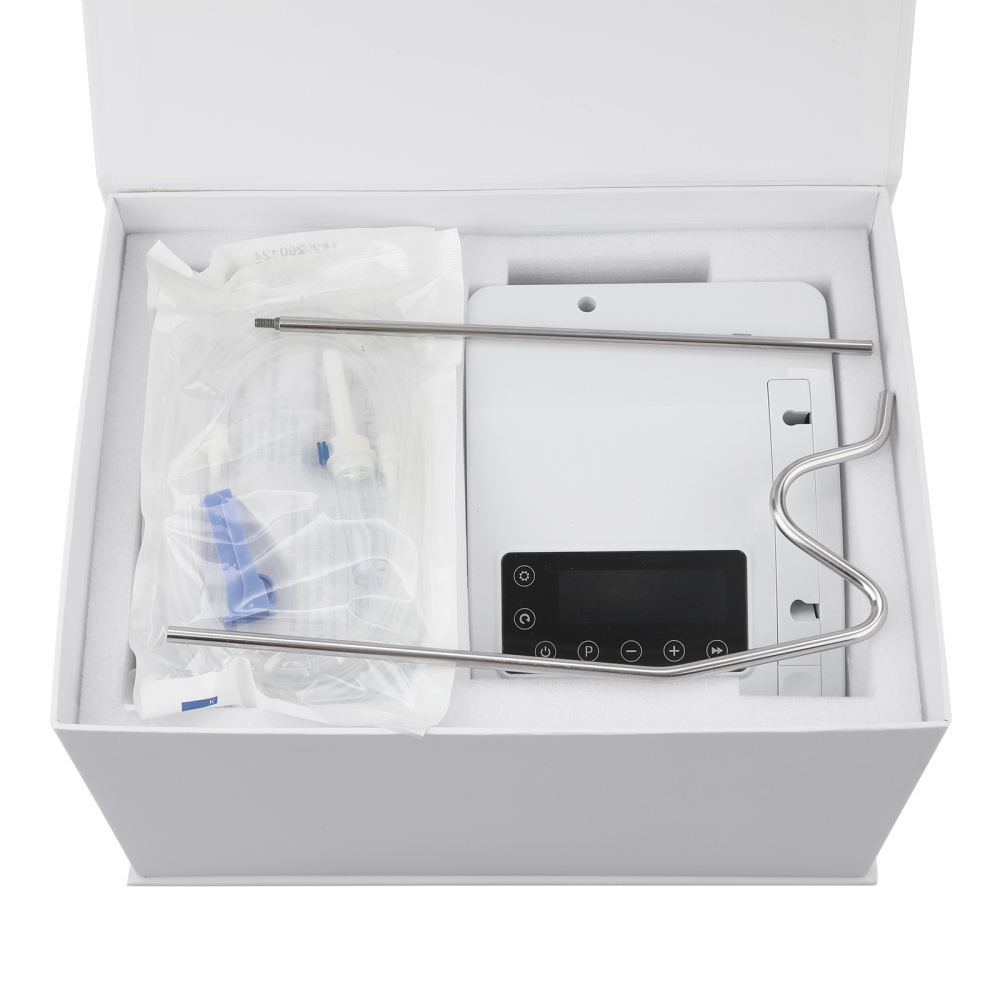

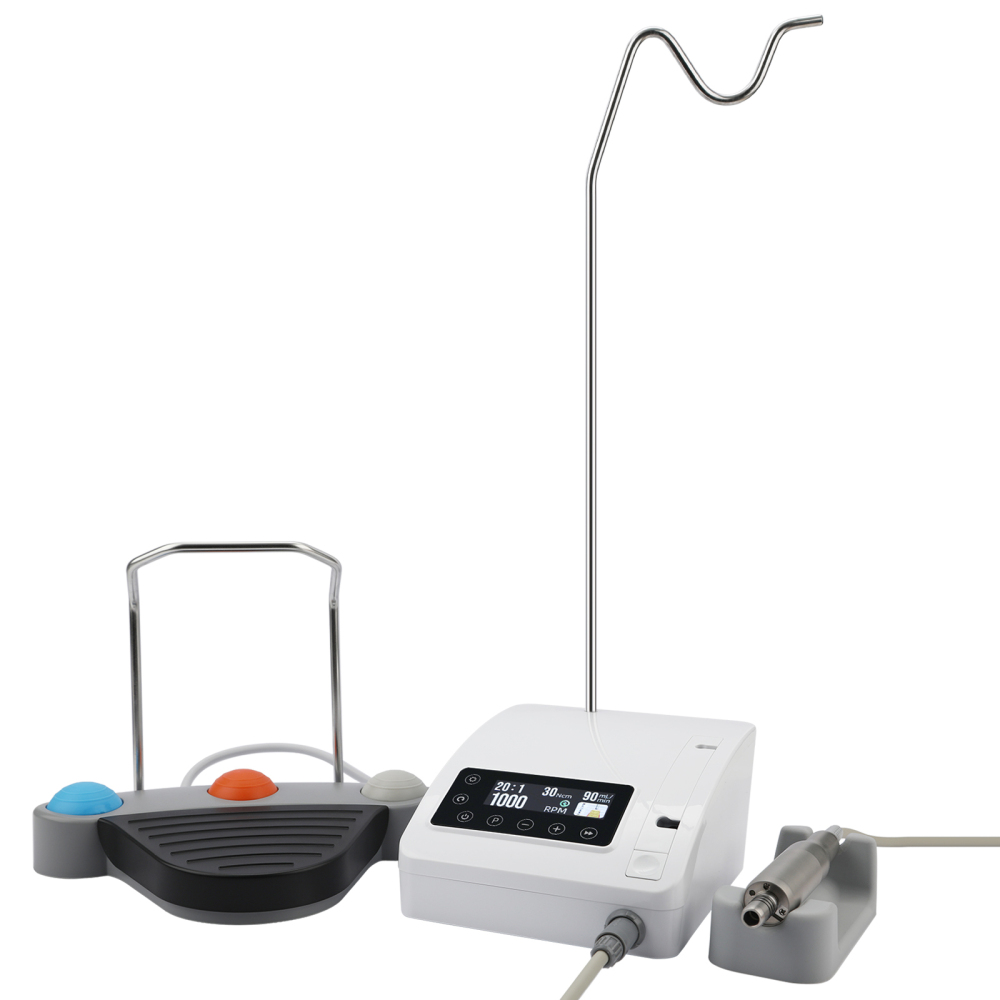

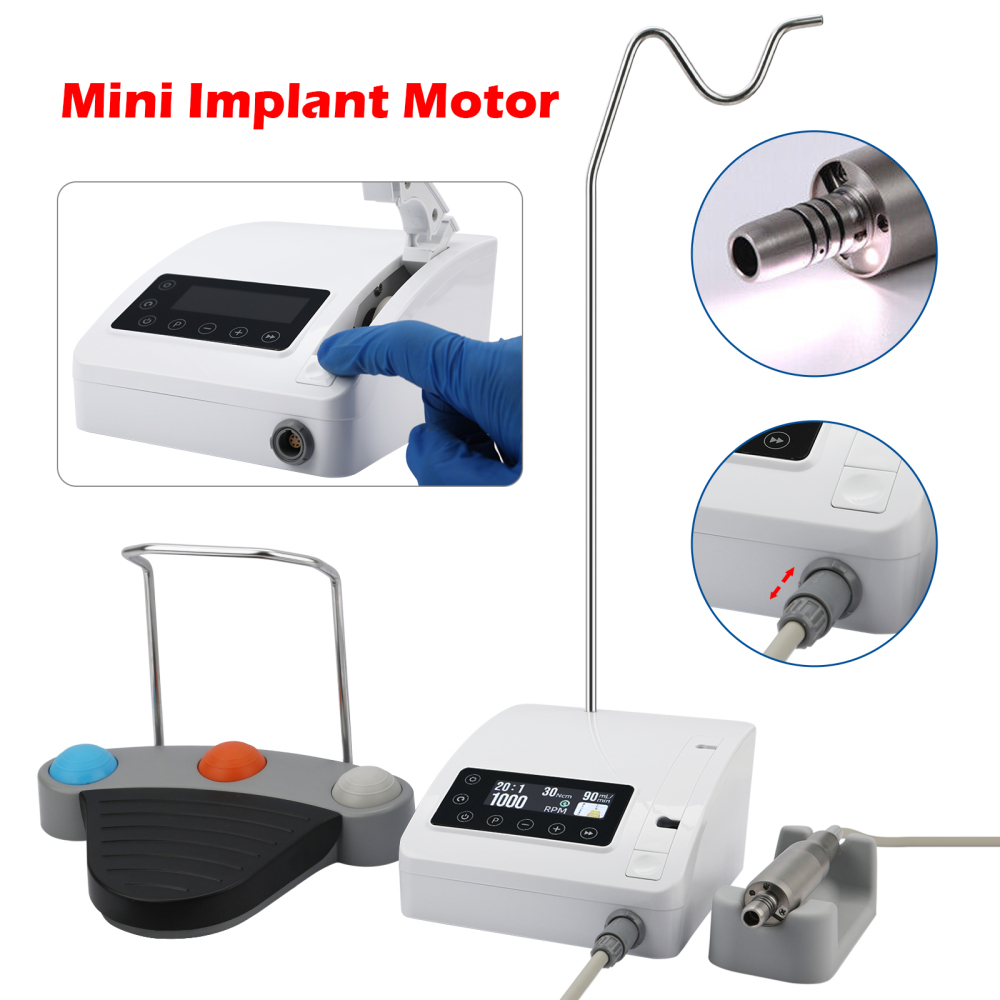

3. Package Contents

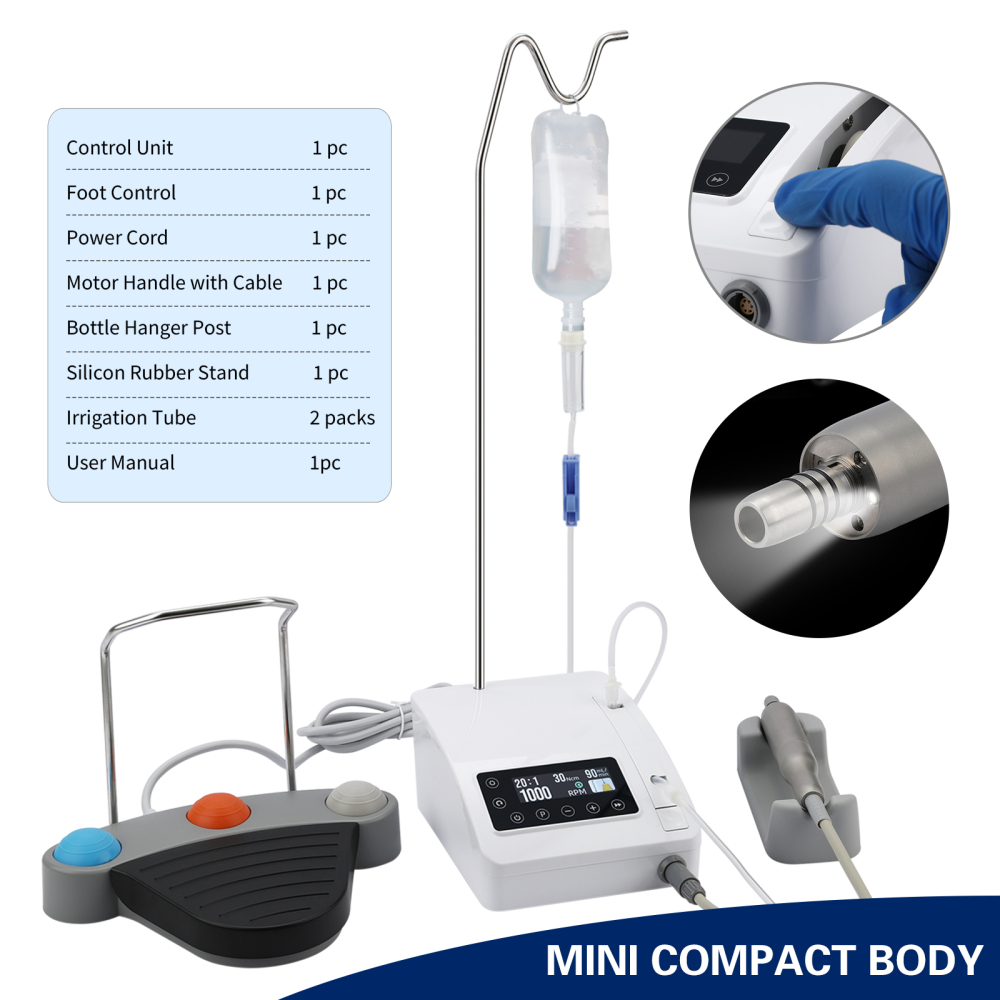

1. Control Unit (1pc)

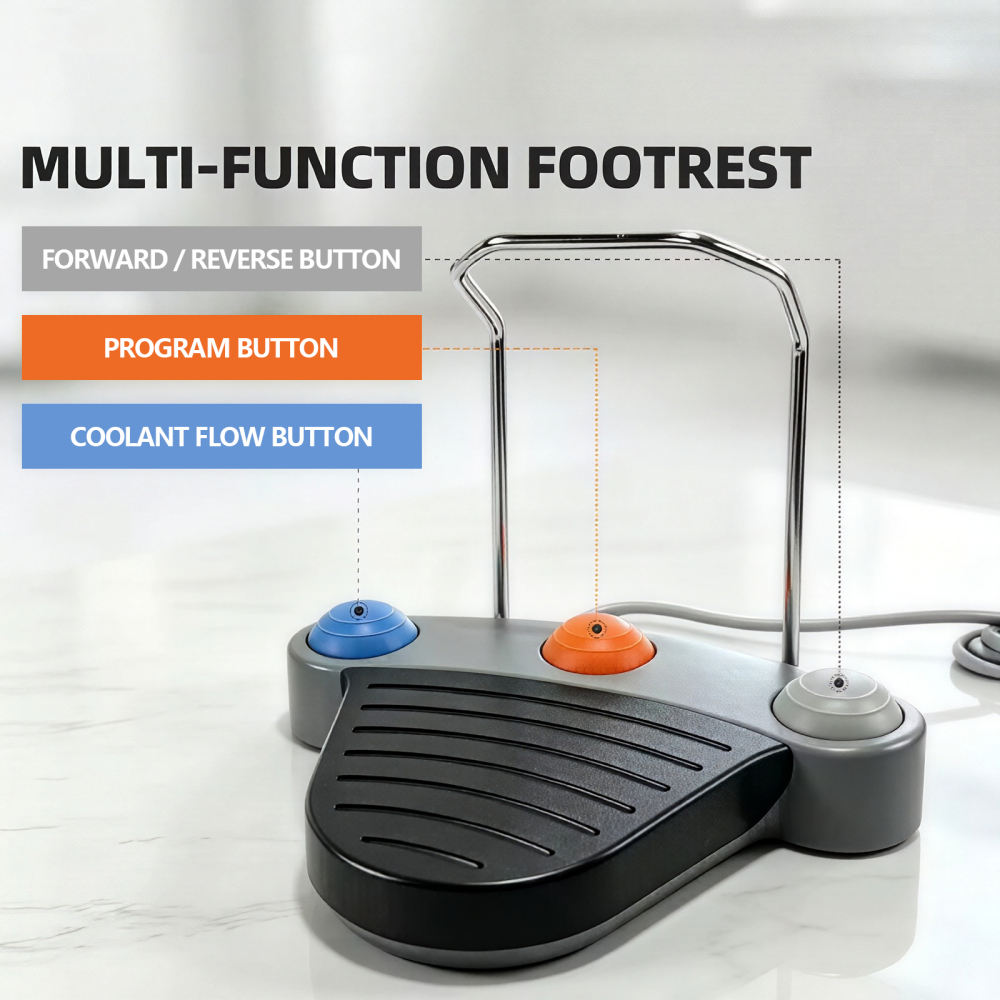

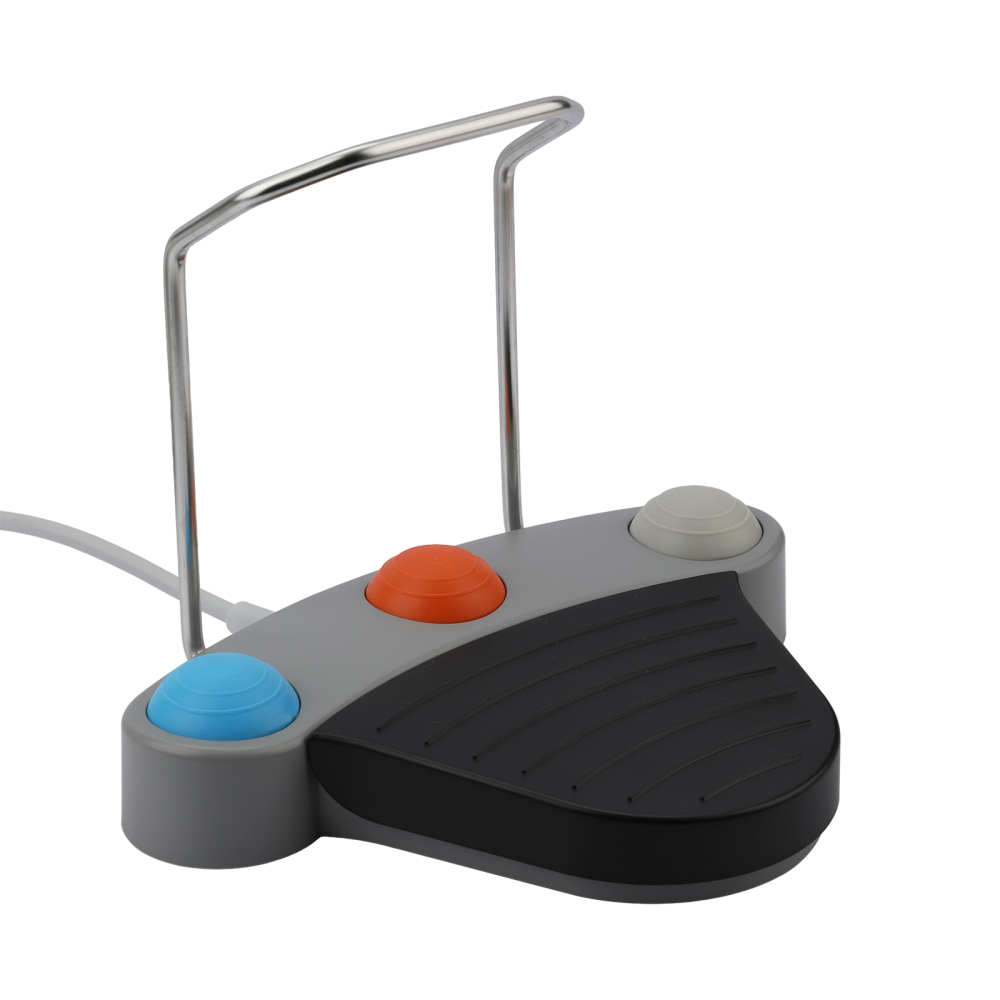

2. Foot Control (1pc)
3. Power Cord (1pc)

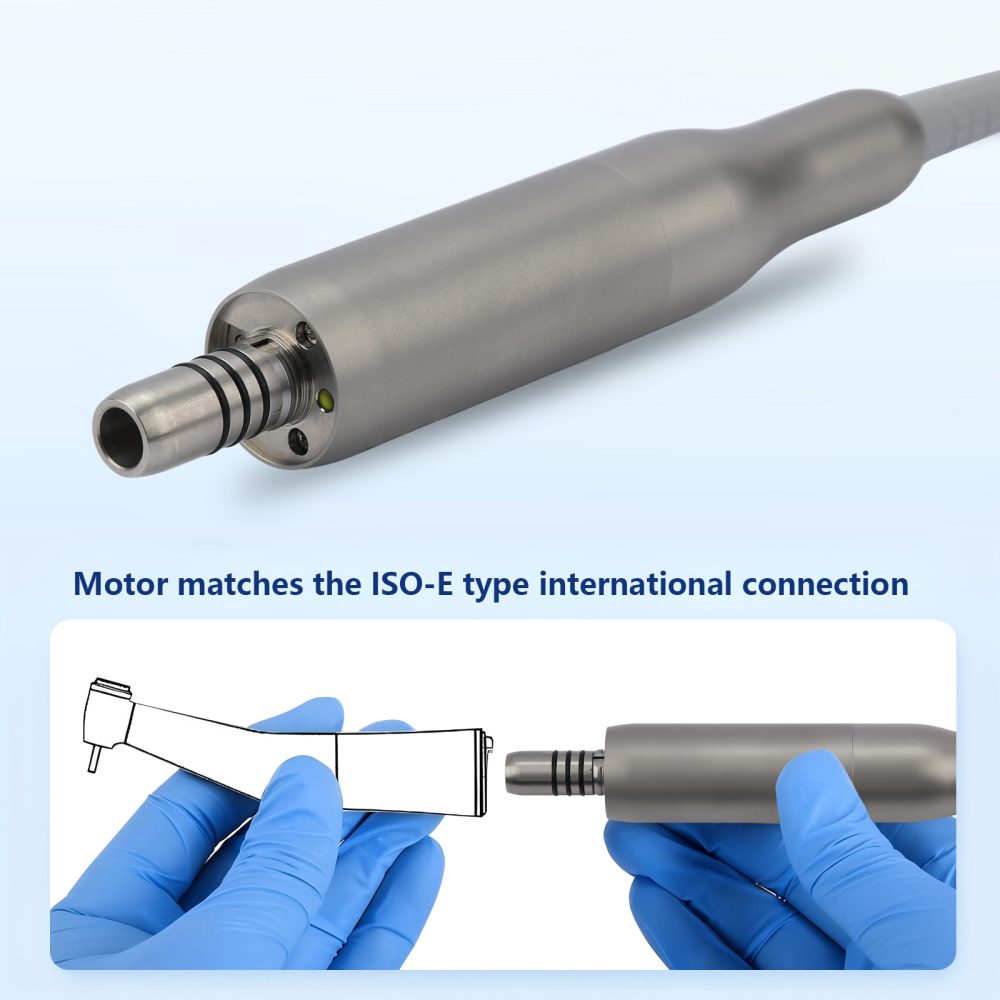

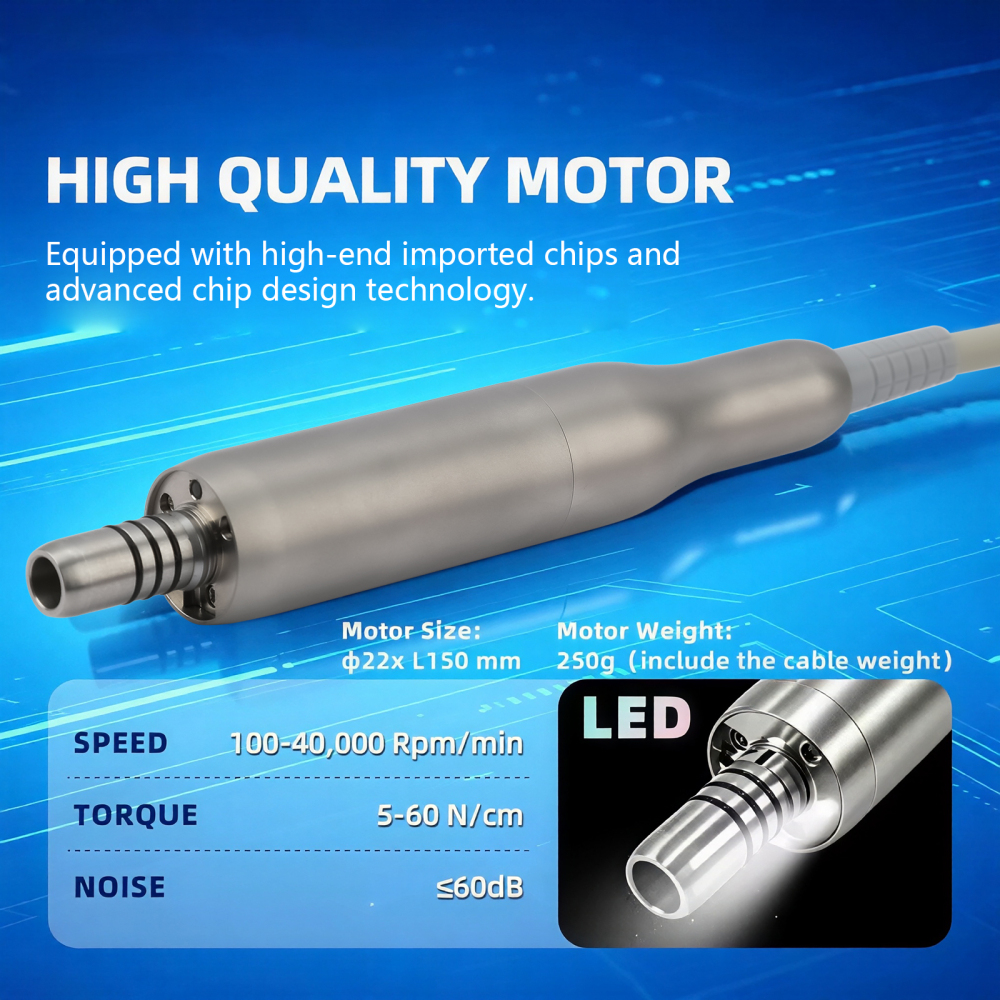

4. Motor Handle with Cable (1pc)
5. Bottle Hanger Post (1pc)
6. Silicon Rubber Stand (1pc)
7. Irrigation Tube (2 packs)

4. Functions & Parameters

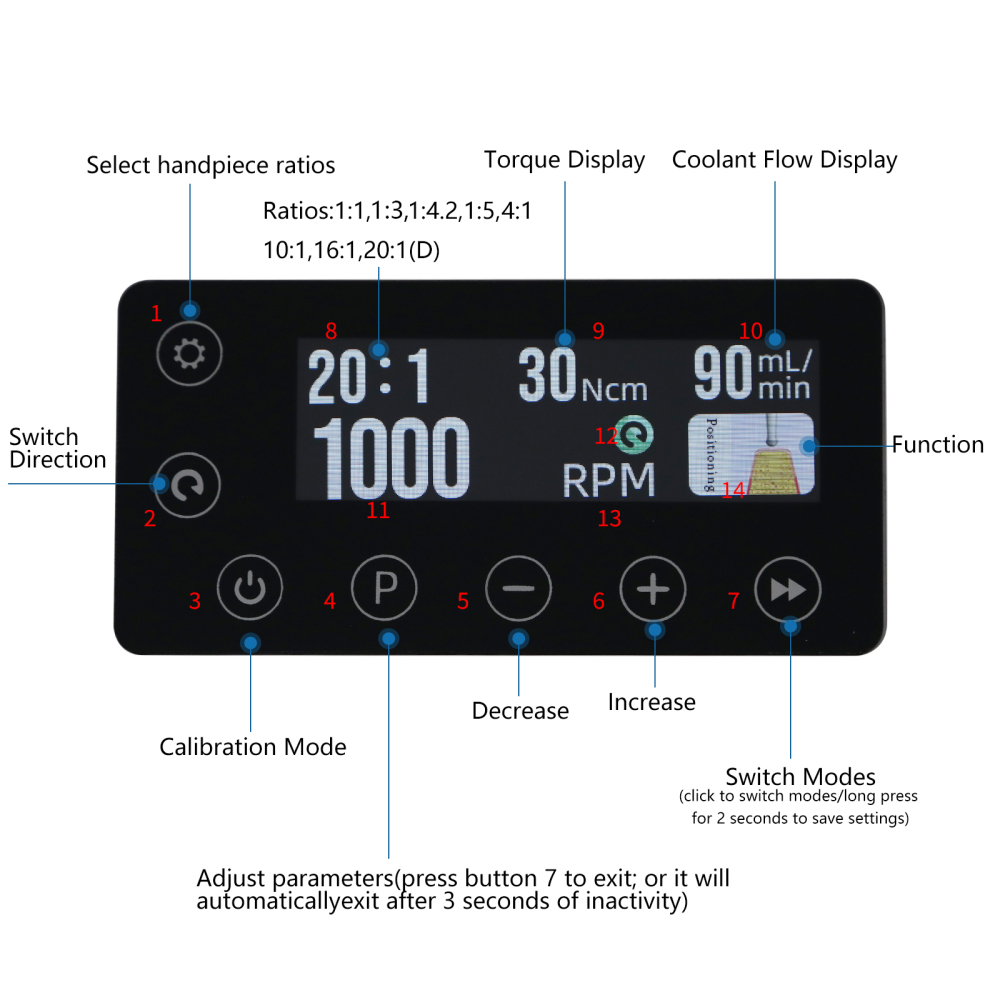

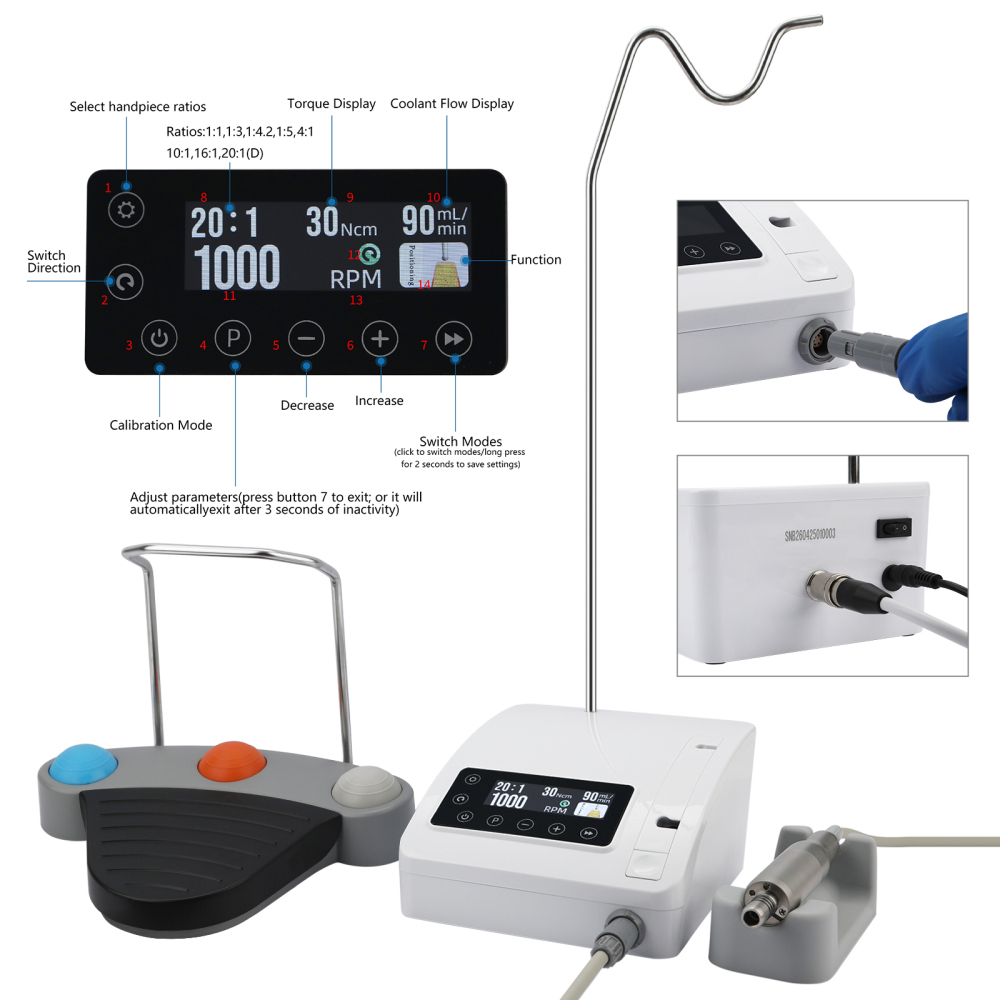

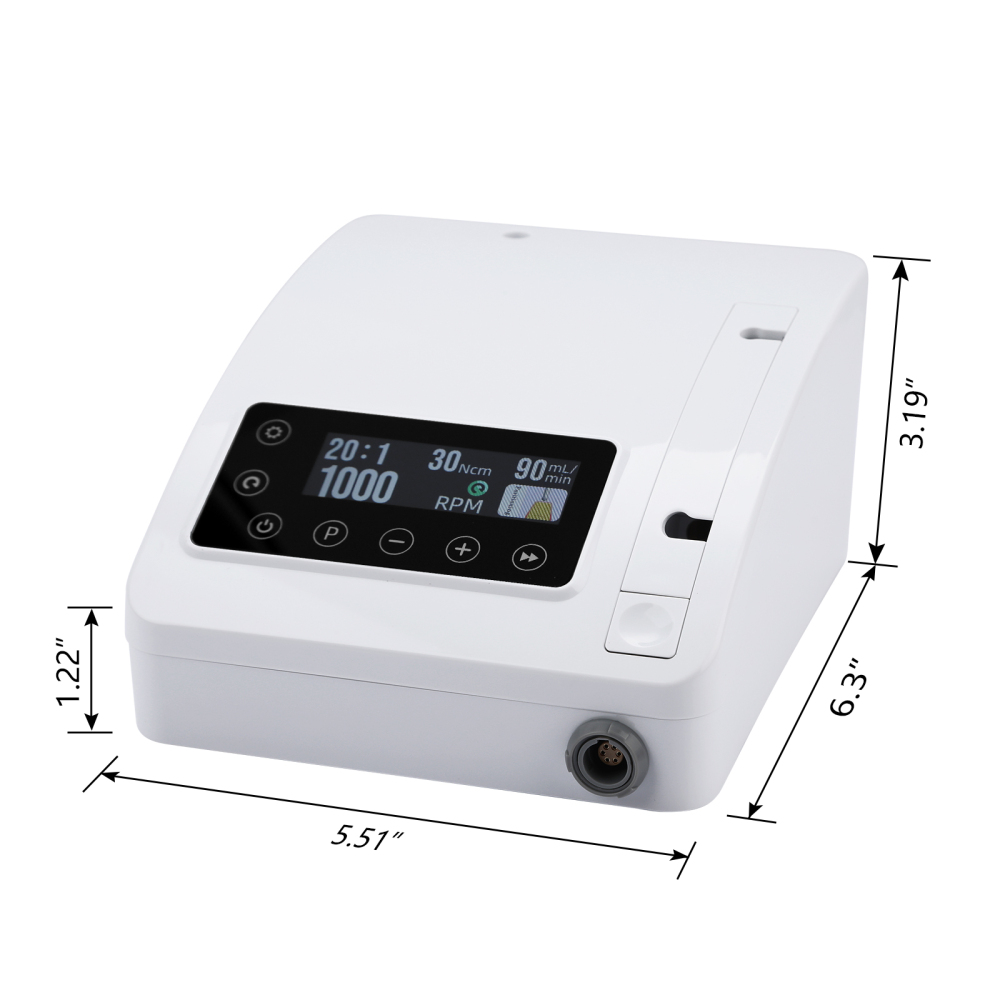

• Control panel: adjust speed, torque, water flow, ratio; forward/reverse; calibration; mode switch.

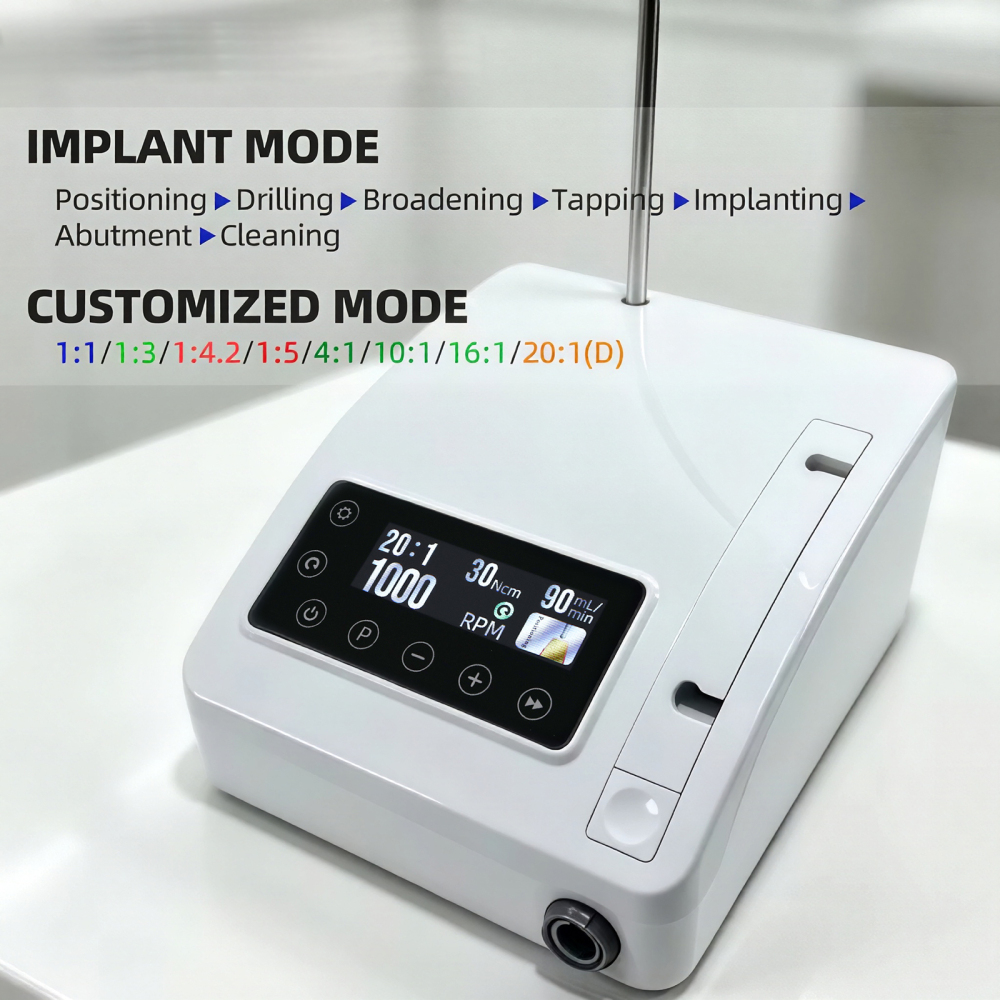

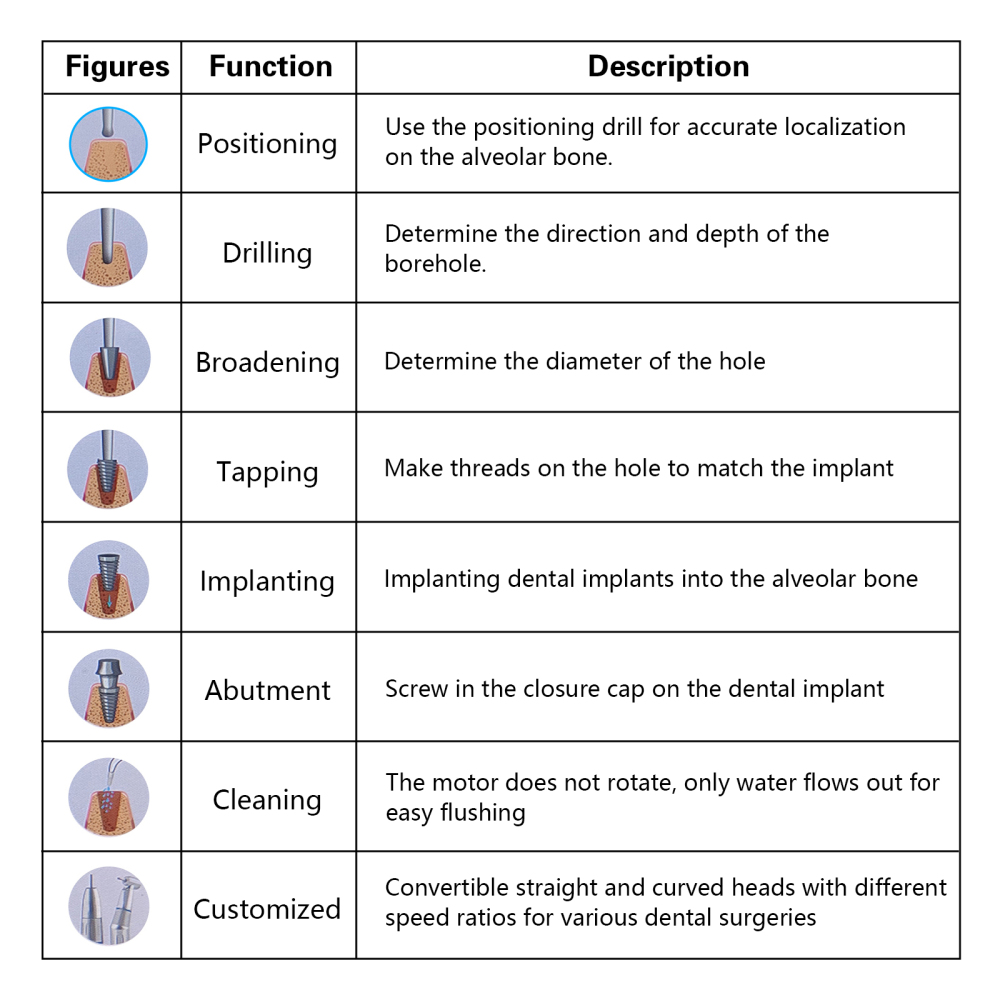

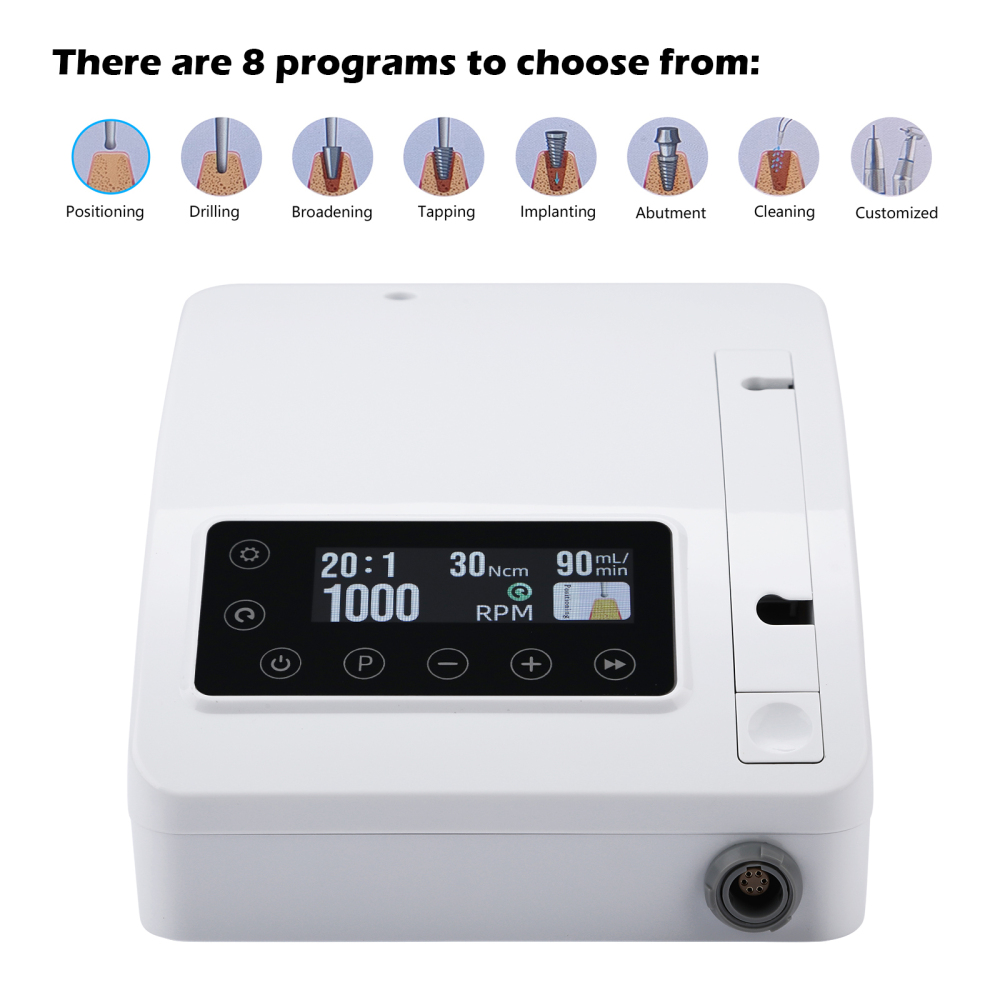

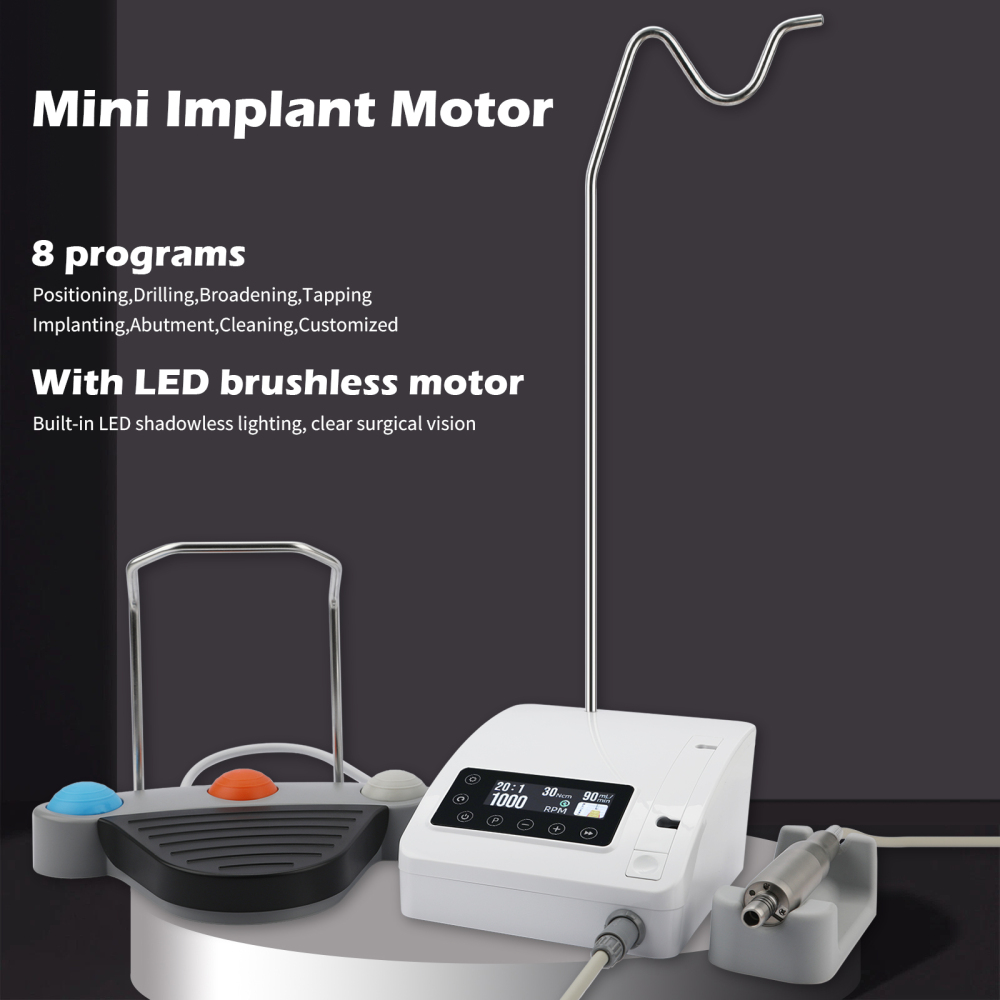

• 8 preset programs: Positioning, Drilling, Broadening, Tapping, Implanting, Abutment, Cleaning, Customized.
• Default ratio: 20:1
• Speed range: 5–20000 rpm
• Torque range: 5–60 Ncm
• Water flow: 0–140 mL/min

5. Error Codes

• E3: Motor not calibrated
• Motor overheating
• E6: System error
• Solution: Turn off power, check, then restart.

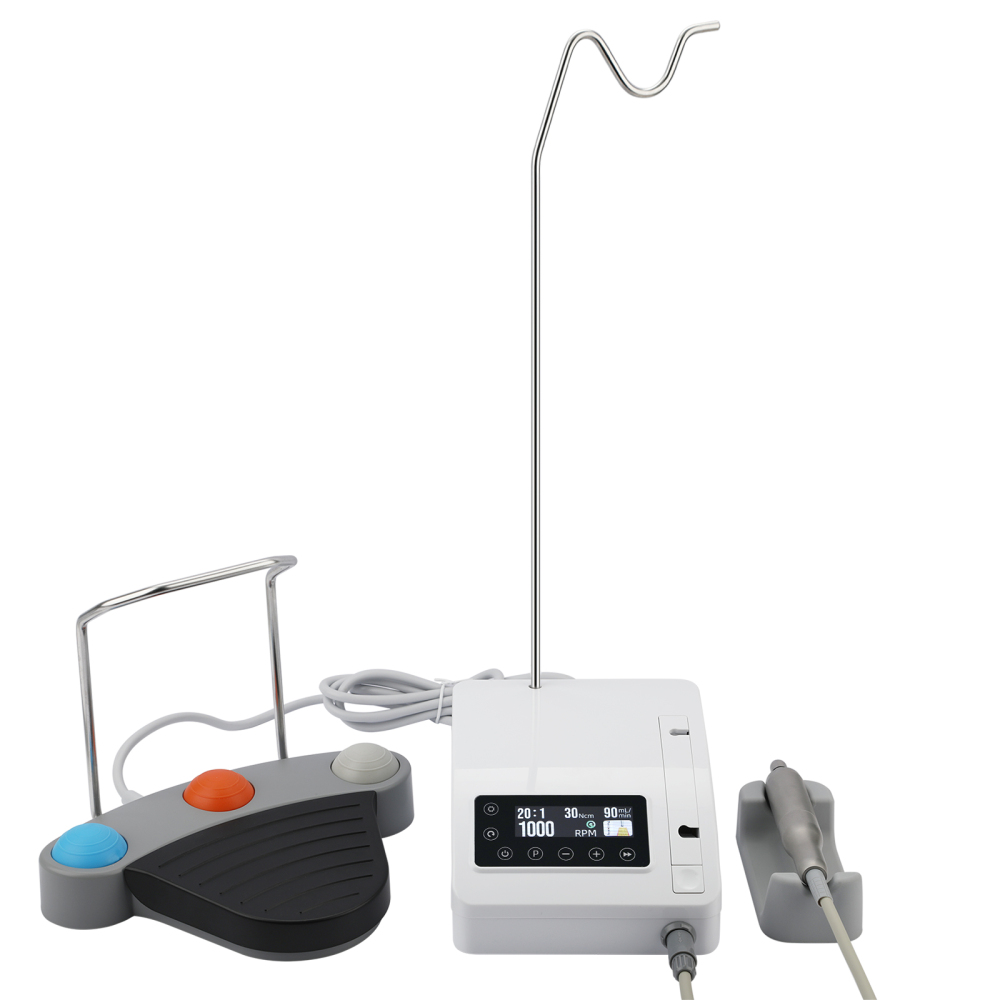

6. Installation Steps

1. Connect foot pedal to the socket.
2. Install bottle hanger and hang saline bottle.
3. Connect power cord and motor handle.

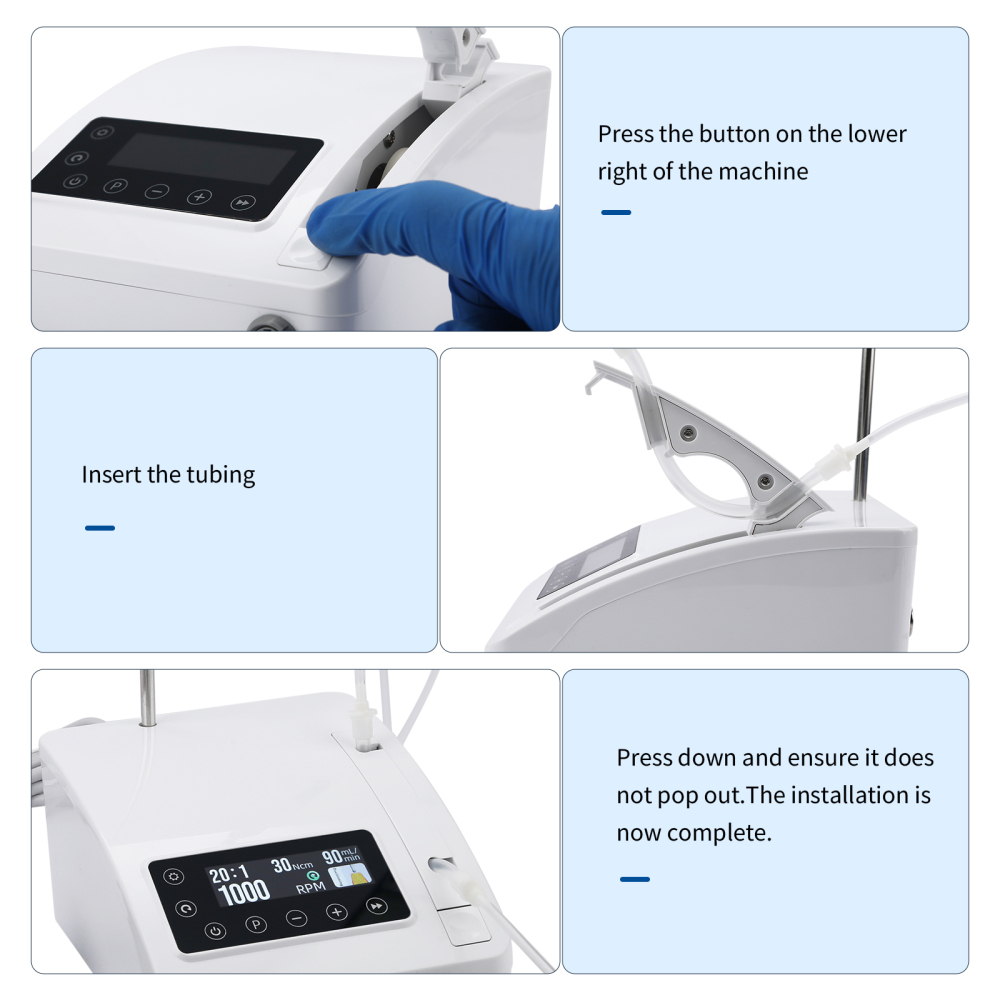

4. Install irrigation tube properly.

7. Cleaning & Maintenance

• Control Unit & Foot Control: Wipe with damp cloth + (no sterilization).
• Motor Handle: Clean and disinfect with medical before/after use.
• Storage: Cool, dry, ventilated place; −10–50°C, 10–85%RH; avoid toxic/corrosive/flammable items.
• Service life: 5 years.
• Long‑term storage: Power on for 5 minutes monthly.

8. Specifications

• Power: AC 100–240V 50/60Hz, DC 36V 3A
• Dimensions: 310×227×179 mm
• Weight: 3.3 kg
• Foot control cord length: 1.8 m
