Dental Ultrasonic Scaler & Air Polisher Periodontal Endodontic Therapy System Kit

Description:

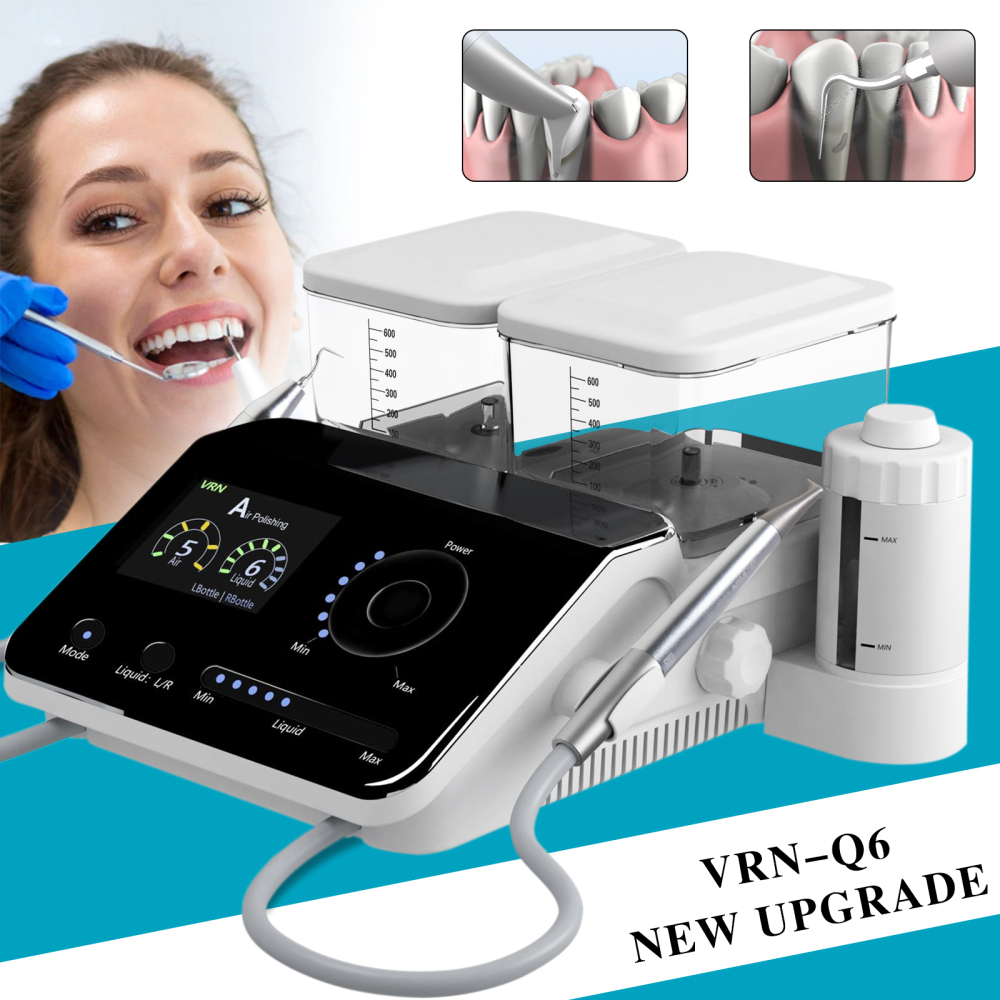

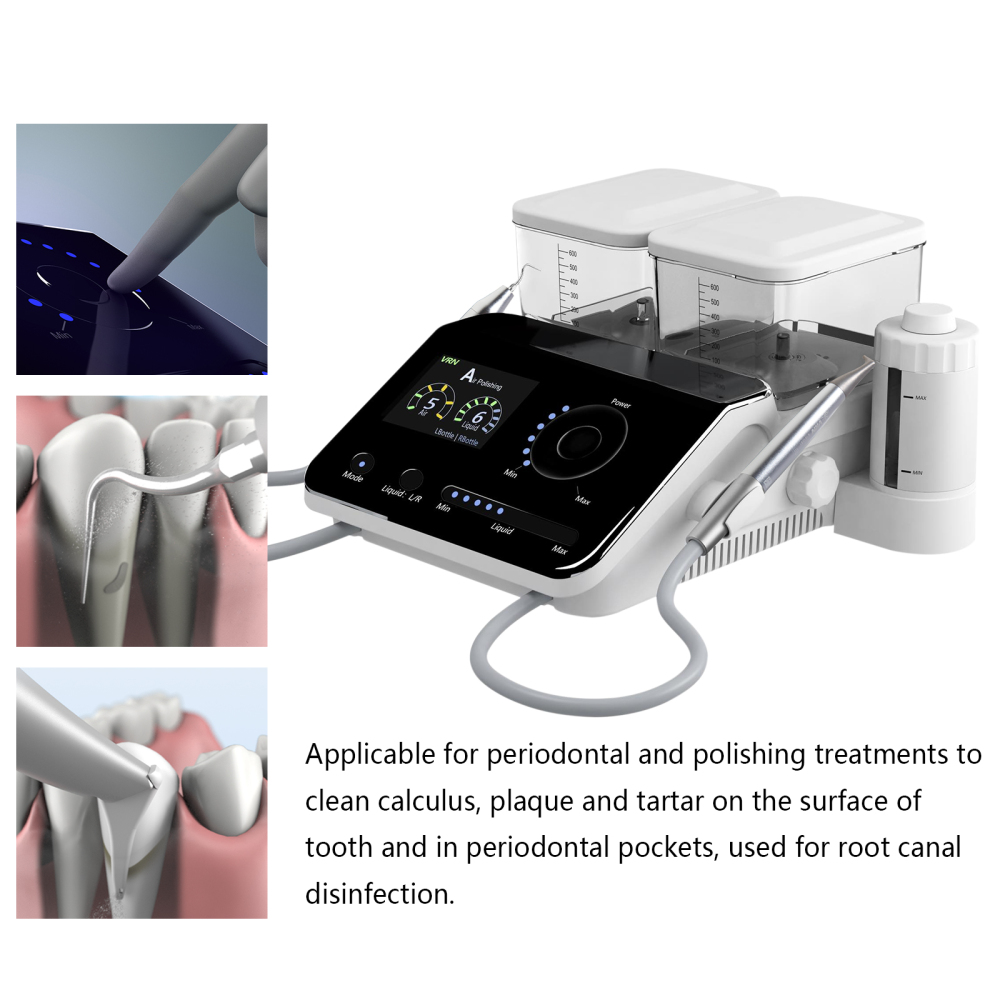

 Q6

Specification
Name: Ultrasonic periodontal therapy system
Input AC100~240V,50/60Hz
Main Unit input DC30V, 1.3A
Water input pressure 0.5MPa~0.6MPa
Vibration frequency of the tip 28kHz+3kHz
Ultrasonic output power 3W-20W
Output Half-excursion ≤2N
Foot Switch Batteries 1.5Vx2
Receiving Sensitivity -114Db
Main Unit Dimensions 310x370x170mm
Packing Size 470x400x235mm
Weight of main unit 1.50kg
Gross Weight 8.5kg
Quality guarantee host -3 years, handpiece -1 year
Scaling Tip G1*1.G2*1.G3*1 G4*1. G5*1.E1*1.IM1*1,P1*1,P2R*1,P2L*1P3*1.P11*2.P12L*2.P12R*2P12*2,P13R*1.P13L*1,P15*1

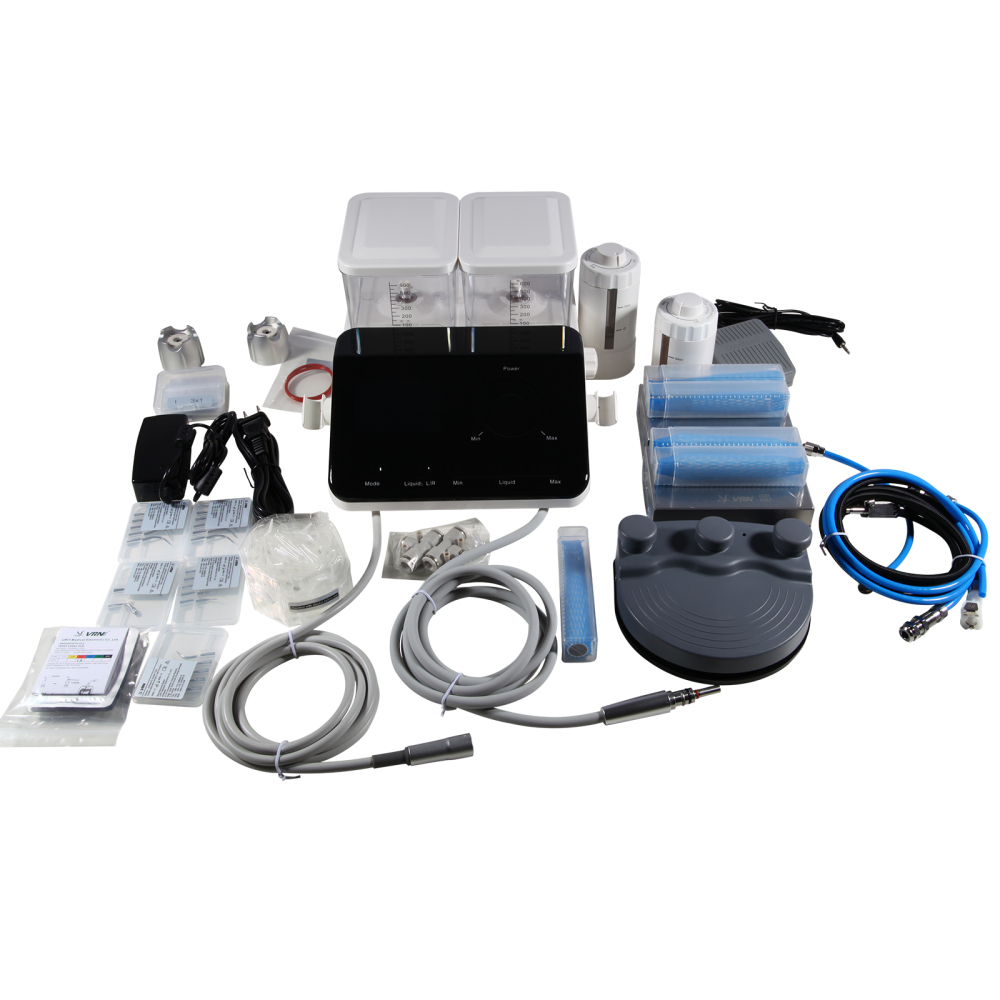

VARIOUS ACCESSORIES
Powder bottle x2
PH-2 LED ultrasonic piezohandpiece x2
AH-1 supragingival air-polishinghandpiece x2
AH-2 subgingival air-polishinghandpiece x1
Q6 subgingival air-polishing tip x40
Scaling and periodontal tip x20
Endo tip x1
Implant maintain tip x1
Disinfection box x2
Wireless foot pedal x1
Wired foot pedal x1
Wrench of endo file x1
Torque tip wrench x1
Protective goggles x1
Ultrasonic endo file x1
Anti powder blockingcomponents x1

Ultrasonic Scaler + Air Polisher 2 in 1
Periodontal treatment - Dental Plaque Control
Polishing & Scaling
Safe, Comfortable, Multifunctional
6 functions
Sand blast Cleaning Treatment

Sand blasting cleaning is the mixing of water and sand blasting powder by sand blasting equipment using high pressure at a distance of 2-3mm from the tooth surface

To remove dental attachments (e.g. plaque, pigment, soft scale, etc.).And polish the tooth surface, restore the process of whitening teeth

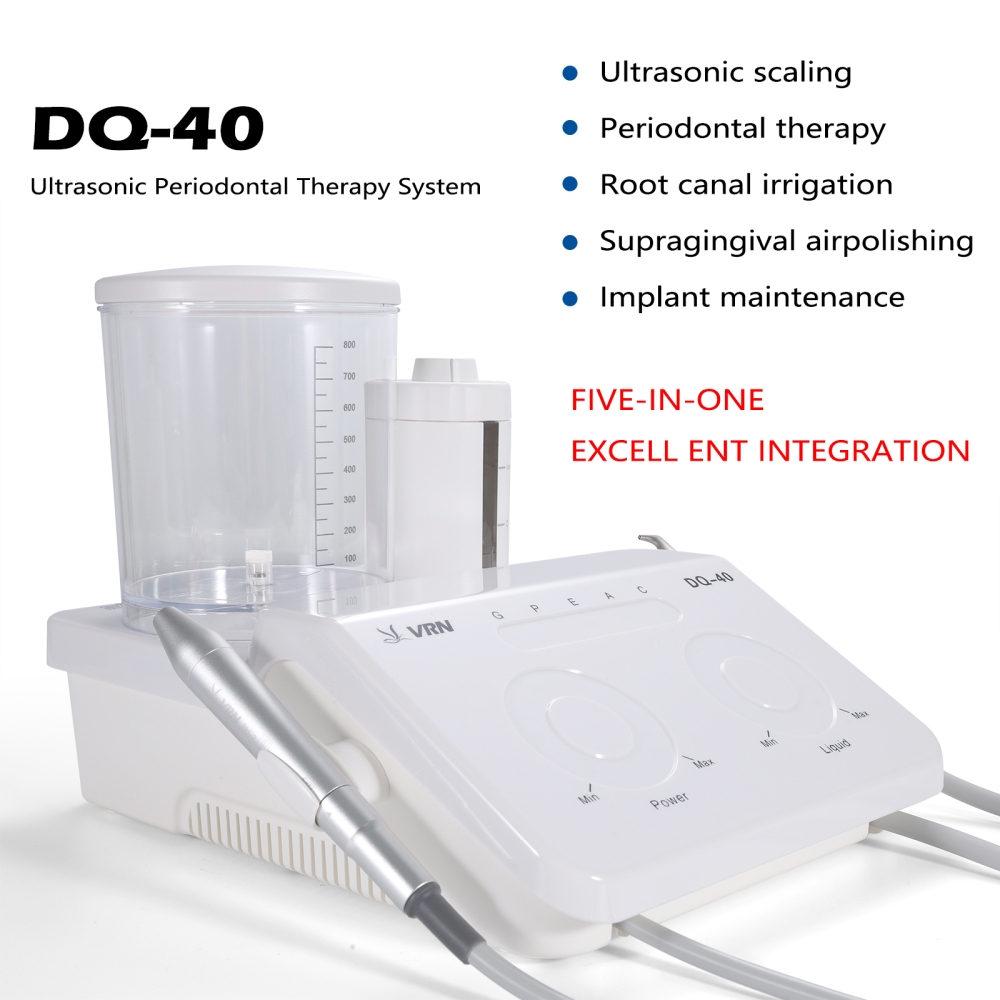

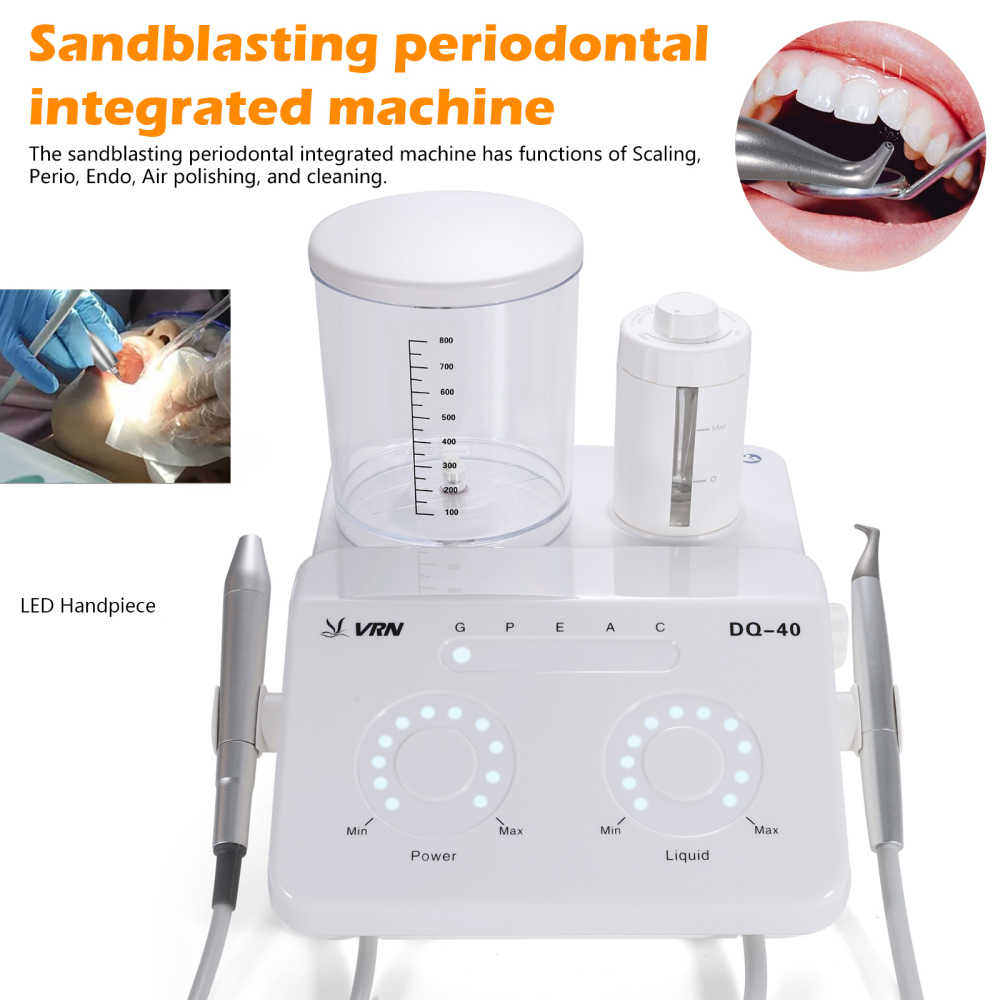

Q40

Description: .

1. Powerful performance,outstanding strength. With technology and art,leading the new frontier of air polishing The operation panel adopts multi-touch mode.

The power of dental scaling and periodontal treatment is controlled intelligently.The imported pressure regulating valve can accurately adjust the air pressureand make the air flow more stable.

2. High speed,High efficiency.New optimized pipeline structure can reduce fluid loss due to pressure,make the device efficiently remove dental plaque,pigment,dental stones and so on.

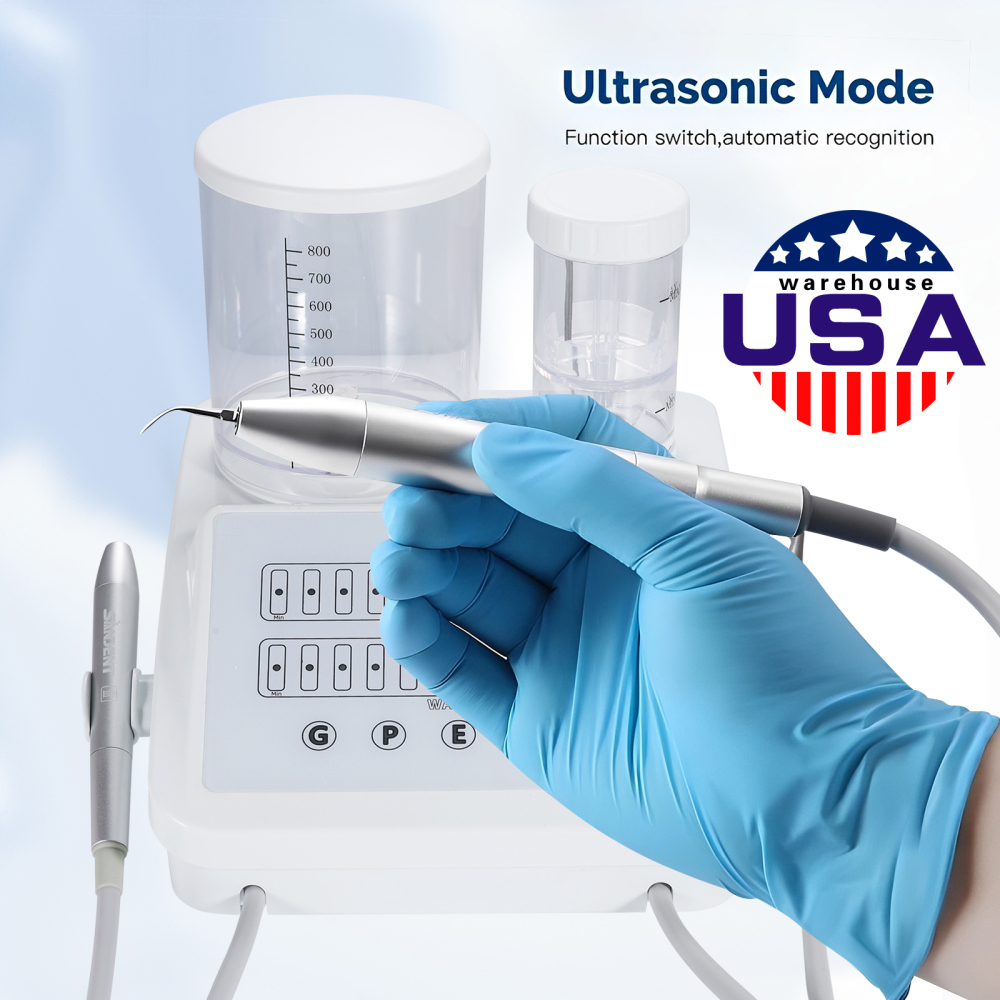

Function switch,automatic recognition.

Handpieces pick recognition function.

3. Handpieces pick recognition function.

Specifications:

Input Voltage：AC 110 V±11 V 60 Hz /AC 230 V±23 V 50 Hz

Input Power：35 VA

Batteries of wireless foot switch：AA Batteries×2

Receiving sensitivity: -114 dB, receive frequency：2.4 G-2.5 G

Vibration frequency of tip：18 kHz～45 kHz

Frequency: 30kHz±5kHz

Flow rate of water: 0-120ml/minute

Air inlet pressure: 5bar~6bar (0.5MPa~0.6MPa)

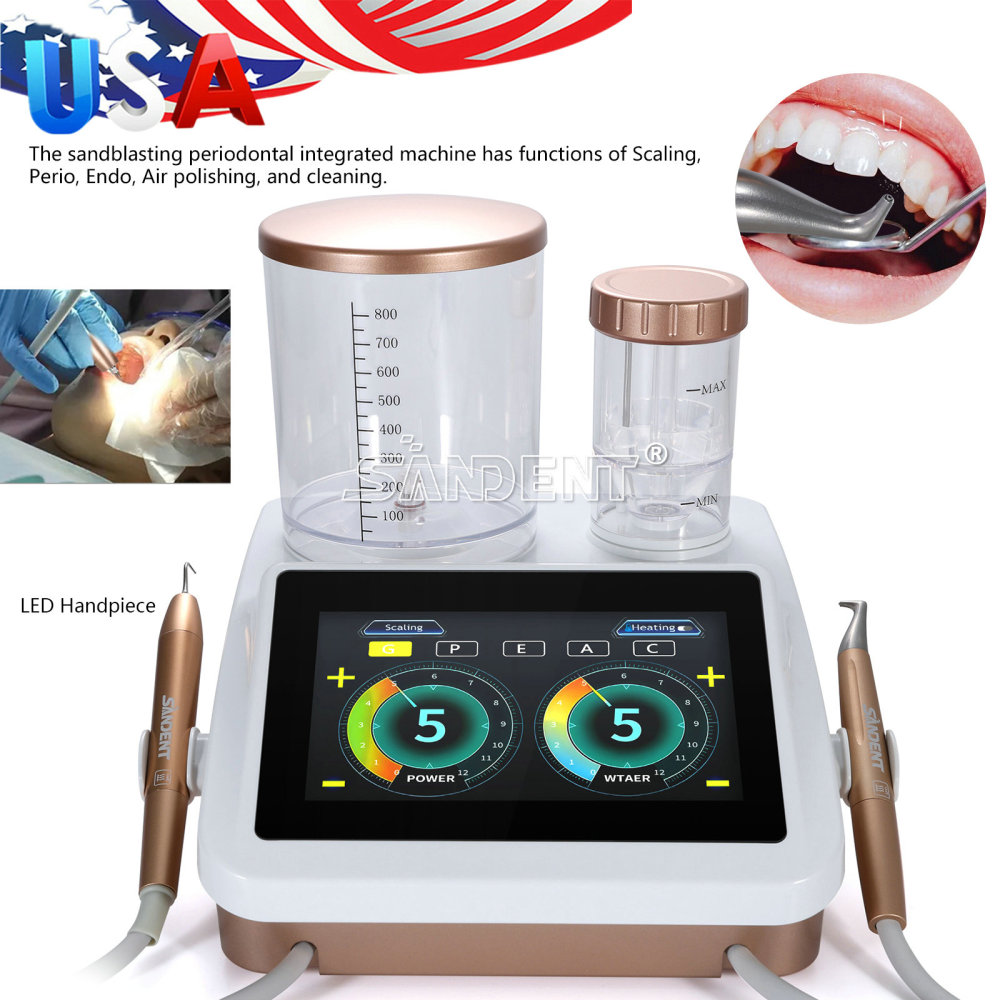

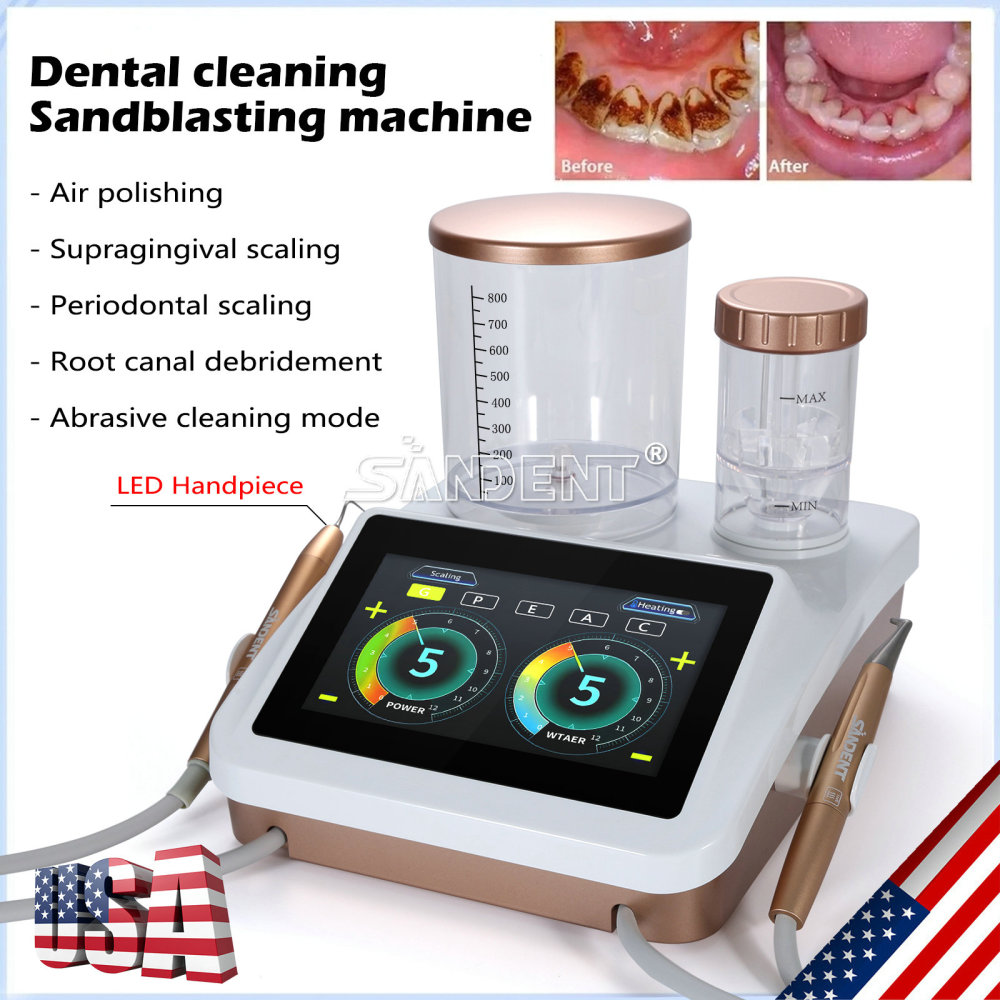

DTA

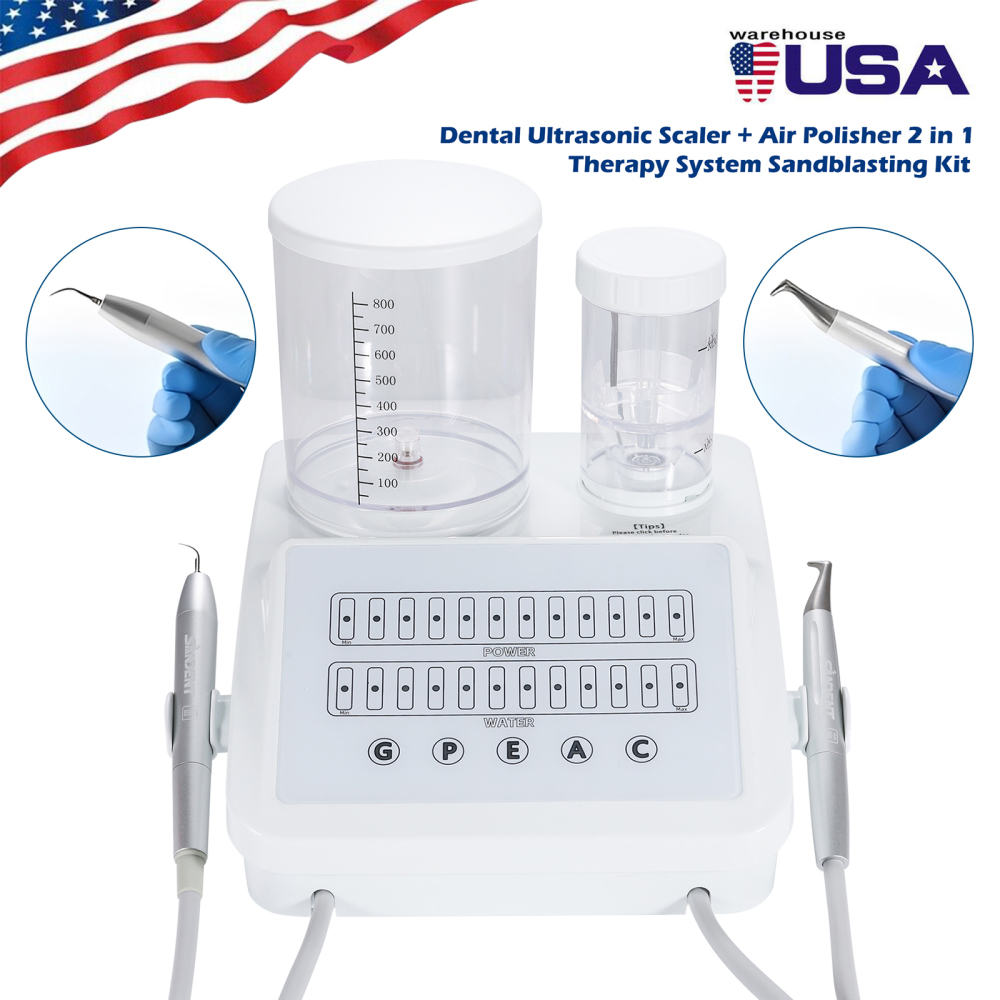

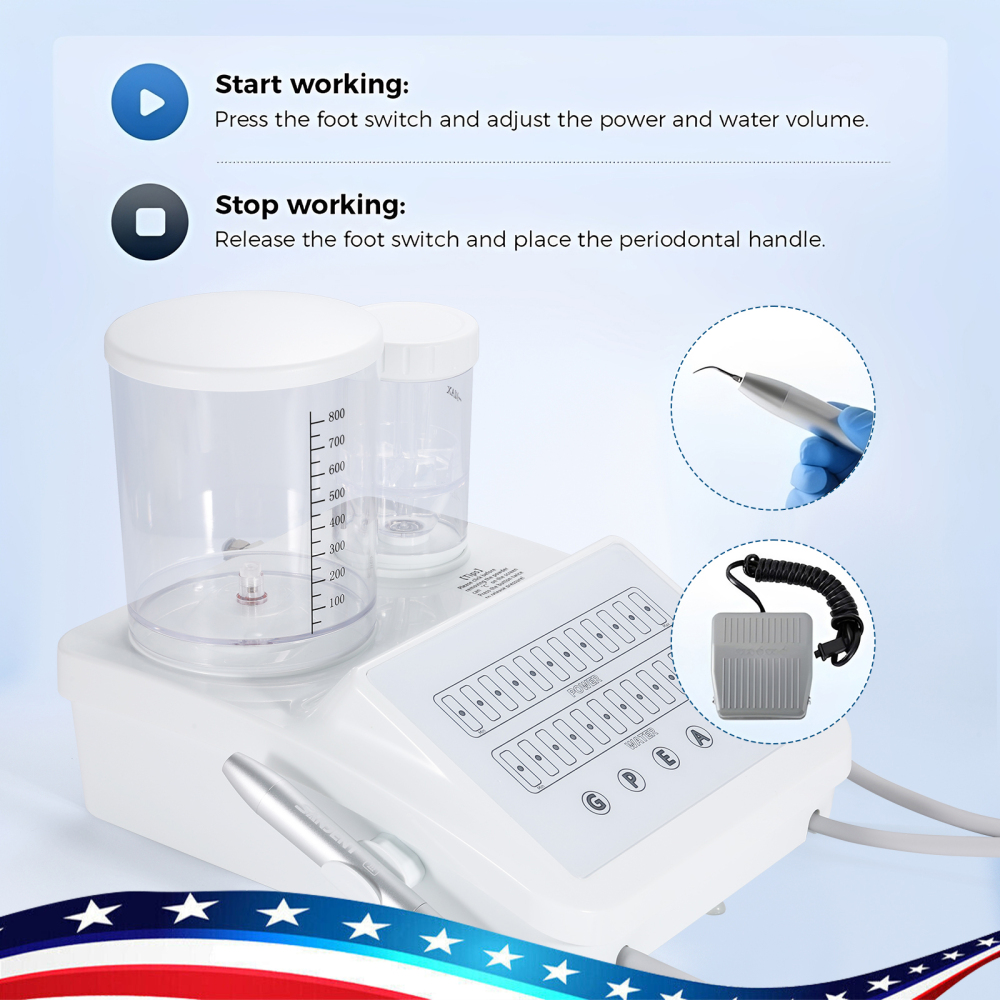

 DT:

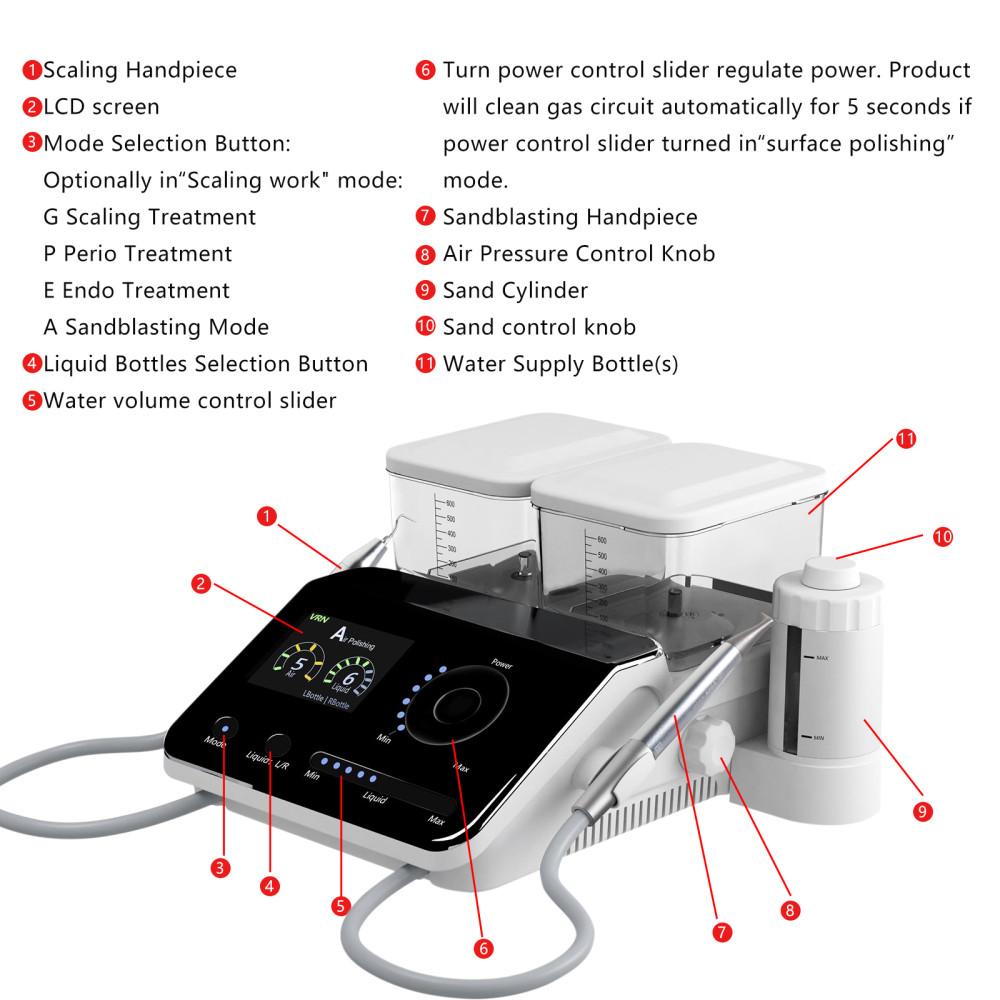

Product Overview:

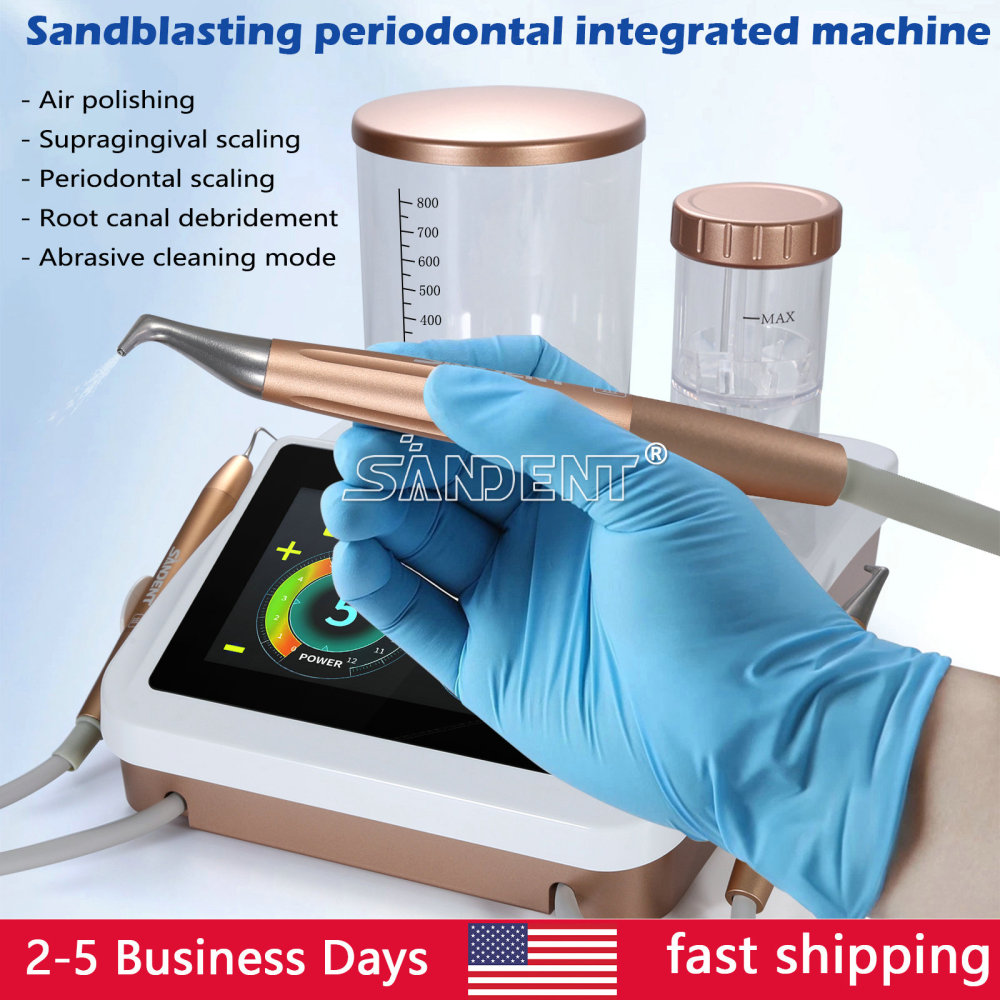

The Periodet Pro is an advanced, all-in-one dental treatment system that integrates ultrasonic scaling, root canal cleaning, and air polishing (sandblasting) functionalities into a single, compact unit. Designed for efficiency and patient comfort, it supports comprehensive periodontal and restorative dental procedures with intuitive operation and robust performance.

Key Features:

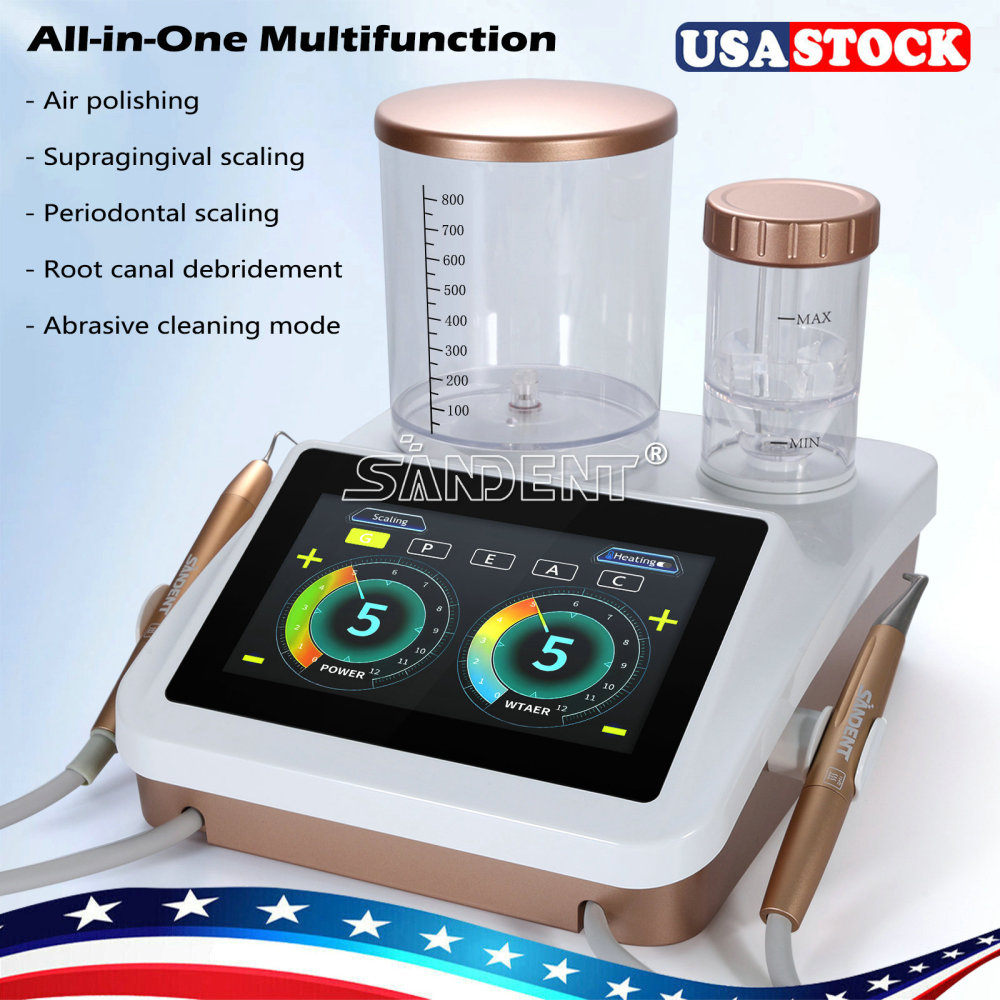

1. Multi‑Function Integration – Combines gingival scaling (G‑mode), periodontal pocket treatment (P‑mode), root canal cleaning (E‑mode), air‑polishing (A‑mode), and internal system cleaning (C‑mode). The unit automatically switches modes based on the attached handpiece.

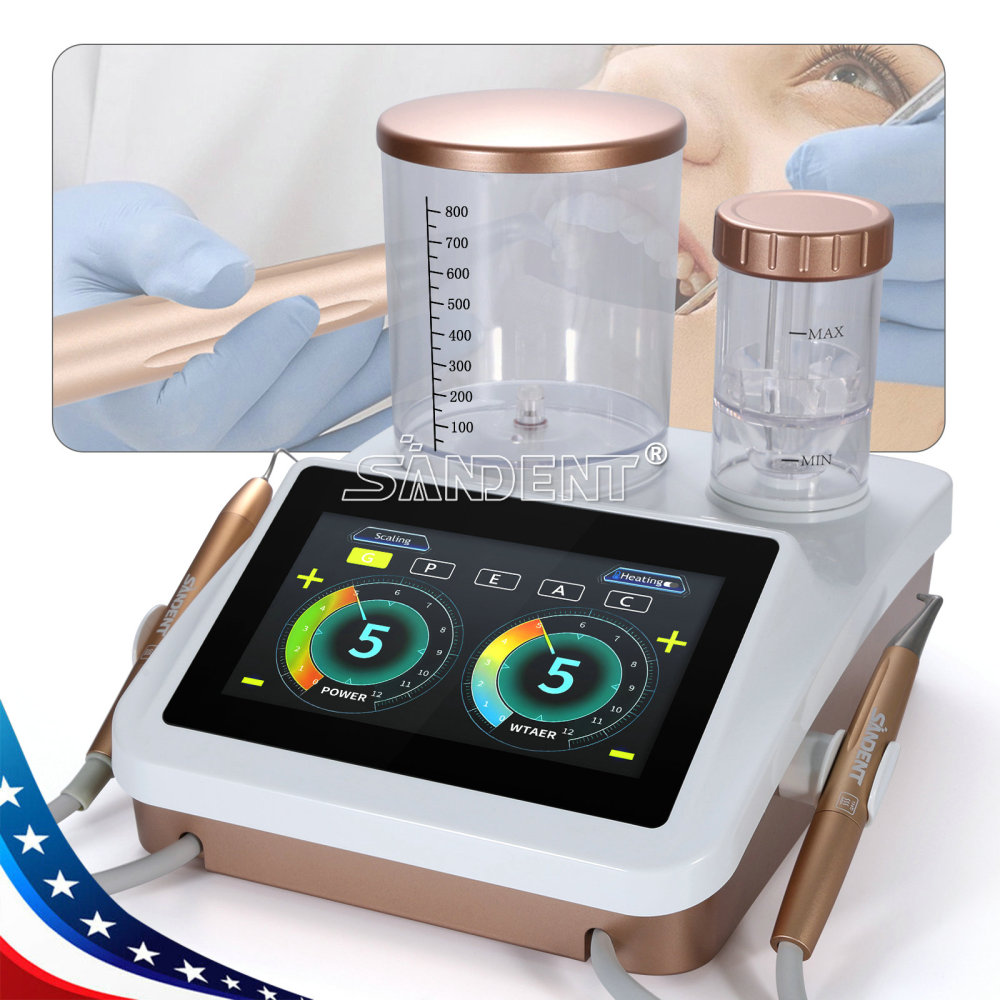

2. User‑Friendly Touch Interface – Features a 7‑inch color touchscreen for clear mode selection, real‑time parameter adjustment (power, water flow, air pressure), and status display.

3. Enhanced Patient Comfort – Utilizes a circular vibration trajectory with minimal tip amplitude, combined with continuous water cooling, to reduce treatment discomfort and provide near‑painless operation.

4. High‑Quality Components – Titanium alloy working tips are gentle on enamel and bone; handpieces and tips are autoclavable (up to 134 °C, 0.22 MPa).

5. Medication‑Ready System – Supports the use of clinical solutions (e.g., hydrogen peroxide, chlorhexidine) through the automated water‑supply system to improve cleaning and disinfection outcomes.

6. Automatic Frequency Tracking – Ensures stable performance by continuously adjusting to the optimal resonant frequency during operation.

7. Easy Maintenance Design – Sandblasting handpiece features a two‑stage disassembly for thorough cleaning; side‑conical powder tank provides consistent abrasive flow.

8. Programmable Cleaning Cycle – Built‑self‑cleaning mode flushes internal tubing to prevent clogging and bacterial buildup.

Standard Configuration Includes:

• Main unit

• Power adapter

• Foot switch

• Ultrasonic scaler handpiece

• Sandblasting handpiece

• Titanium alloy scaling tips, cleaning tips, root canal files

• Water bottle and powder tank

• PU air tube, O‑ring set, torque wrenches

• User manual and warranty card

Intended Use:

• Supragingival & Subgingival Scaling – Removal of calculus and plaque.

• Root Canal Irrigation – Cleaning and disinfection of root canals.

• Air Polishing – Removal of plaque, stains, and biofilm from tooth surfaces and implants.

• System Self‑Cleaning – Automated flushing of internal fluid and air pathways.

Contraindications & Warnings:

• Not for use on patients with hemophilia, pacemakers, or severe respiratory conditions (e.g., asthma, chronic bronchitis).

• Caution advised for cardiac patients, pregnant women, and young children.

• Operators with pacemakers should not use the device.

• Protective eyewear and masks are mandatory during sandblasting procedures.

Safety & Compliance:

• Equipment classification meets applicable medical safety standards.

• EMC compliant with YY0505‑2012; suitable for typical clinical electromagnetic environments.

• Environmental compliance with SJ/T‑11363‑2006; hazardous substance content in all homogeneous materials is below regulated limits.

Maintenance & Sterilization:

• Handpieces and accessories are sterilizable via steam autoclave (fractionated pre‑vacuum cycle recommended: 132–134 °C, 2.0–2.3 bar, ≥4 minutes).

• Detailed cleaning, disinfection, and drying protocols are provided for both manual and automated washer‑disinfector processes (compliant with EN ISO 15883).

• Regular inspection of tips, O‑rings, and filters is recommended to maintain performance.
