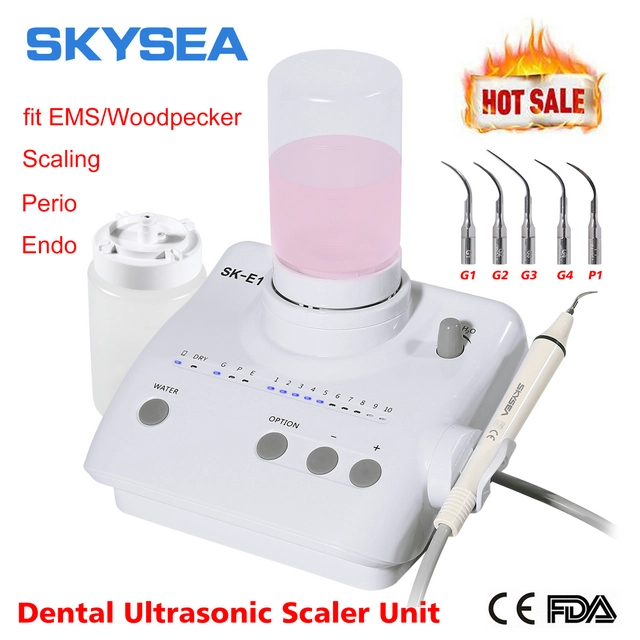

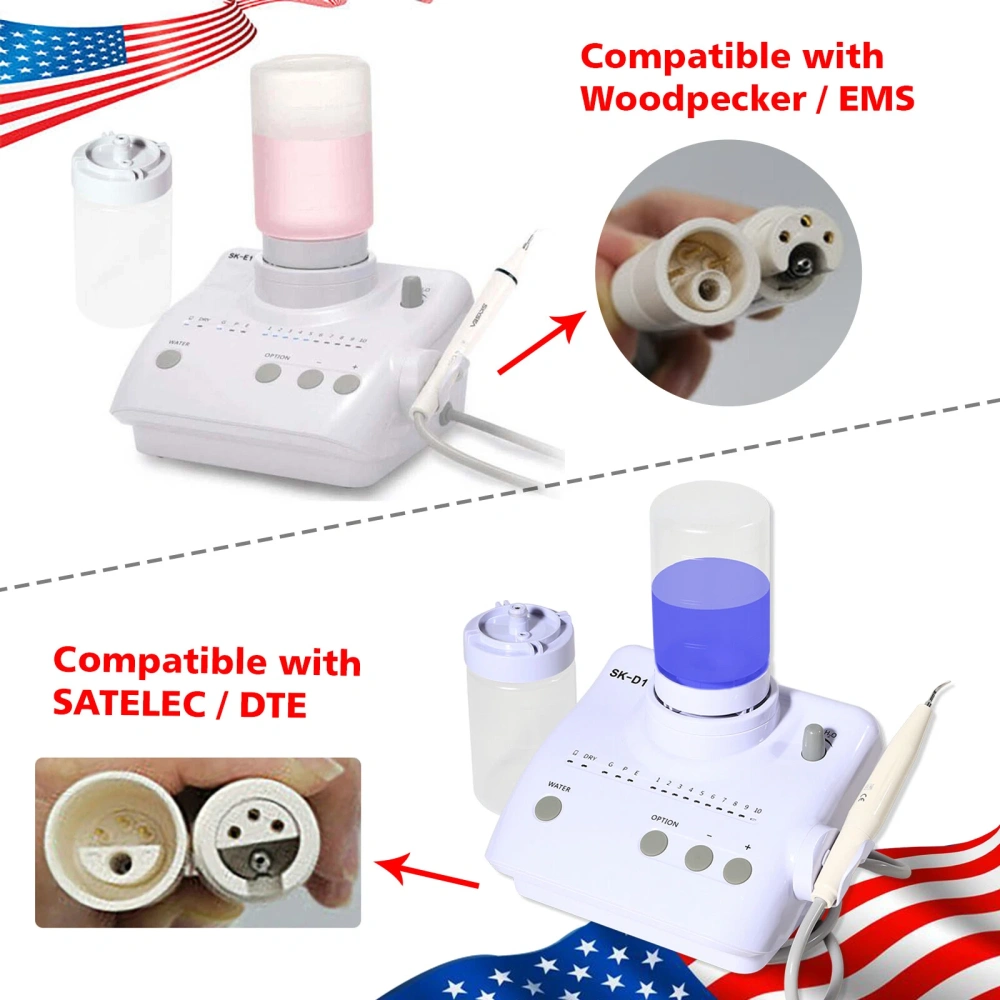

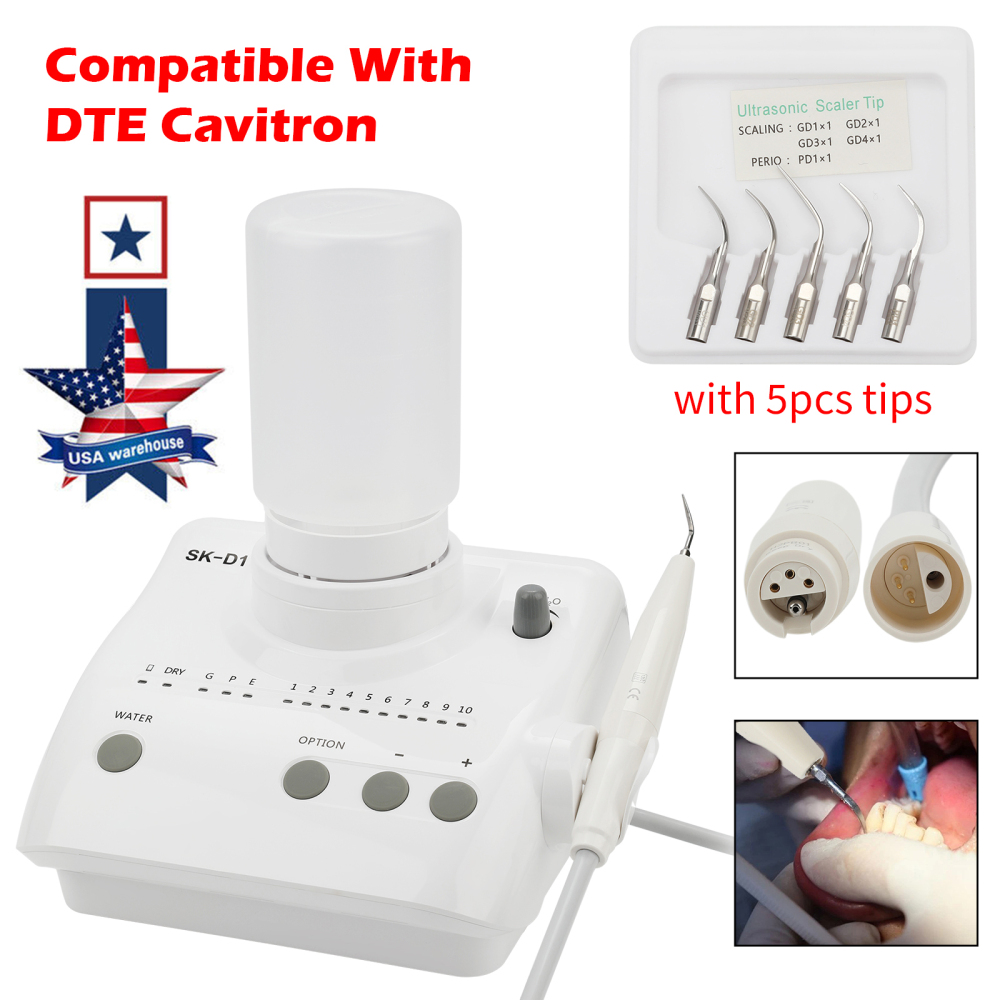

For Cavitron Dental Ultrasonic Scaler SKYSEA fit EMS Handpiece Tip+2 Bottles FDA

The main technical specifications

1.Voltage Transformer (please leave a message about which type you need, 110v or 220v)

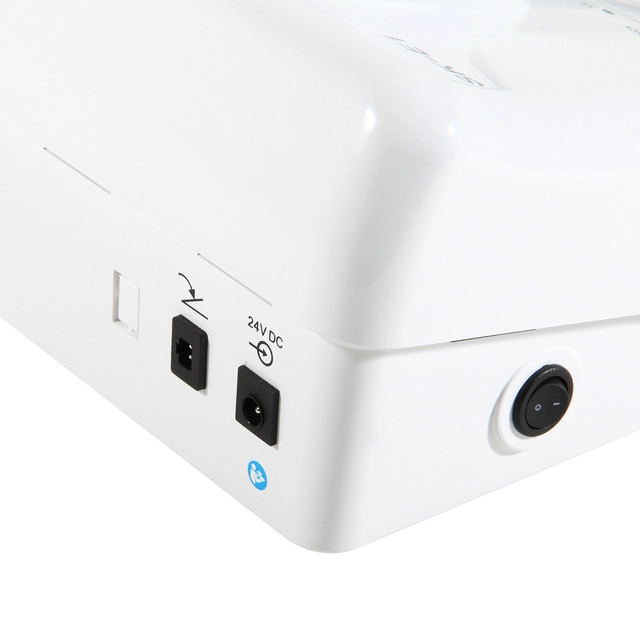

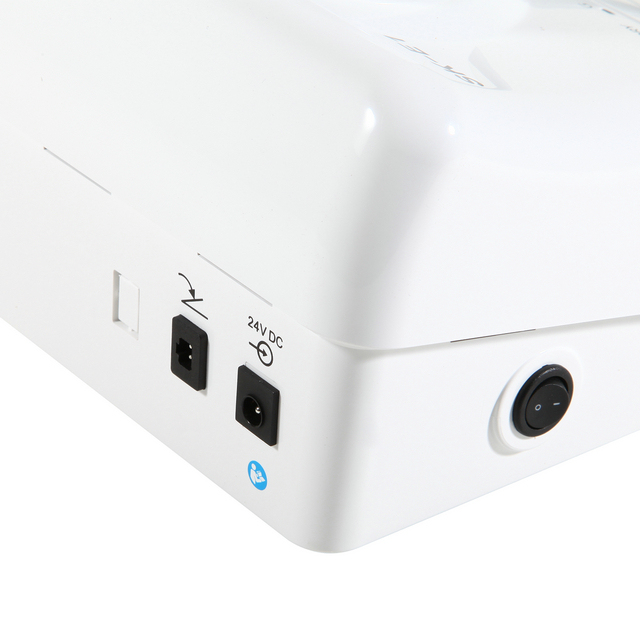

2.Main unit input:24V~    1.3A

3.Output primary tip vibration excursion:≤100m

4.Output half-excursion force:<2N

5.Output tip vibration frequency:28kHz±35Hz

6.Output power:3W to 20W

7.Main unit fuse:T1.6AL 250V

8.Adapter fuse:T0.5AL 250V

9.Weight of main unit:1.17g

10.Weight of adapter:1.2kg

11.Operating mode:Continuous operation

12.Type of protection against electric shock:Class II equipment

13.Degree of protection against electric shock:Type BF applied part

14.Degree of protection against harmful ingress of water:Ordinary equipment

15.Protection degree against water(used on the foot switch):IPX1

16.Applied part of the equipment:handpiece and tip

17.Degree of safety of application in the presence of a Flammable Anaesthetic Mixture with air or with Oxygen or Nitrous Oxide:

Equipment not suitable for being used in the presence of a flammable anaesthetic mixture with air or with oxygen or nitrous oxide.

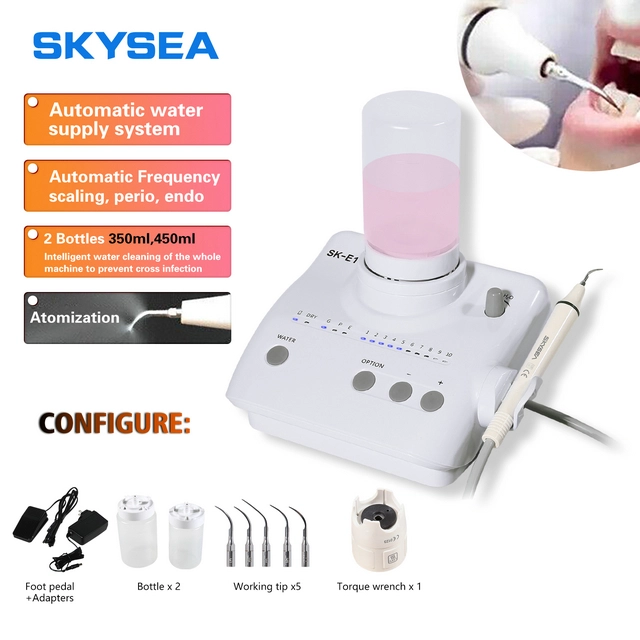

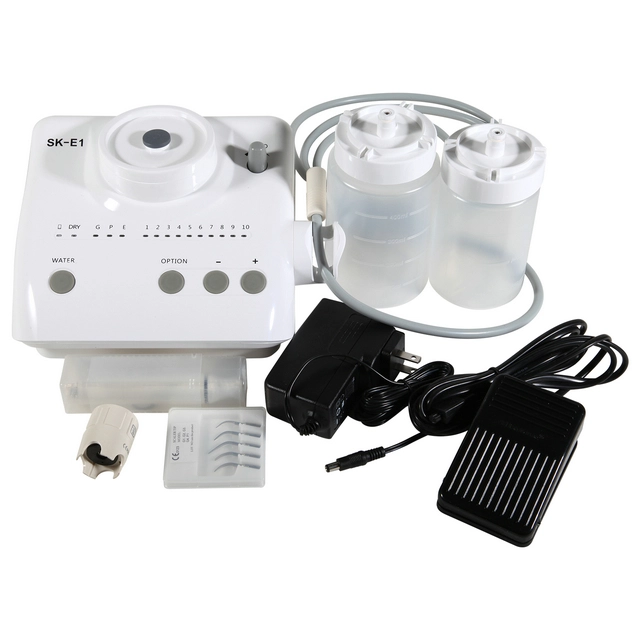

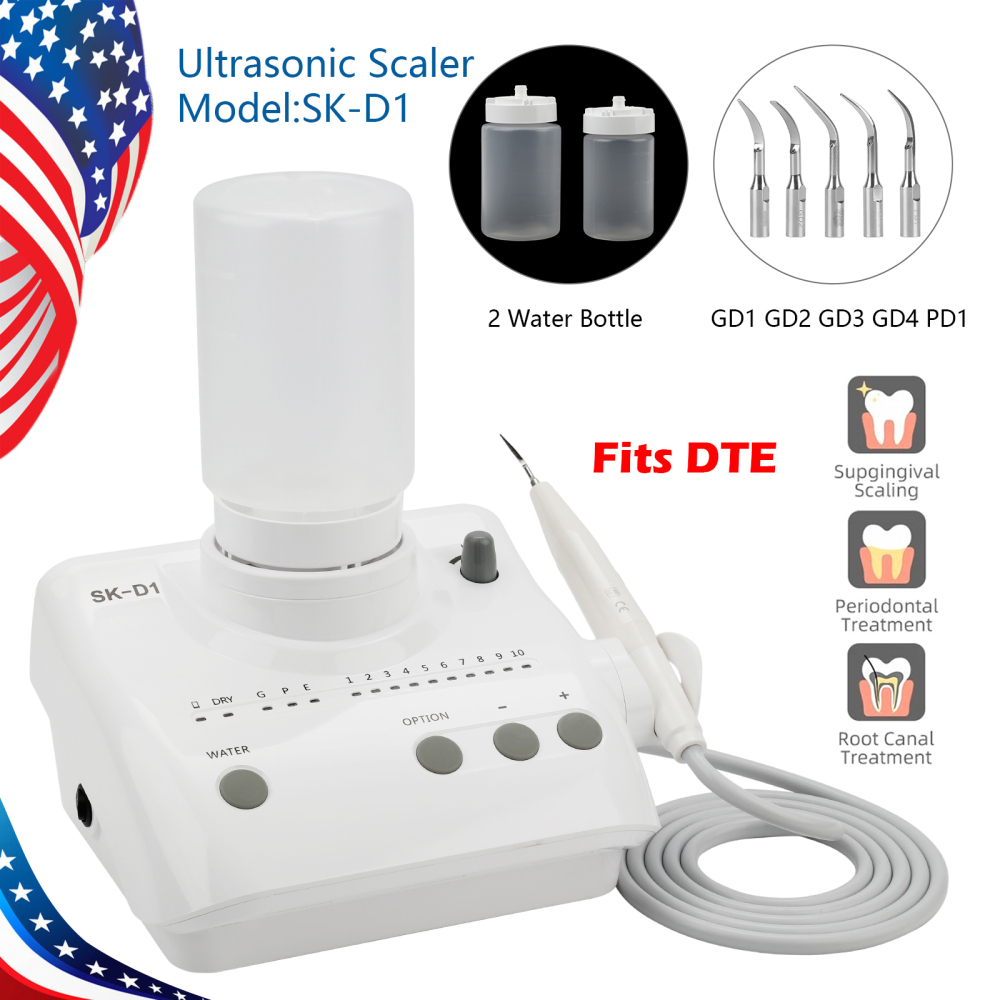

Packing List

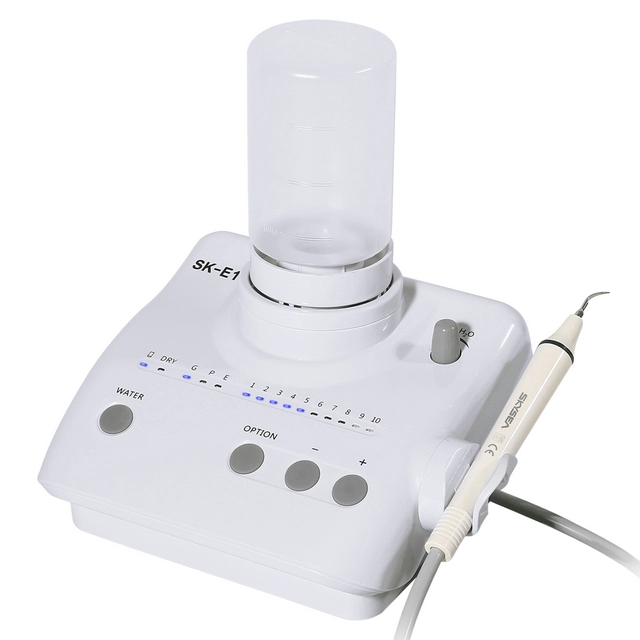

1.Main unit

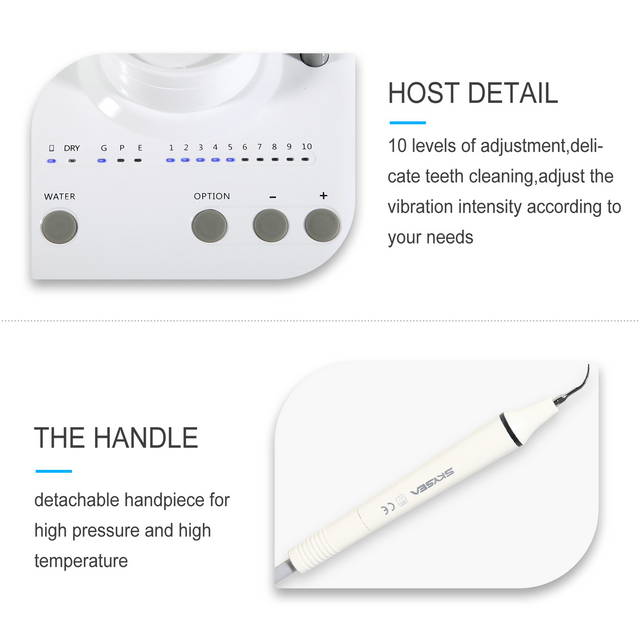

2.Detachable handpiece

3.Adapter of power supply

4.Foot switch

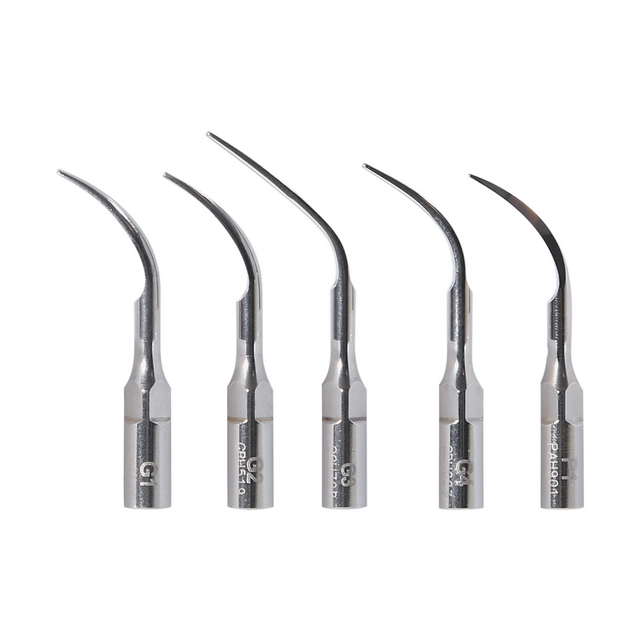

5.Scaling tip G1 G2 G3 G4 P1

6.Scaling tip Torque wrench

7.Handpiece decorative ring

8.Waterproof ’0” ring

9.Packing list

10.Instruction manual

11.Warranty card

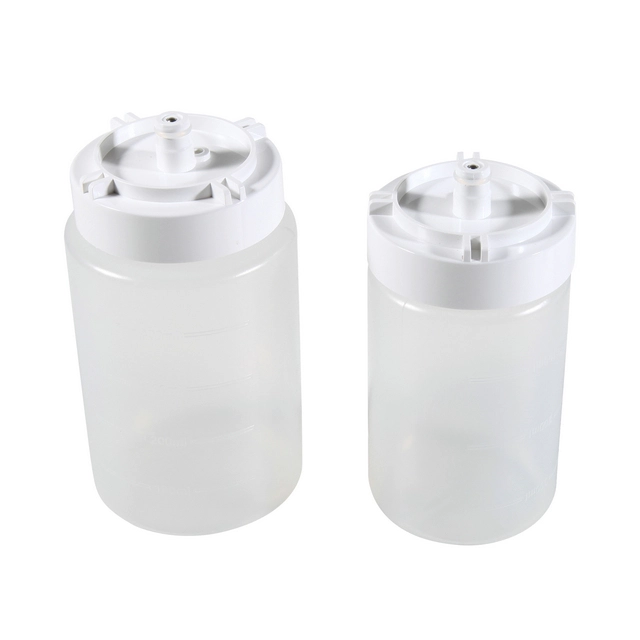

12.Reservoir(350ml)

13.Reservoir(450ml)
