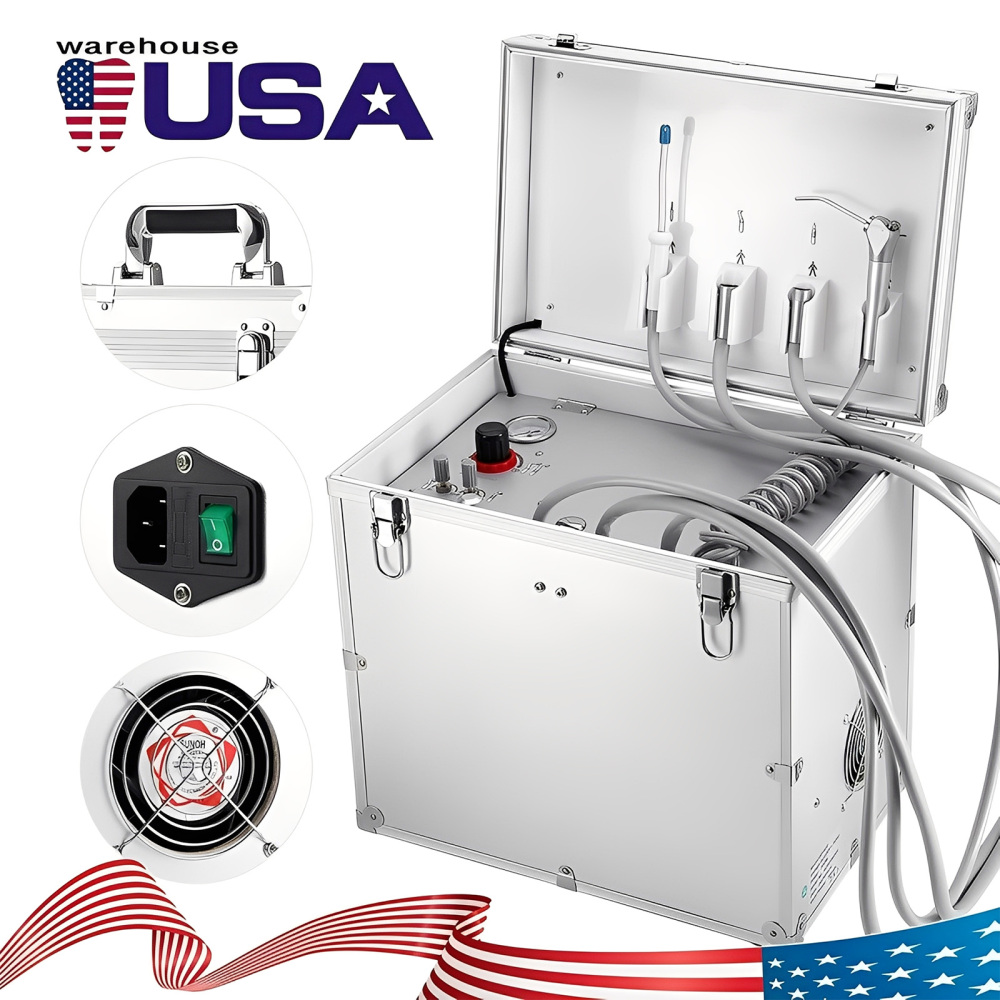

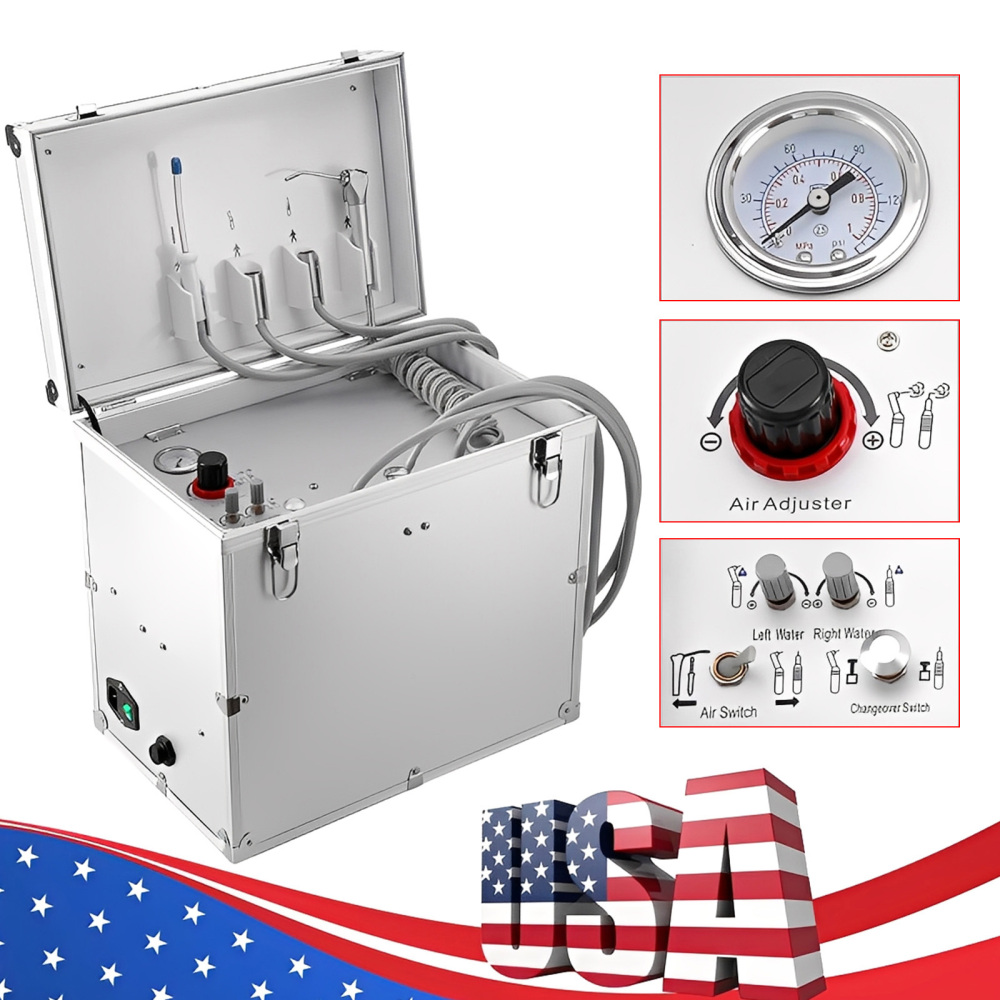

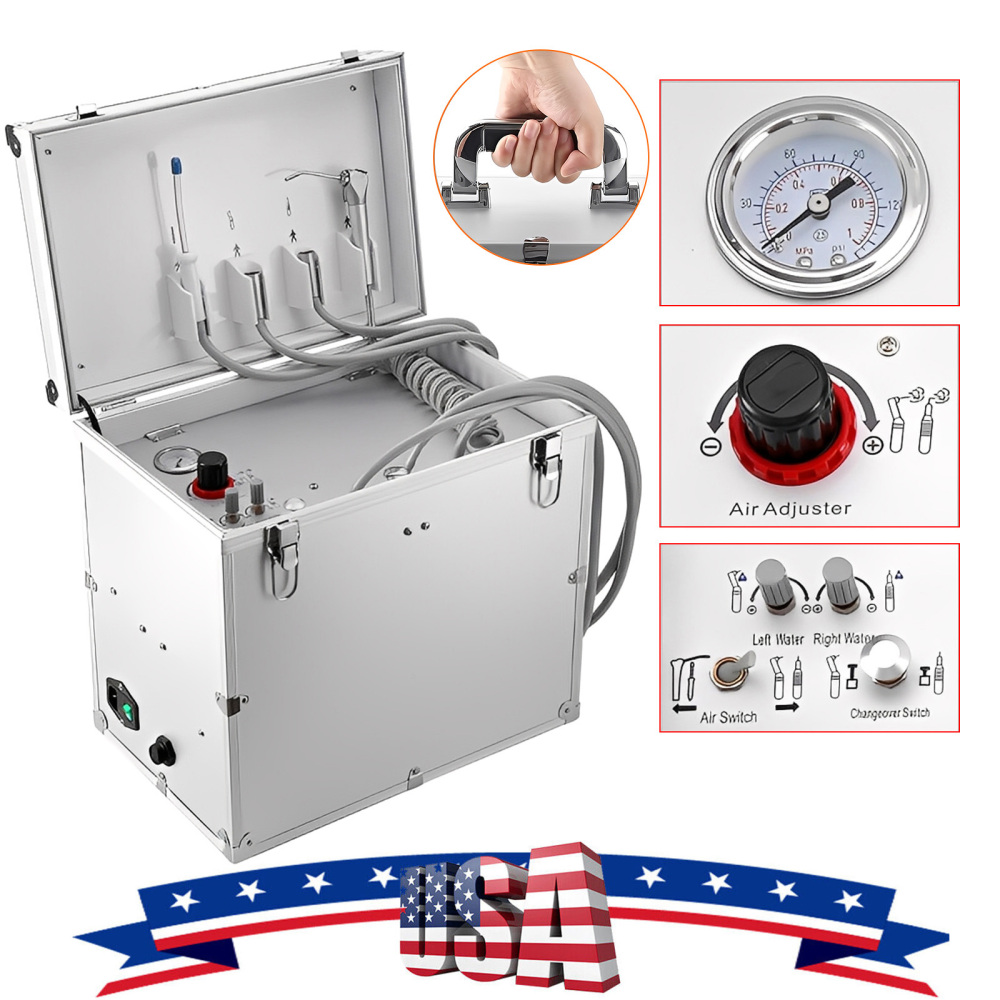

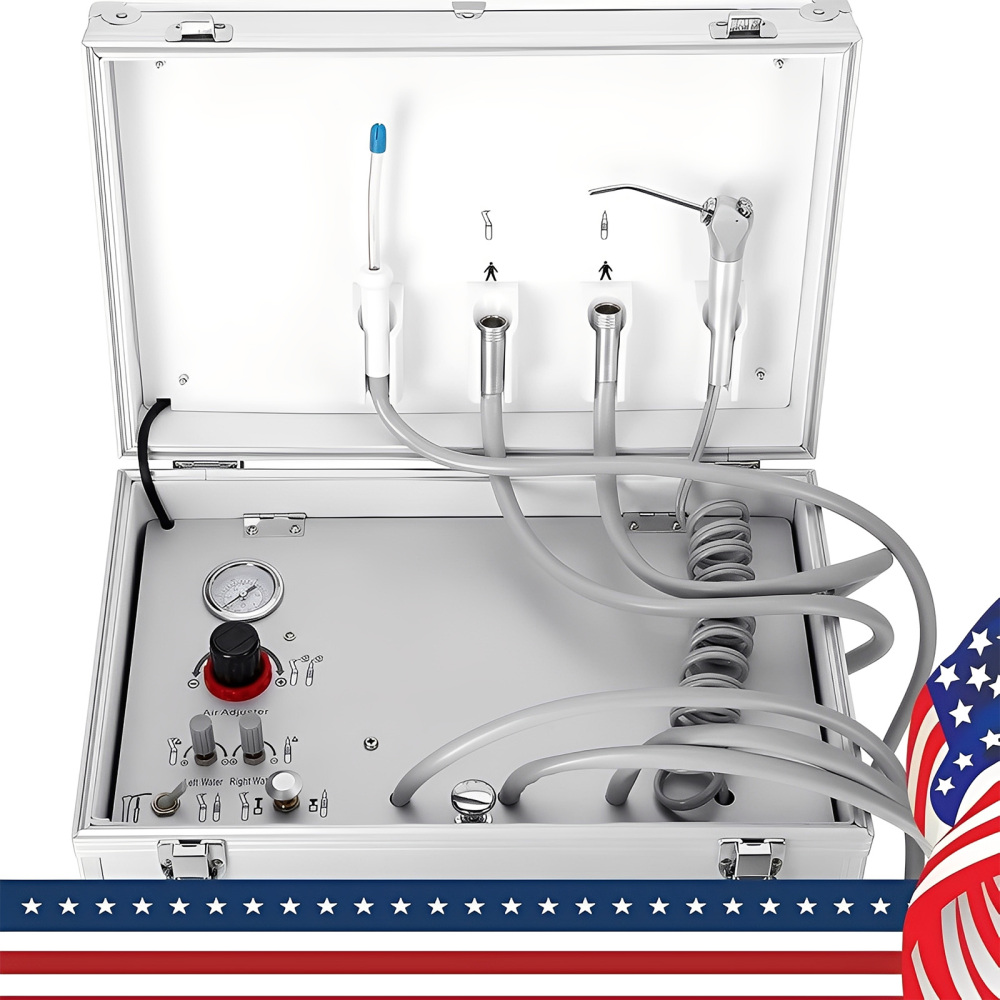

Portable Dental Delivery Unit with Air Compressor Suction System Mobile Box

SD-102

Technical data
Model:SD-102 Portable Dental Unit
Votalge: 110 V/60Hz,
Power:550W

Speed R.P.M:1400r/min
Air Flow:65L/min
Pressure:0.6Mpa
Net Weight:16Kgs
Gross Weight:19Kgs
Noise:40dB
Packing Size: 46*35*50cm

Note: This product is only suitable for 110V voltage, please do not use 220-240V voltage, as 220-240V will cause the machine to burn out.

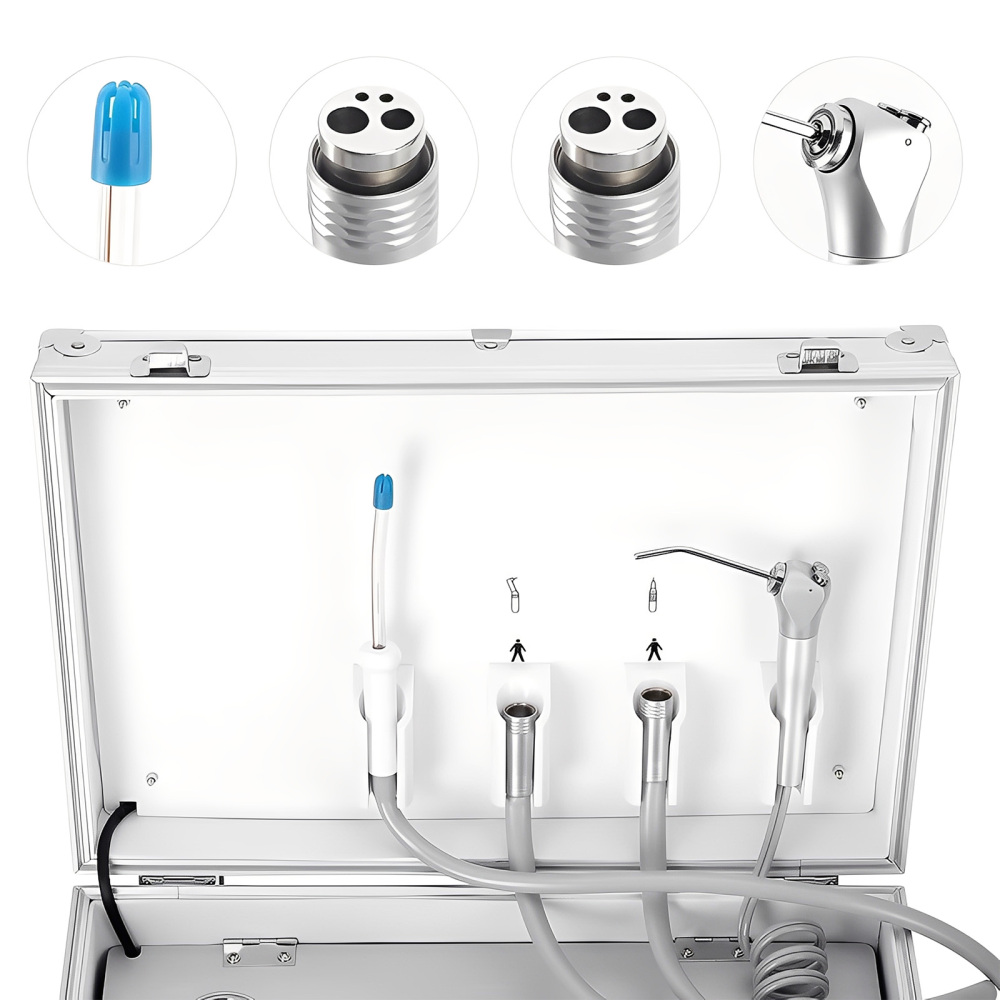

Standard Accessoiries：
Oiless Air Compressor Motor 1pc
3 Way-Springe 1pc
High Speed Handpiece Pipe 1pc
Low Speed Handpiece Pipe 1pc
High Suction(Ajust) 1pc
Water Bottle 1pc
Drain Bottle 1pc
Foot Control 1pc

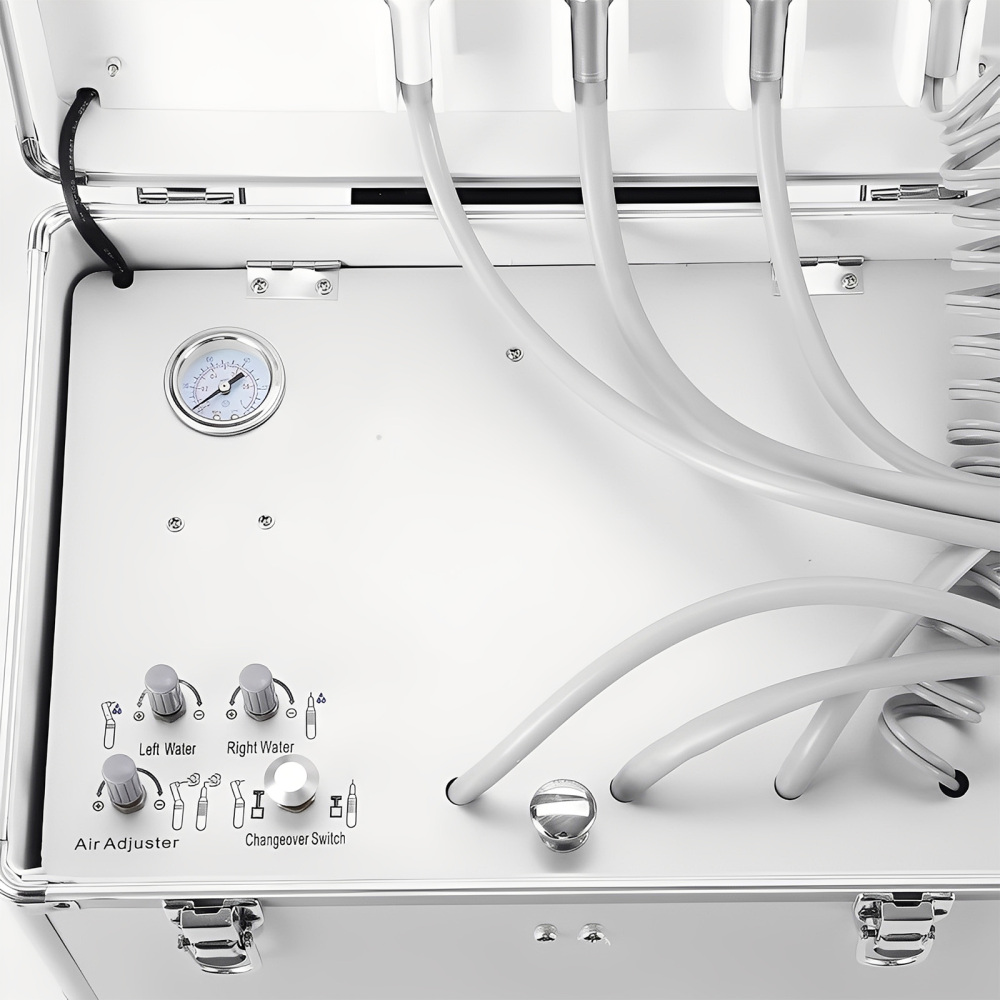

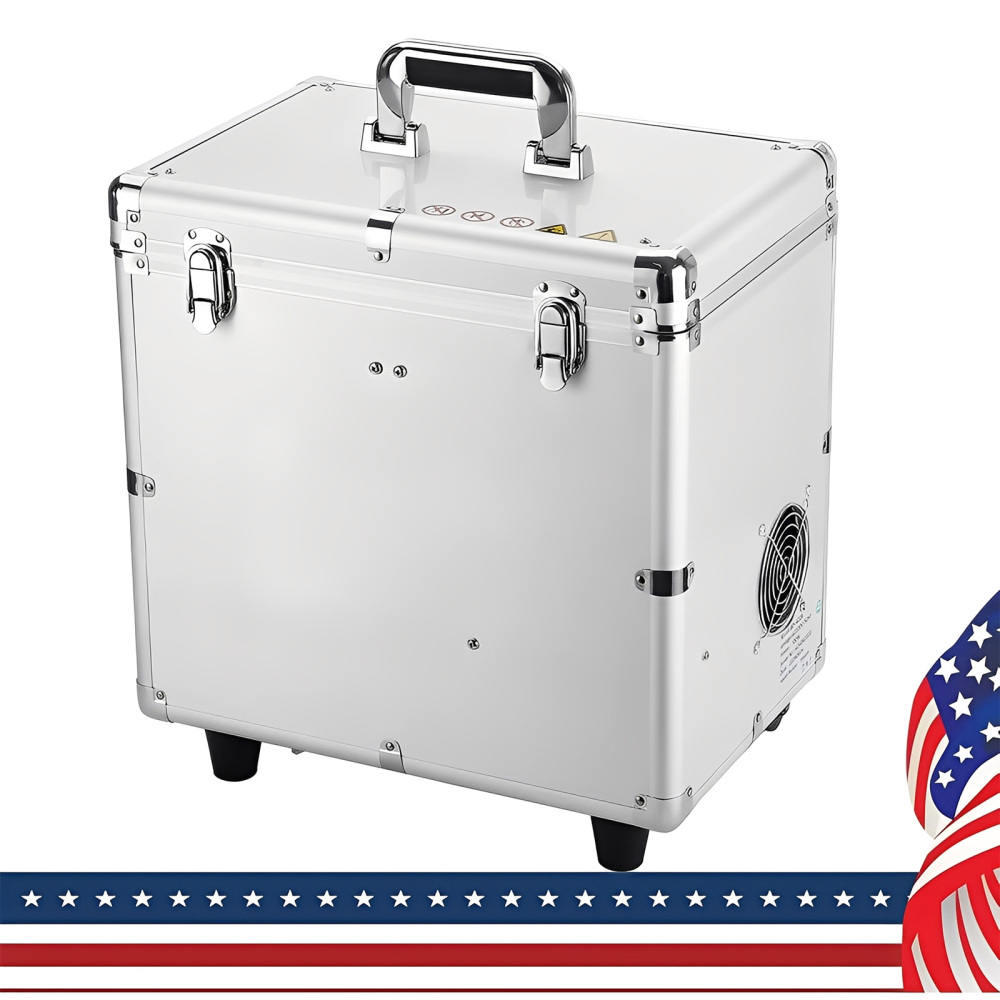

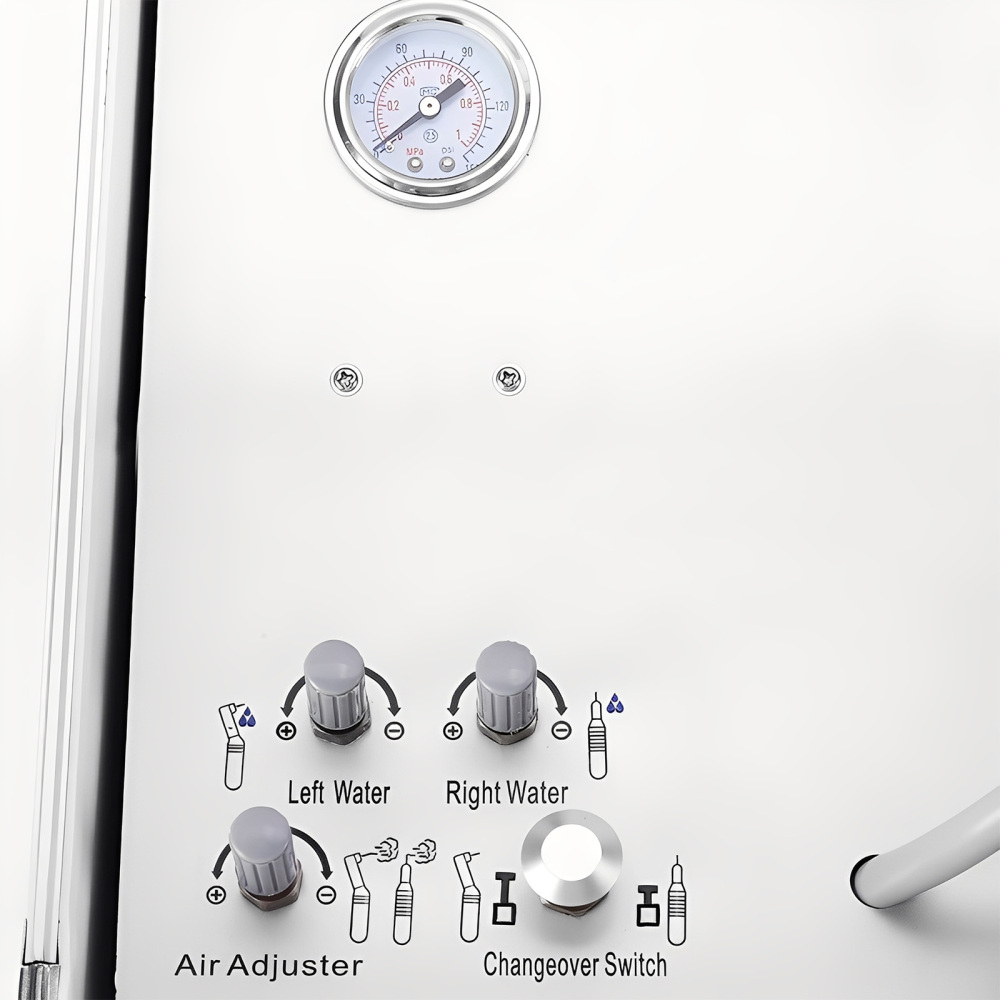

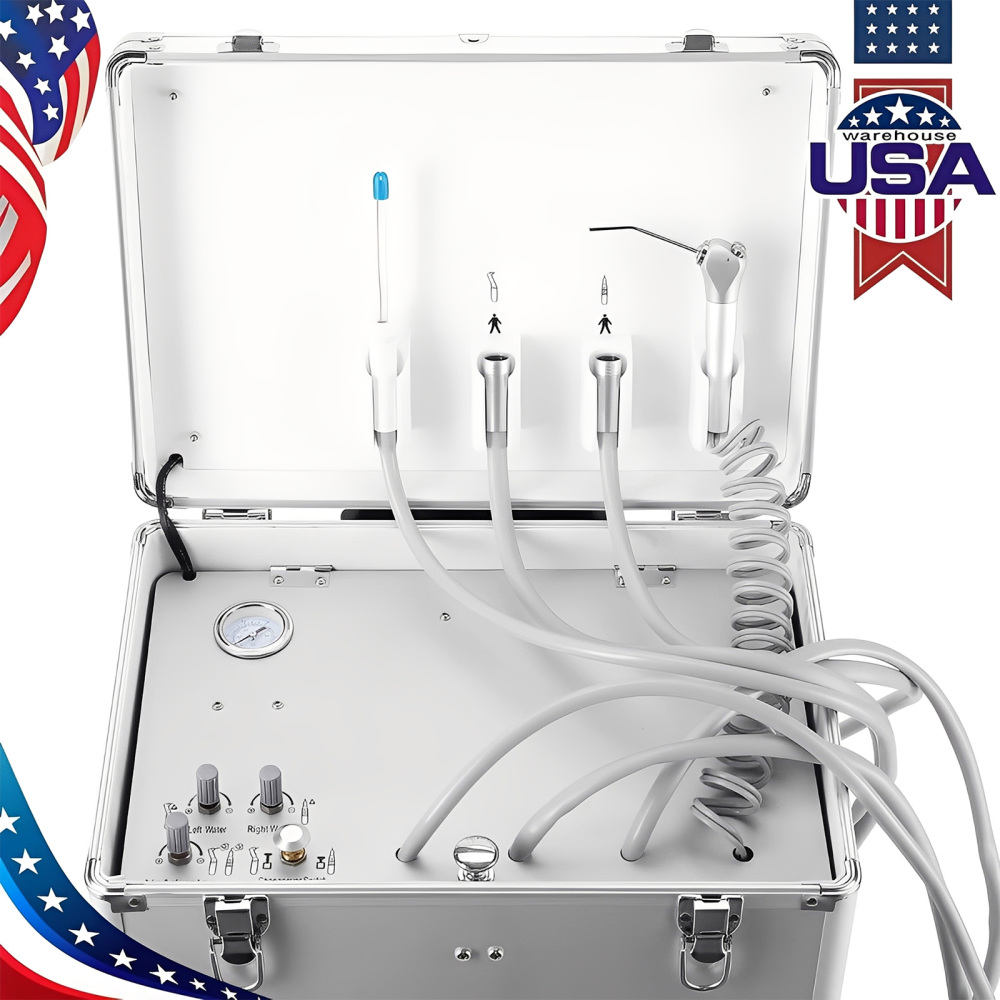

SD-102A

Note: This product is only suitable for 110V voltage, please do not use 220-240V voltage, as 220-240V will cause the machine to burn out.

Only 4 Holes.

Product Features

Aluminum alloy frame box makes the product stronger.

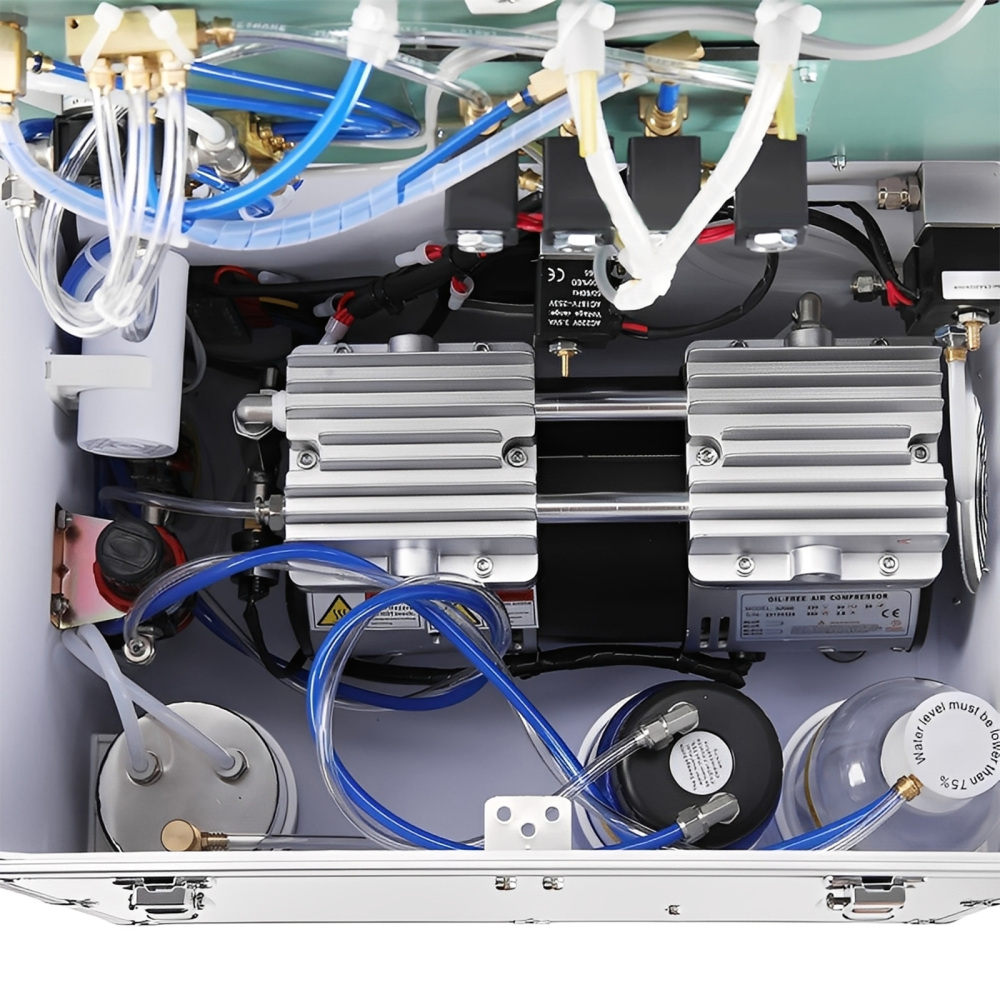

Built-in stainless steel air tank with automatic air circulation.

can be easily transported with pull-out handle and wheels.

Sniffer gun and Three Way Syringe can be started after being removed without stepping on the foot control .

Handpiece tube adopts electronic control technology. When the footswitch stops, the Handpiece will immediately stop spinning.

Evacuation System and the Handpiece cannot work at the same time. Single use only

Technical data

Model: SD-102A

Supply Pressure: 110V/60Hz

Power: 550W

Speed R.P.M: 1400r/min

Air Flow: 130L/min

Pressure: 0.8Mpa

Noise : 40dB(A)

Weight: 23Kgs

Dimension: 49*38*52 cm

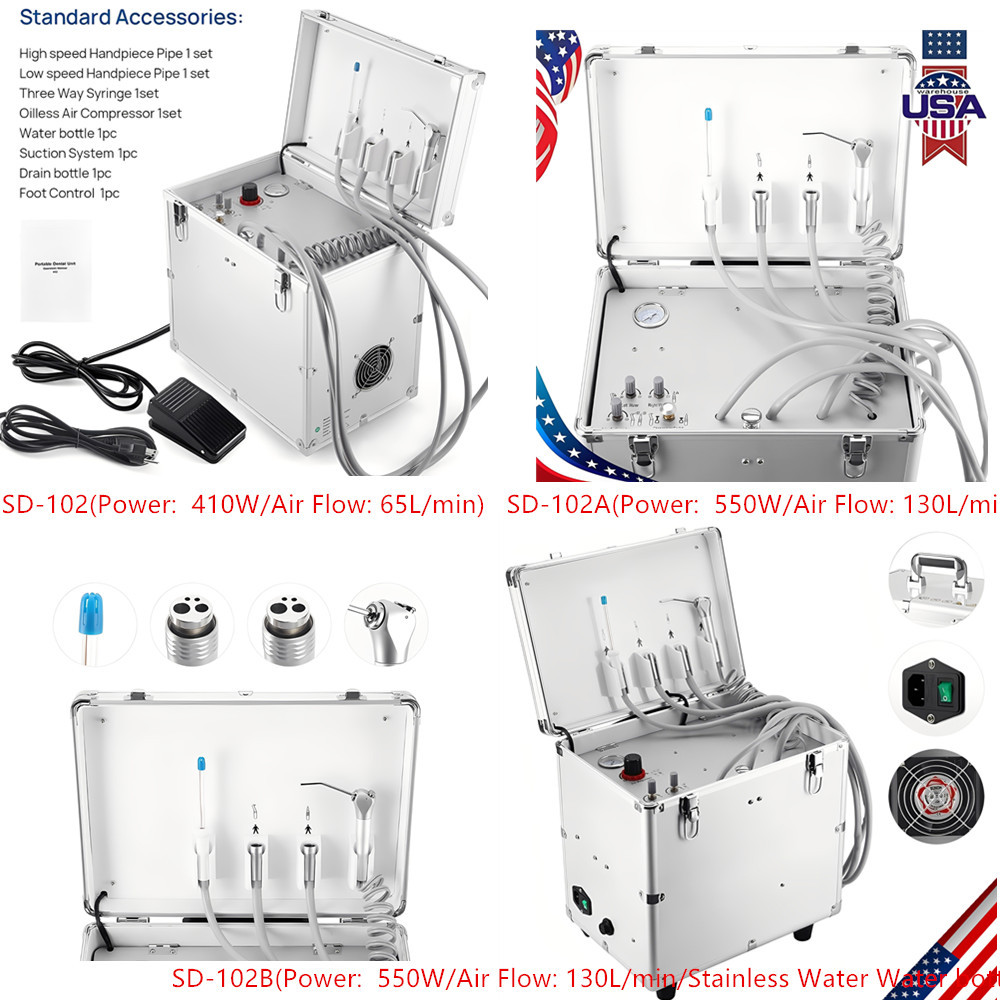

Standard Accessoiries：

High speed Handpiece Pipe 1 set

Low speed Handpiece Pipe 1 set

Three Way Syringe 1set

Oilless Air Compressor 1set

Water bottle 1pc

Suction System1pc

Drain bottle 1pc

Foot Control 1pc

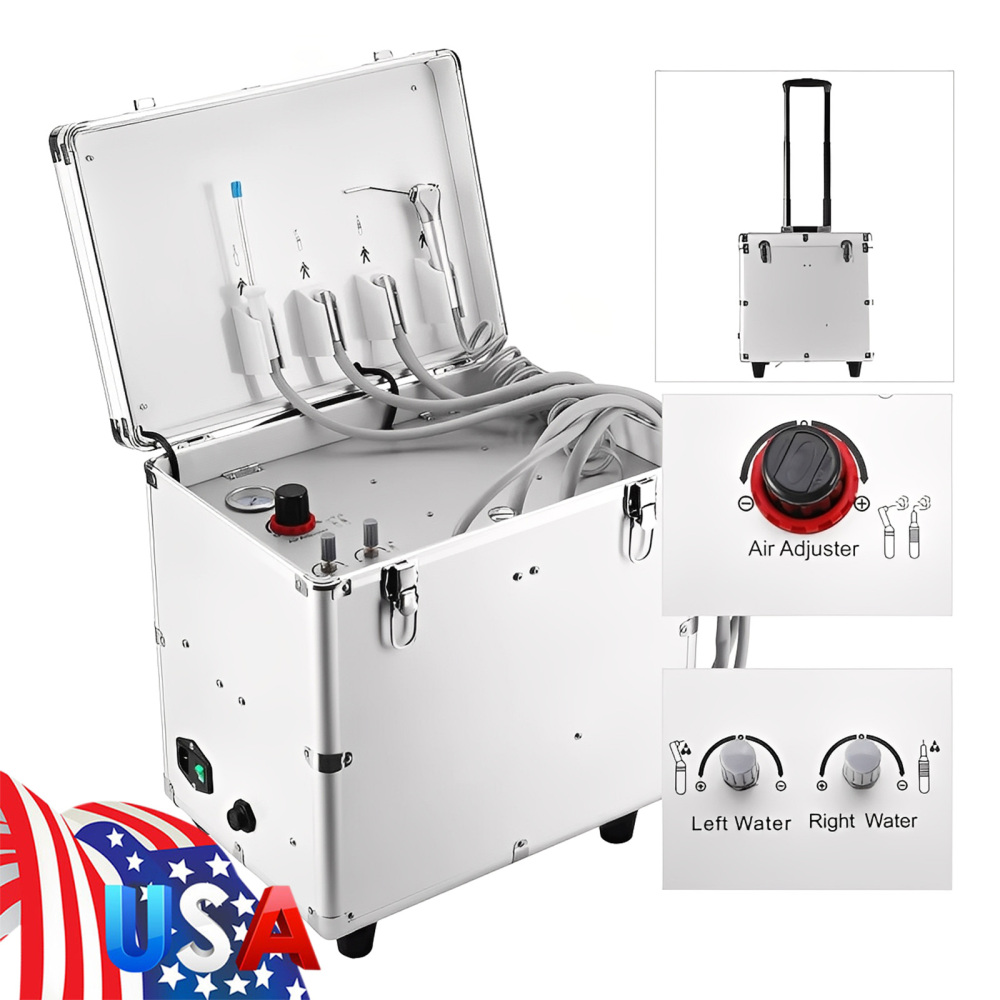

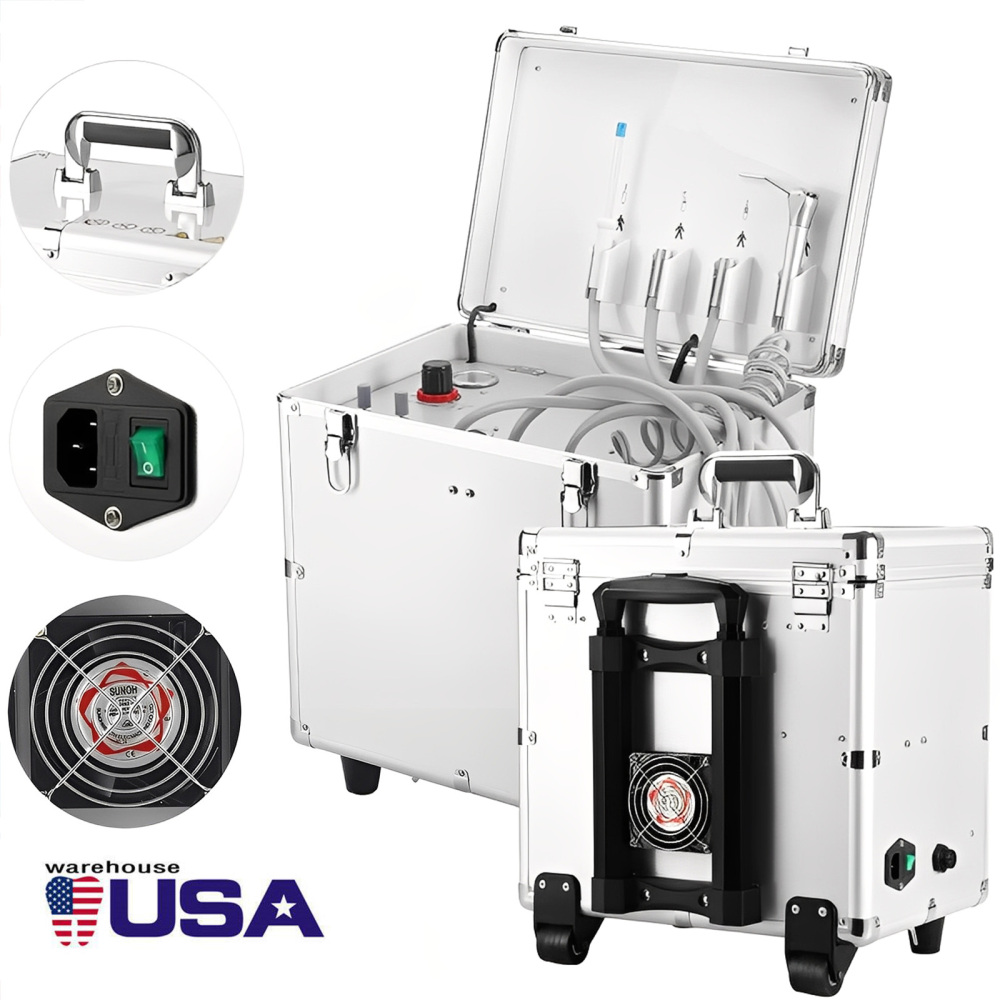

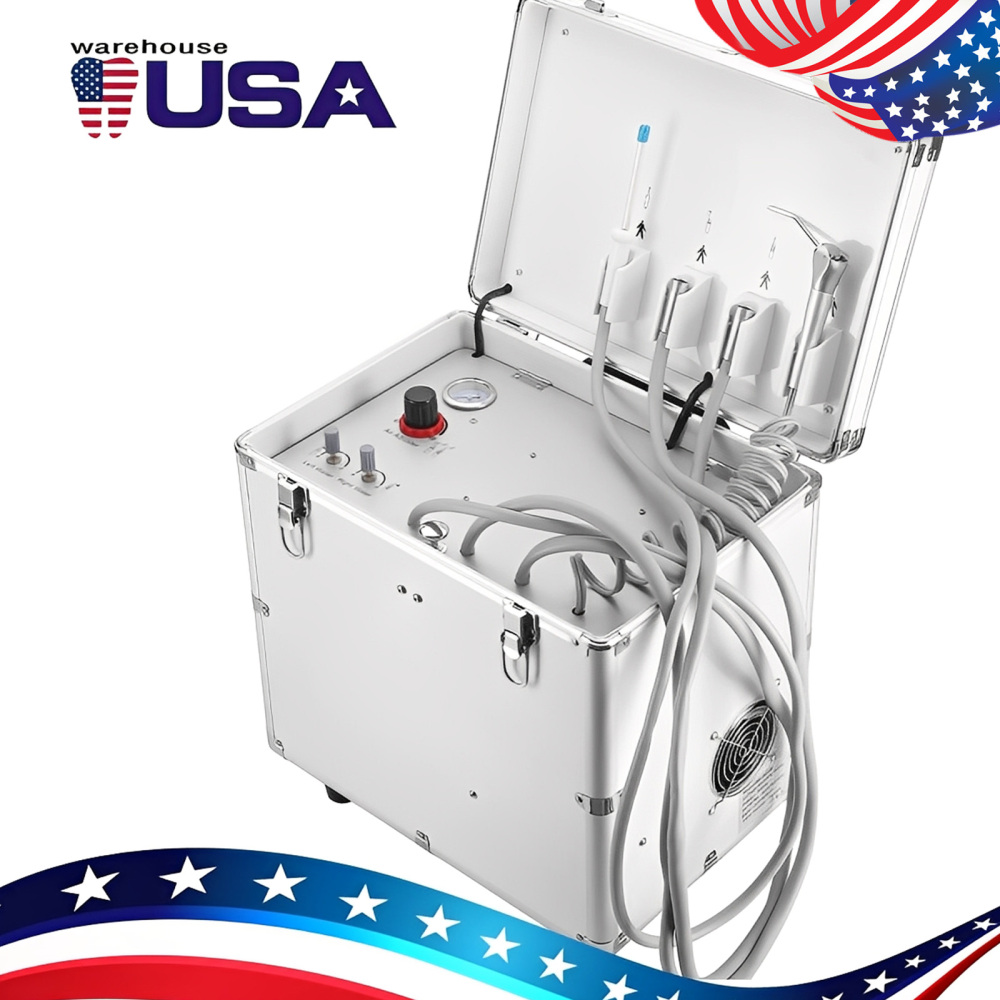

SD-102B

Note: This product is only suitable for 110V voltage, please do not use 220-240V voltage, as 220-240V will cause the machine to burn out.

Model: SD-102B

Supply Pressure: 110V/60Hz,

Power: 550W

Speed R.P.M: 1400r/min

Air Flow: 130L/min

Pressure: 0.8Mpa

Noise : 40dB(A)

Weight: 24Kgs

Dimension: 49*38*52 cm

Standard Accessories:

High speed Handpiece Pipe 1 set

Low speed Handpiece Pipe 1 set

Three Way Syringe 1set

Oilless Air Compressor 1set

Stainless Water Water bottle and Air Tank 1set

Suction System1pc

Drain bottle 1pc

Foot Control 1pc
