(Mini Clean)
1. Main structure and purpose

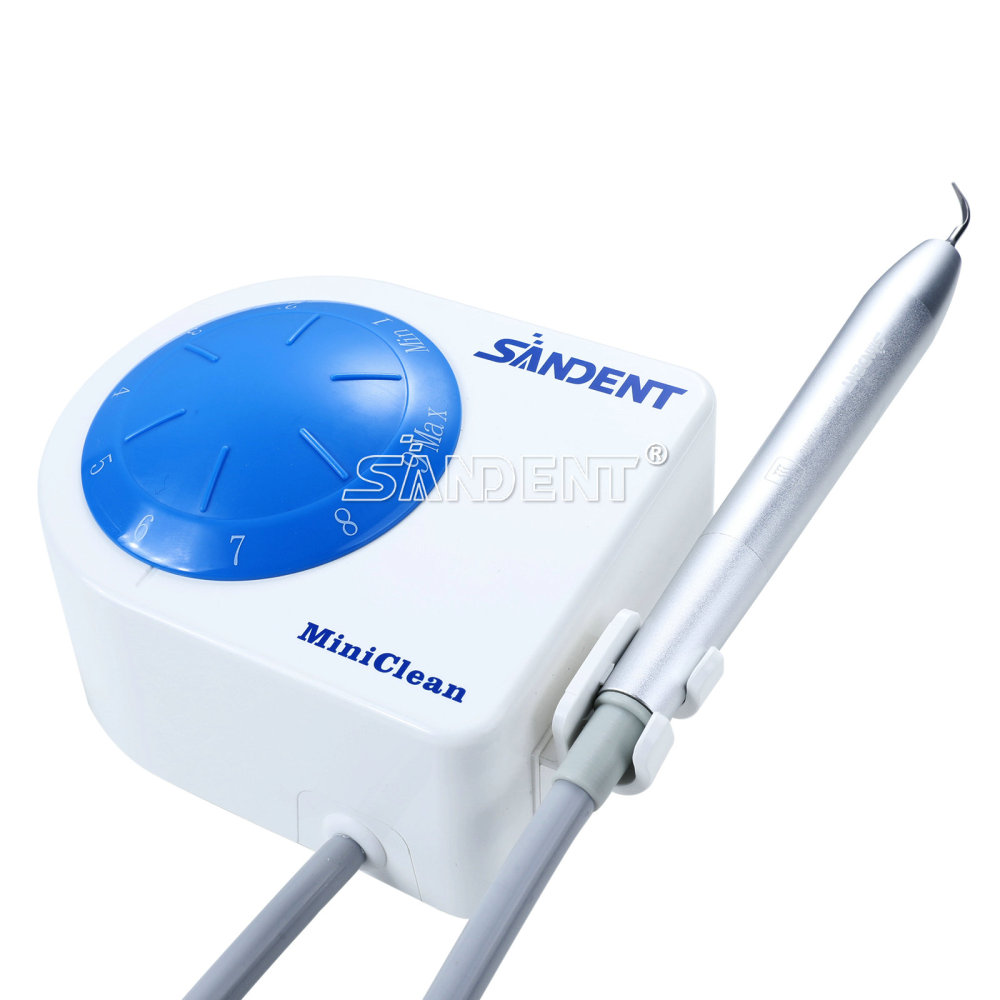

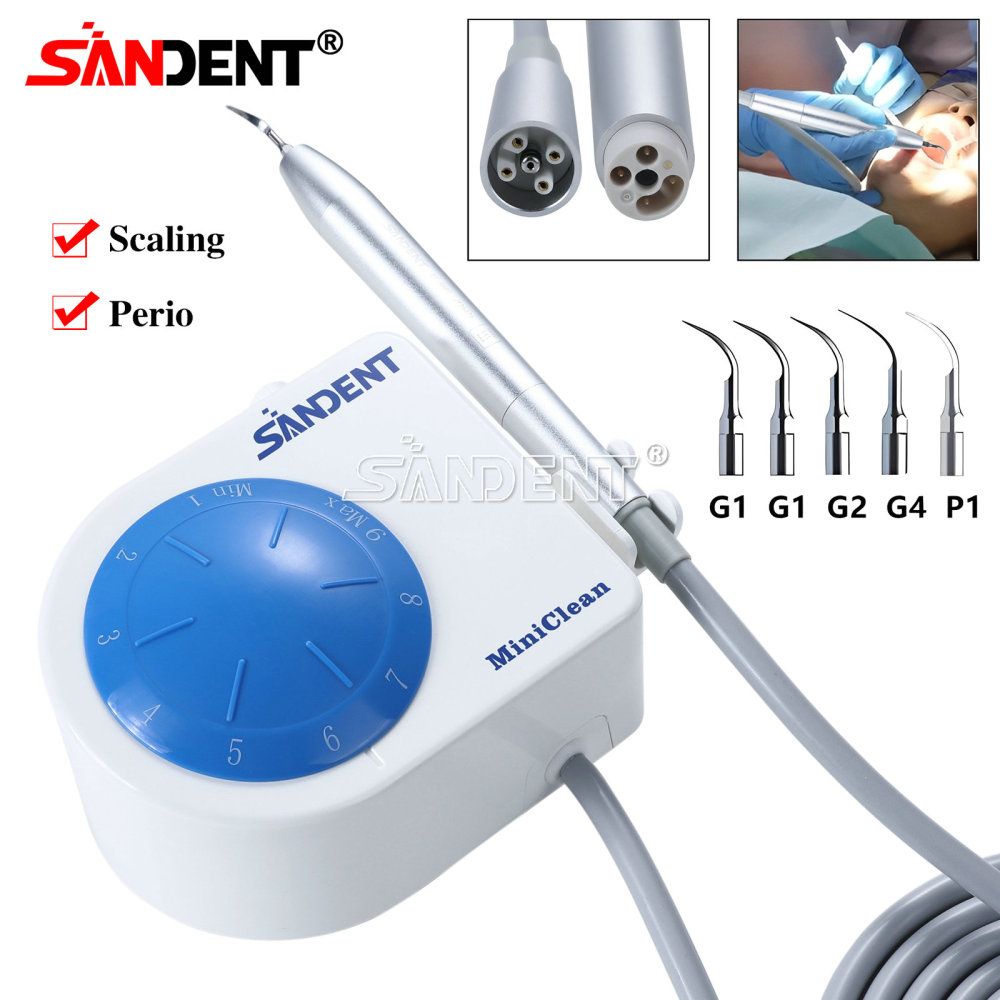

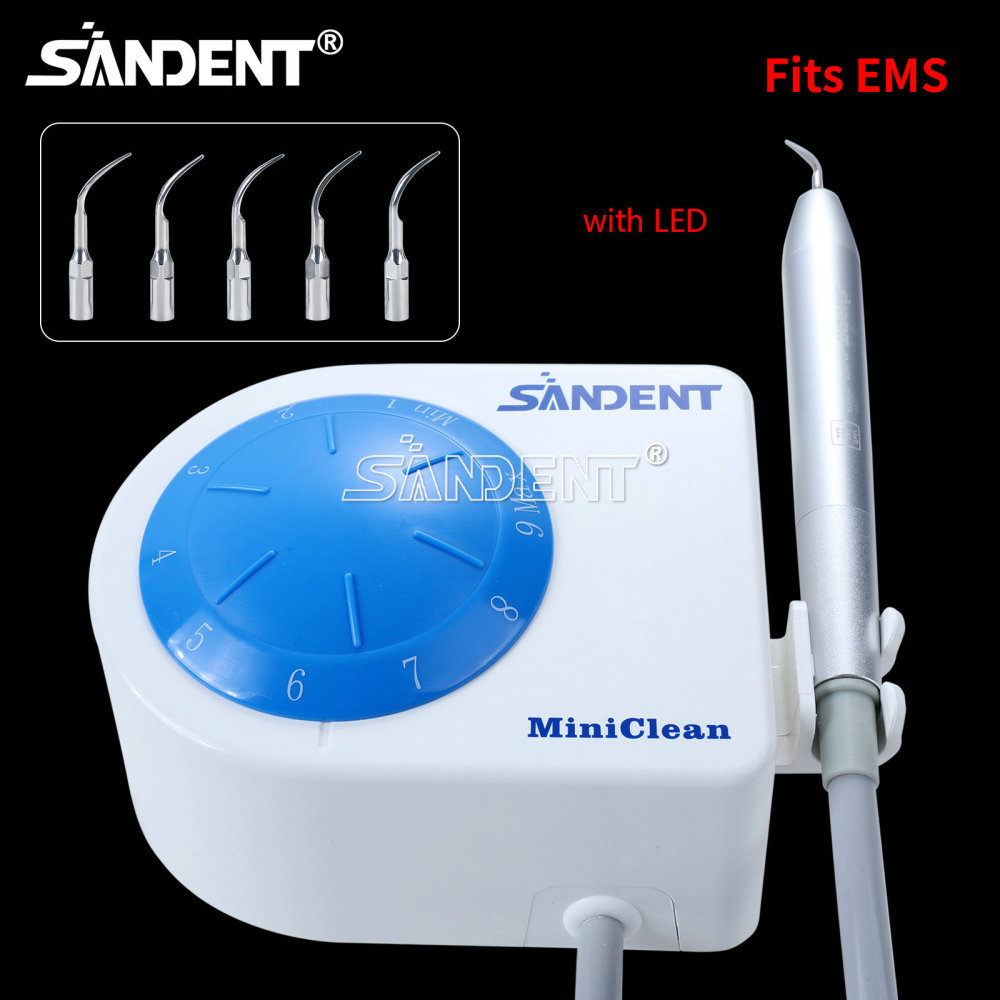

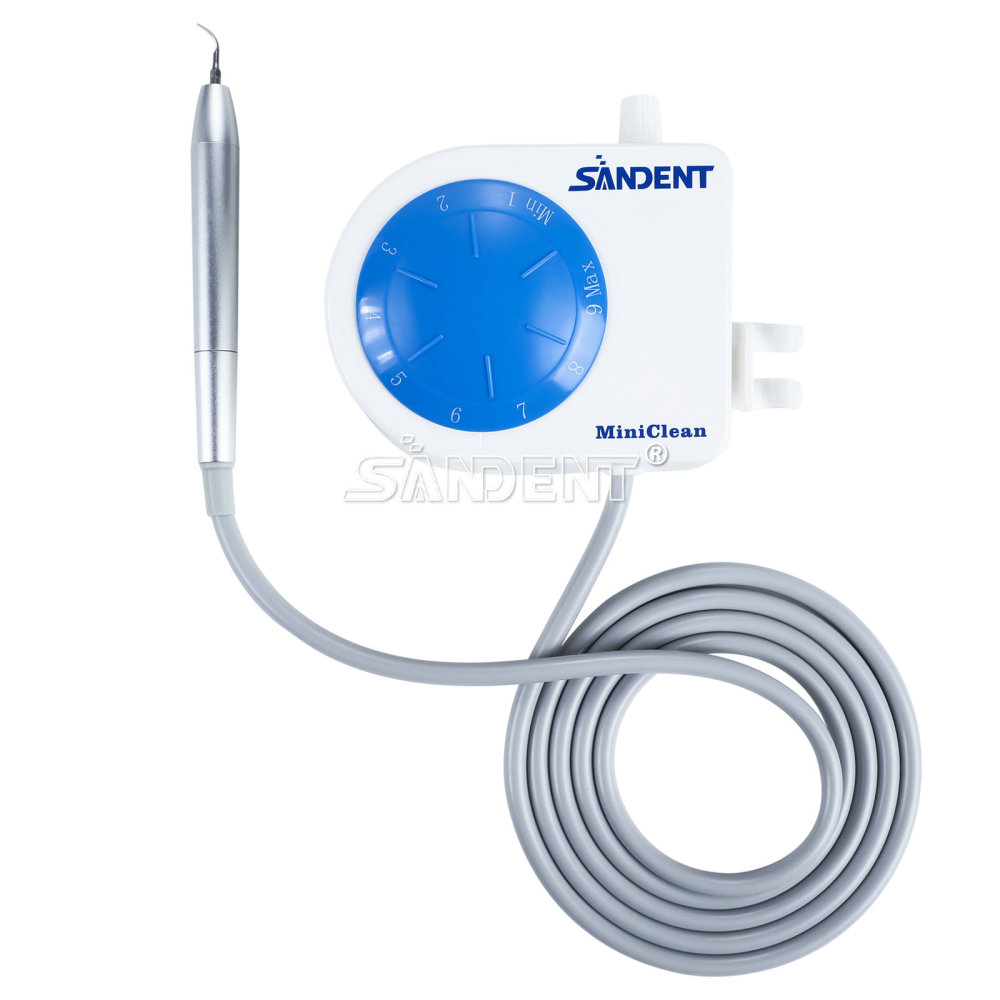

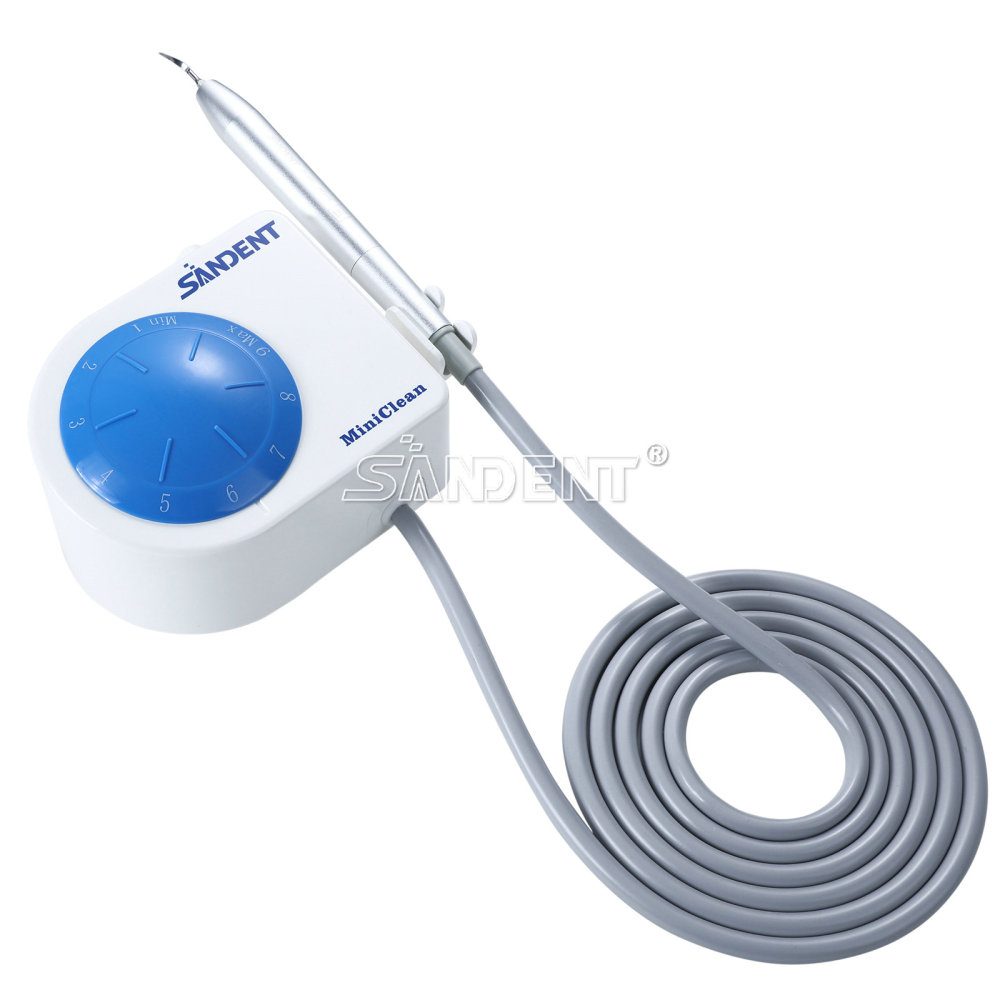

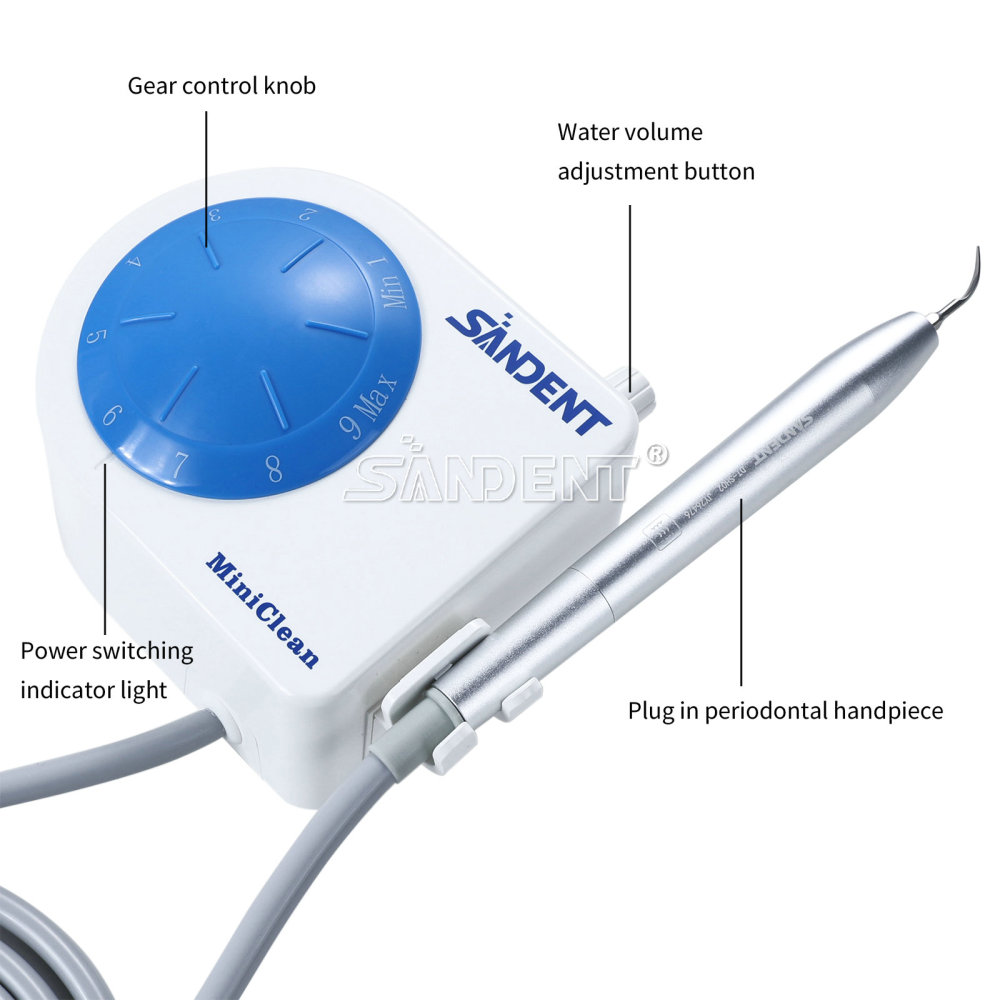

Ultrasonic dental cleaning machine is composed of a main unit,a

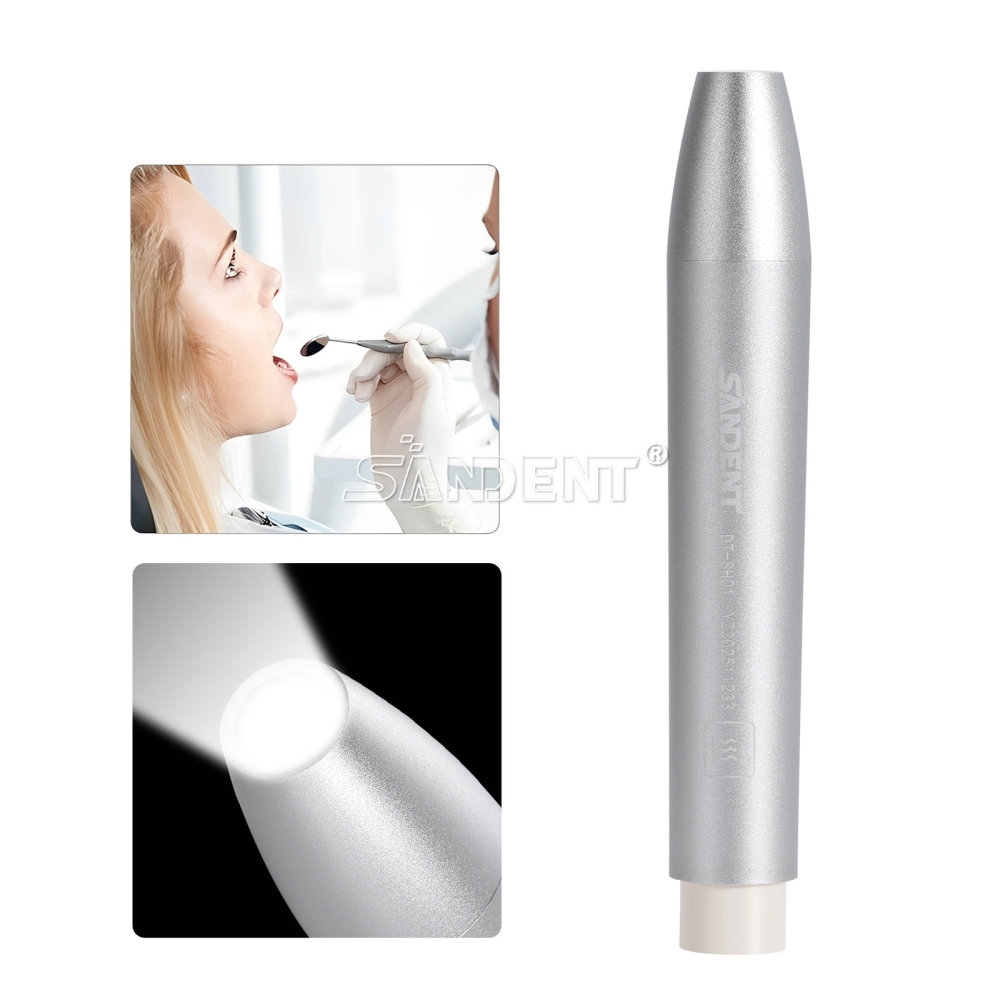

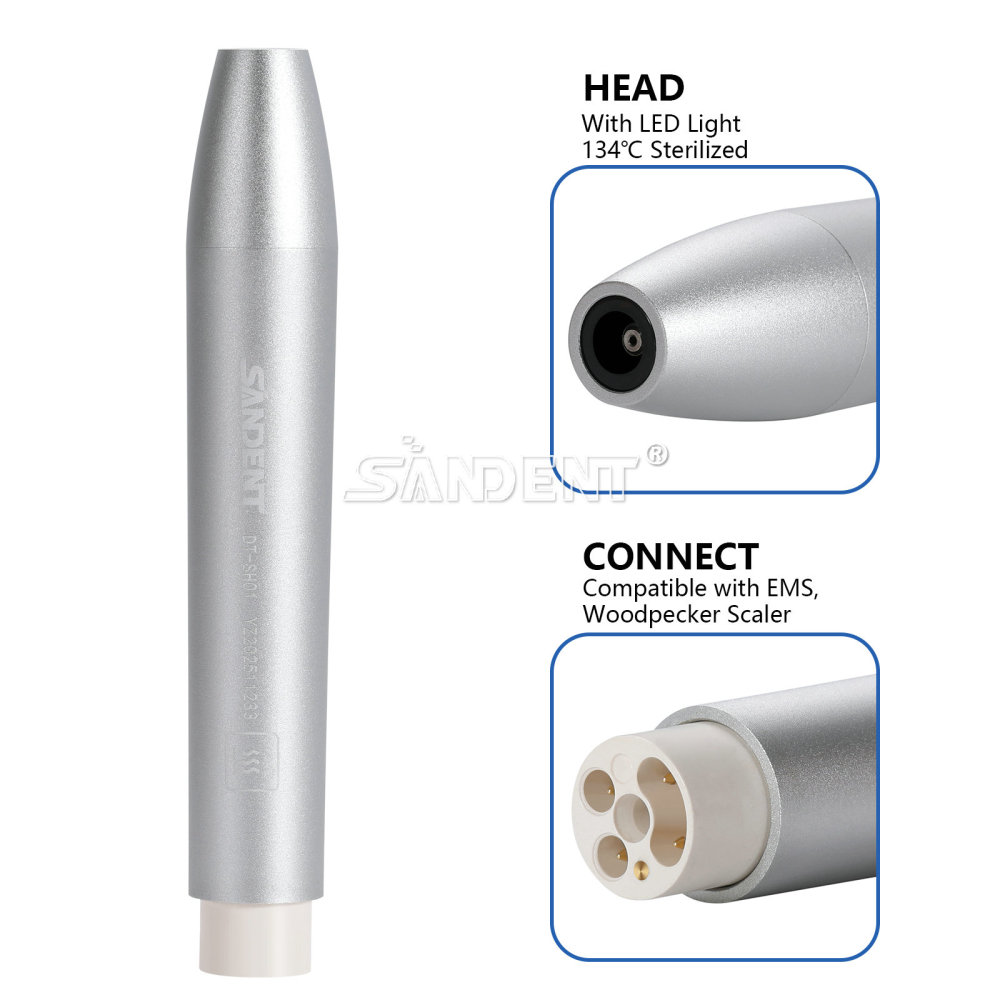

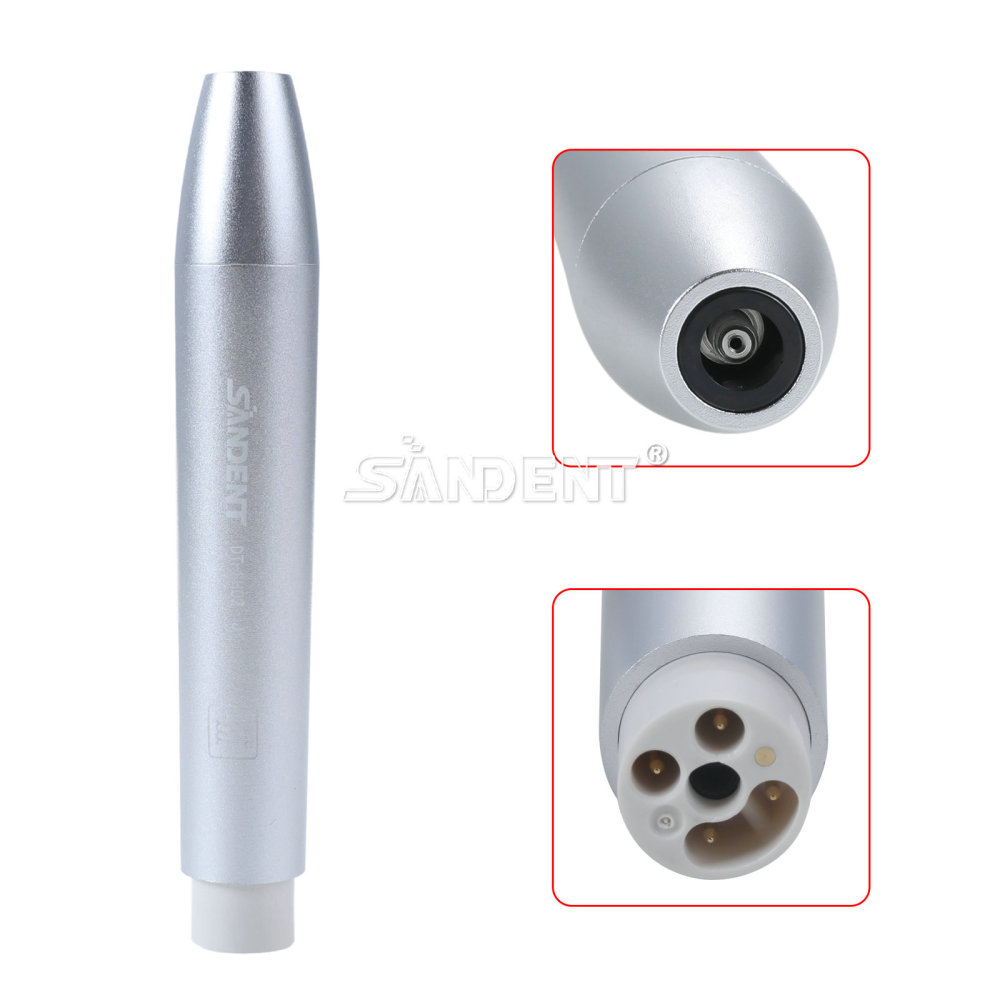

handpiece, a working tip, a power adapter, and a foot switch.It uses the
cavitation effect generated by the ultrasonicvibration of the working tip to
remove tartar,plaque,smoke,and tea stains from teeth.The Miniclean
ultrasonic dental cleaning machine has the functions of teeth cleaning,
periodontalcleaning,anddentalcleaningatthesametime.
2. Functional parameters and environmental requirements
2.1 Equipment safety classification
Classified by operating mode: continuous operation
Classified by type of electric shock prevention: Class II equipment
Classified by degree of electric shock prevention: BF type application
partThedegreofprotecionagainstliquidingress:odinaryequipment
(IPXO), foot switches are drip proof cquipment (IPX1). The safety level
when used in the presence of flammable anesthetic gases mixed with air or
oxygen or nitrous oxide: equipment that cannot be used in the presence of
flammable anesthetic gases mixed with air or oxygen or nitrous oxide.
2.2 Technical parameters
|
Power input
|
~110V,60Hz
|
|
Host input
|
~24V,1.3A
|
|
Input power
|
38VA
|
|
Work tip offset
|
1 μm~100 μm
|
|
Root canal tip offset
|
<2mm
|
|
Half offset force
|
0.1N~2N
|
|
Operating frequency
|
30±3kHz
|
|
Host insurance
|
F1.6AL250V
|
|
Power insurance
|
T0.5AL250V
|
2.3 Environmental conditions
a、Transportation and storage environmental conditions
|
ambient temperature
|
-10℃-50℃
|
|
relative humidity
|
<80%
|
|
atmospheric pressure
|
70kPa~106kPa
|
b 、Working environment conditions
|
ambient temperature
|
-10℃-50℃
|
|
relative humidity
|
30%-80%
|
|
atmospheric pressure
|
70kPa~106kPa
|
|
Suggested water temperature
|
<25℃
|
|
Water pressure at the inlet
|
0.01MPa-0.5MPa
|
