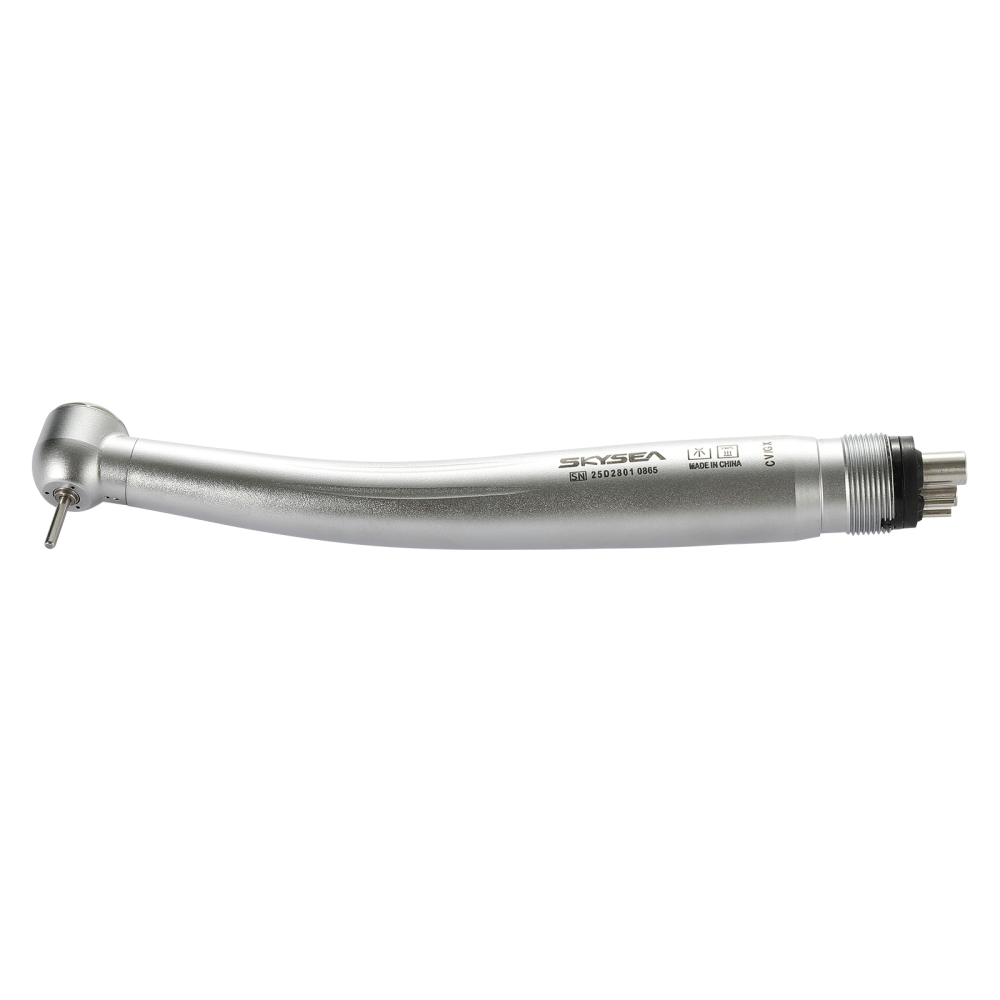

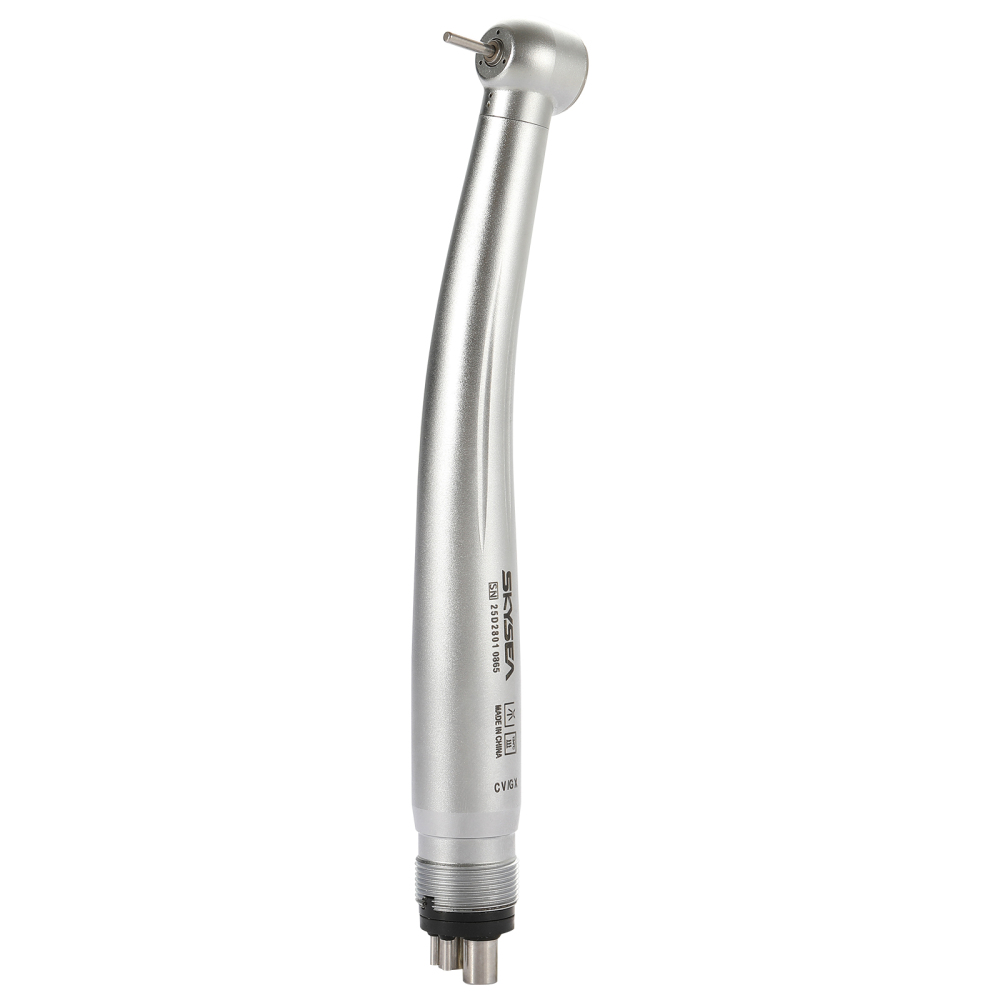

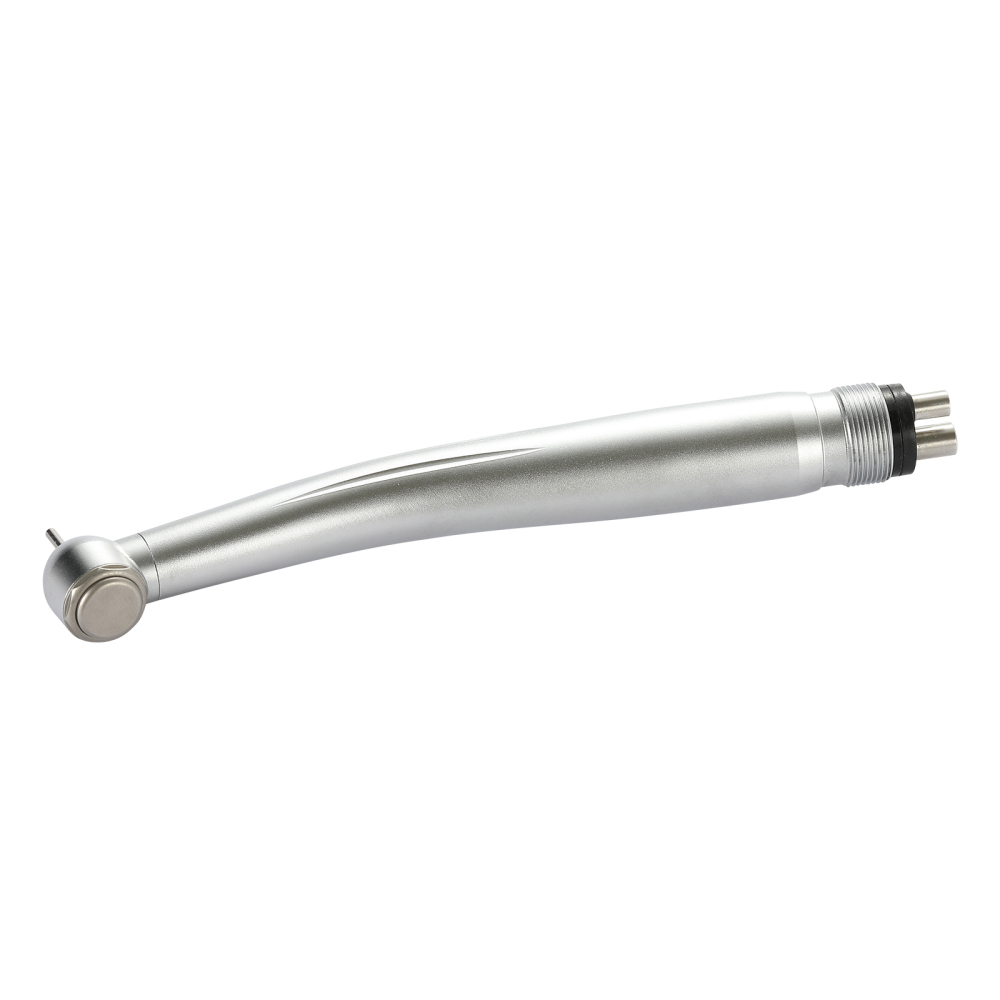

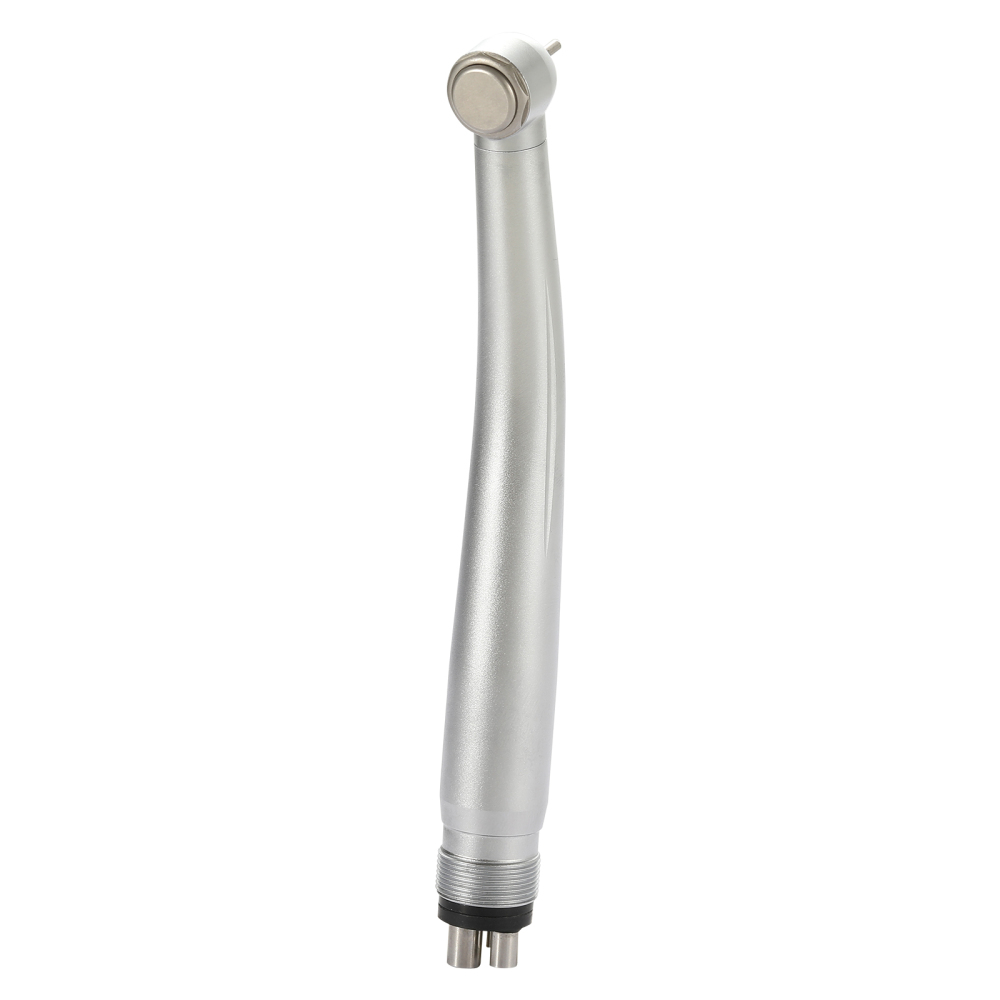

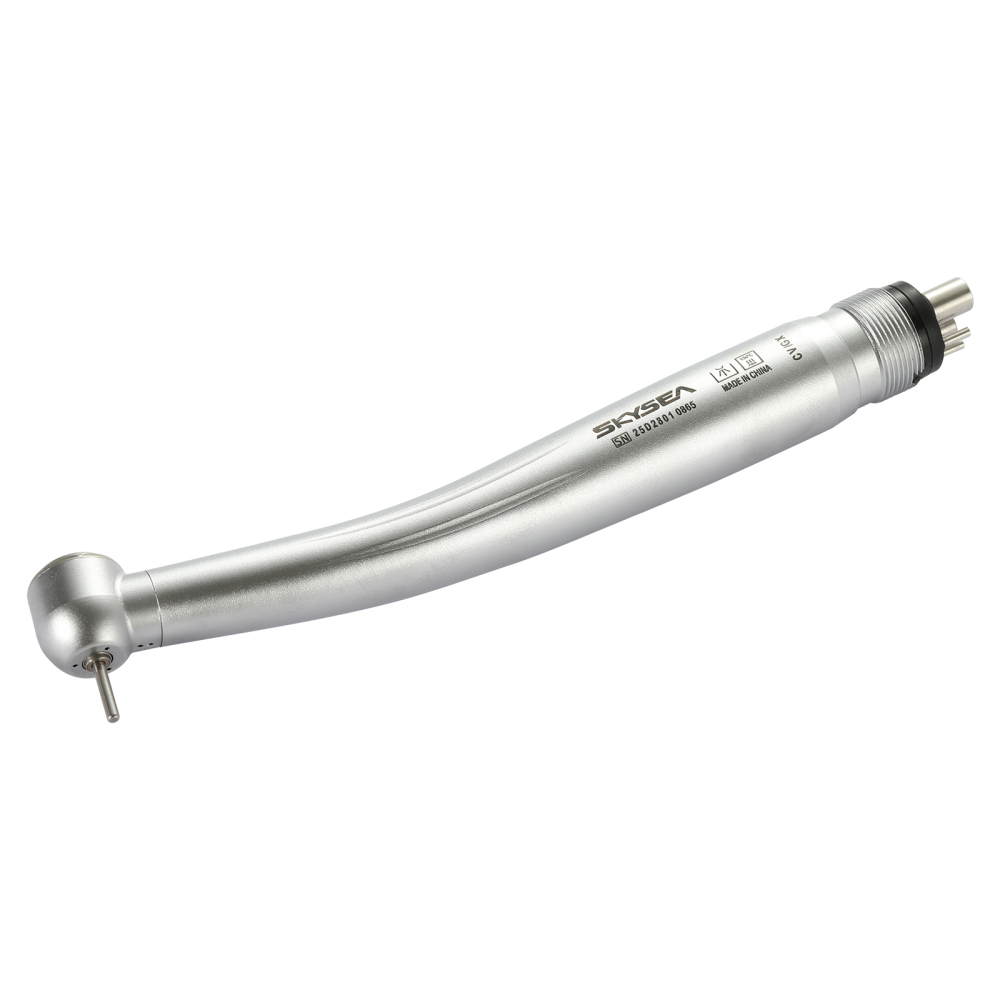

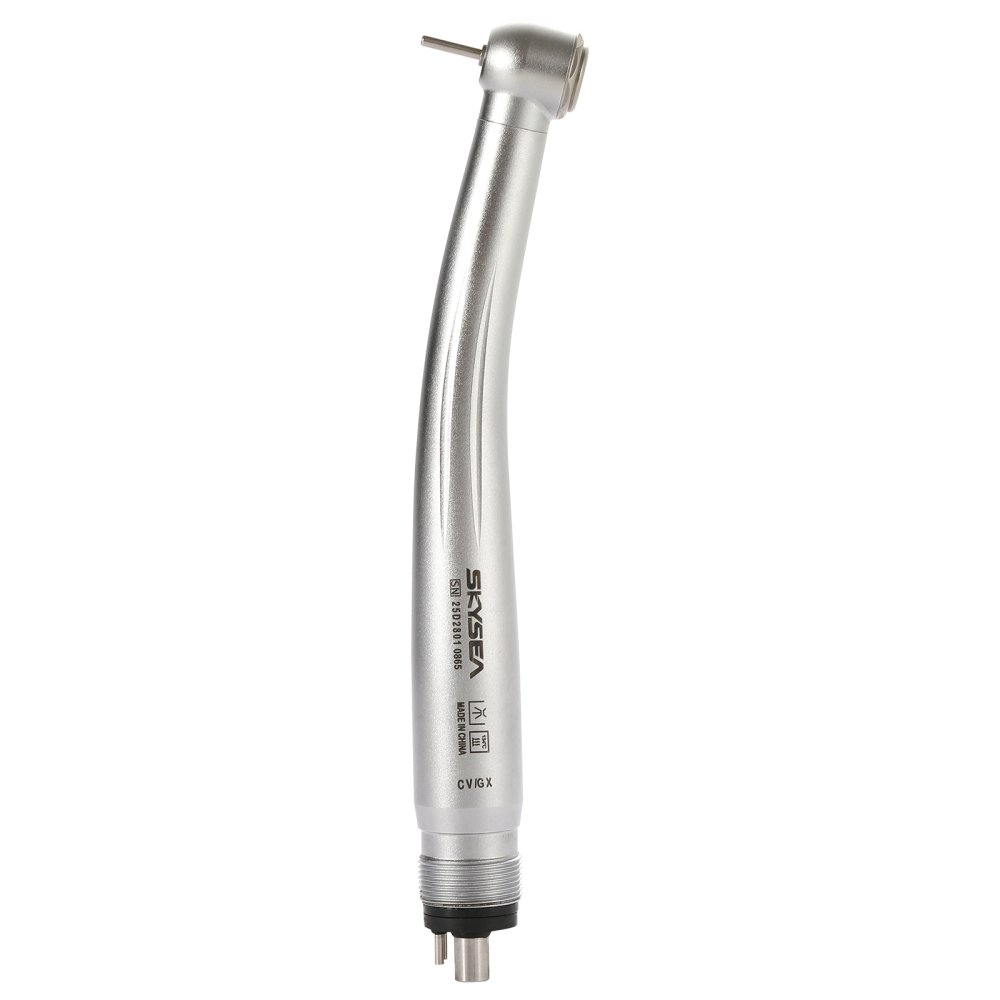

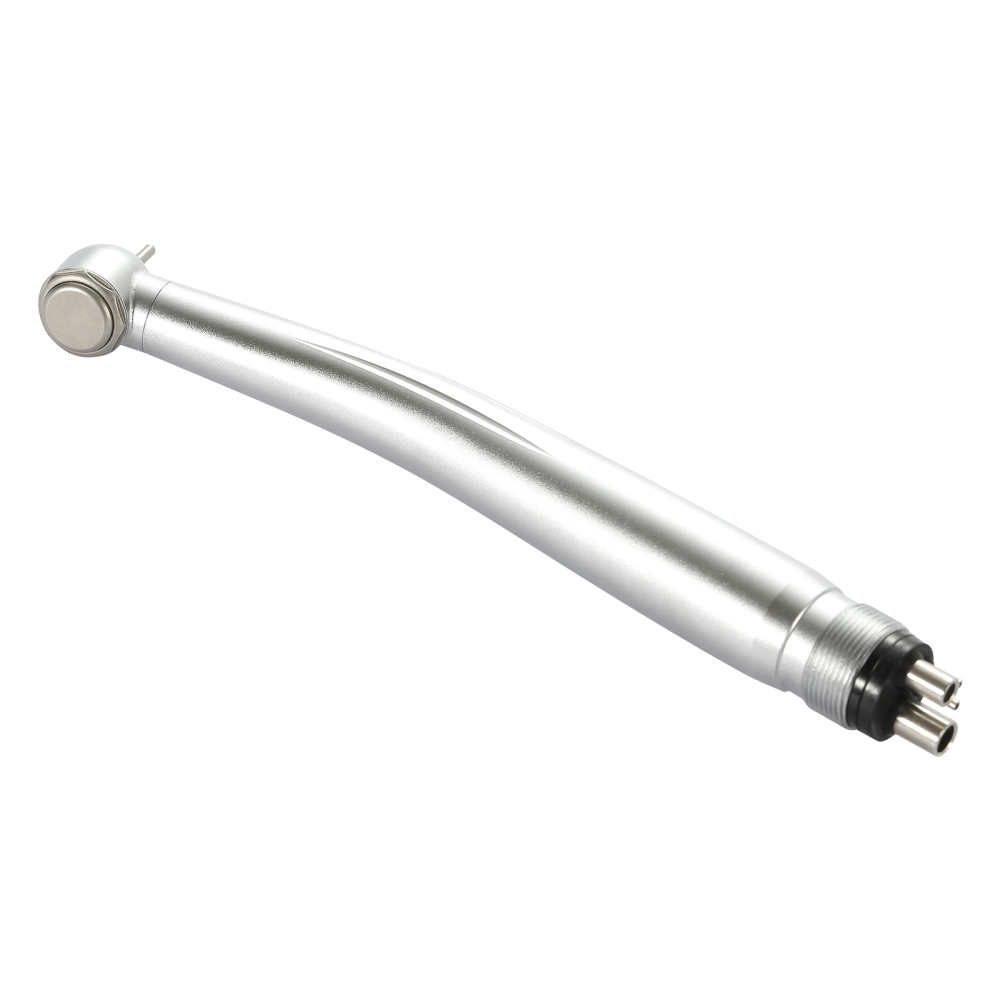

- NSK style Pana Max high speed handpiece

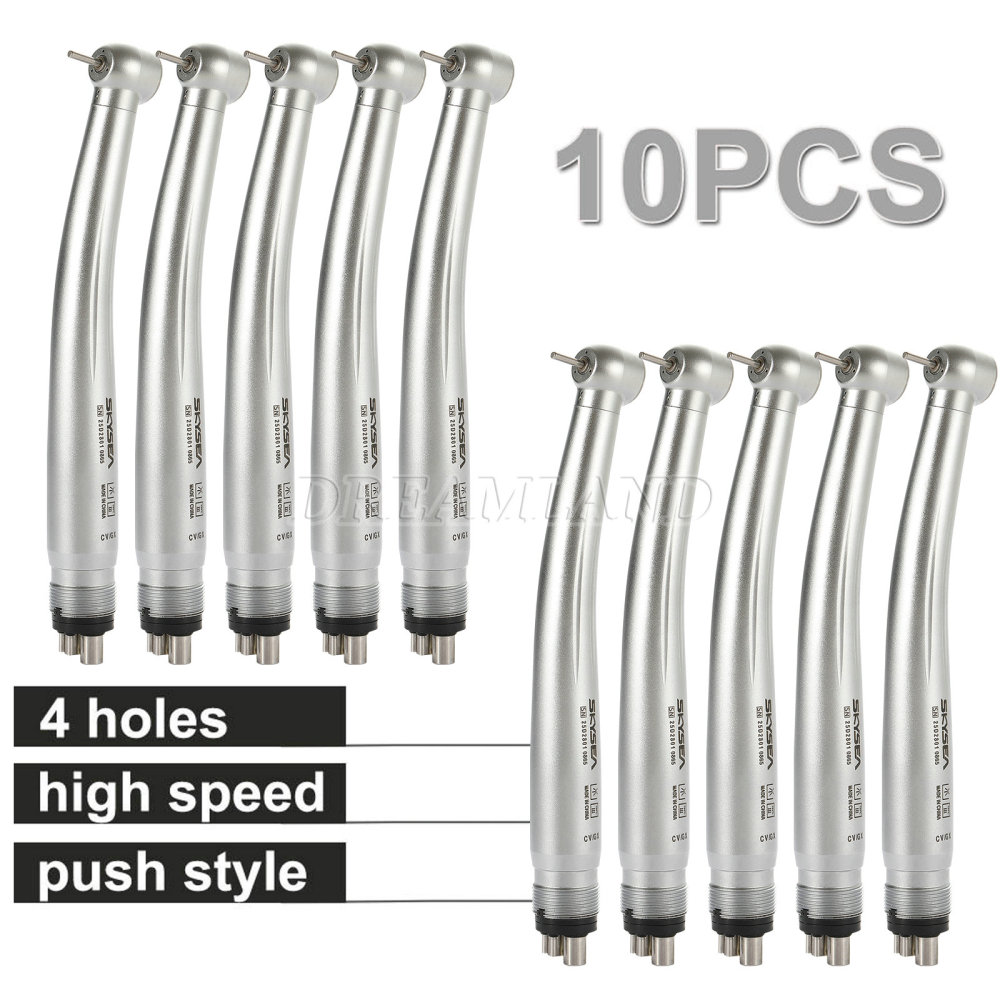

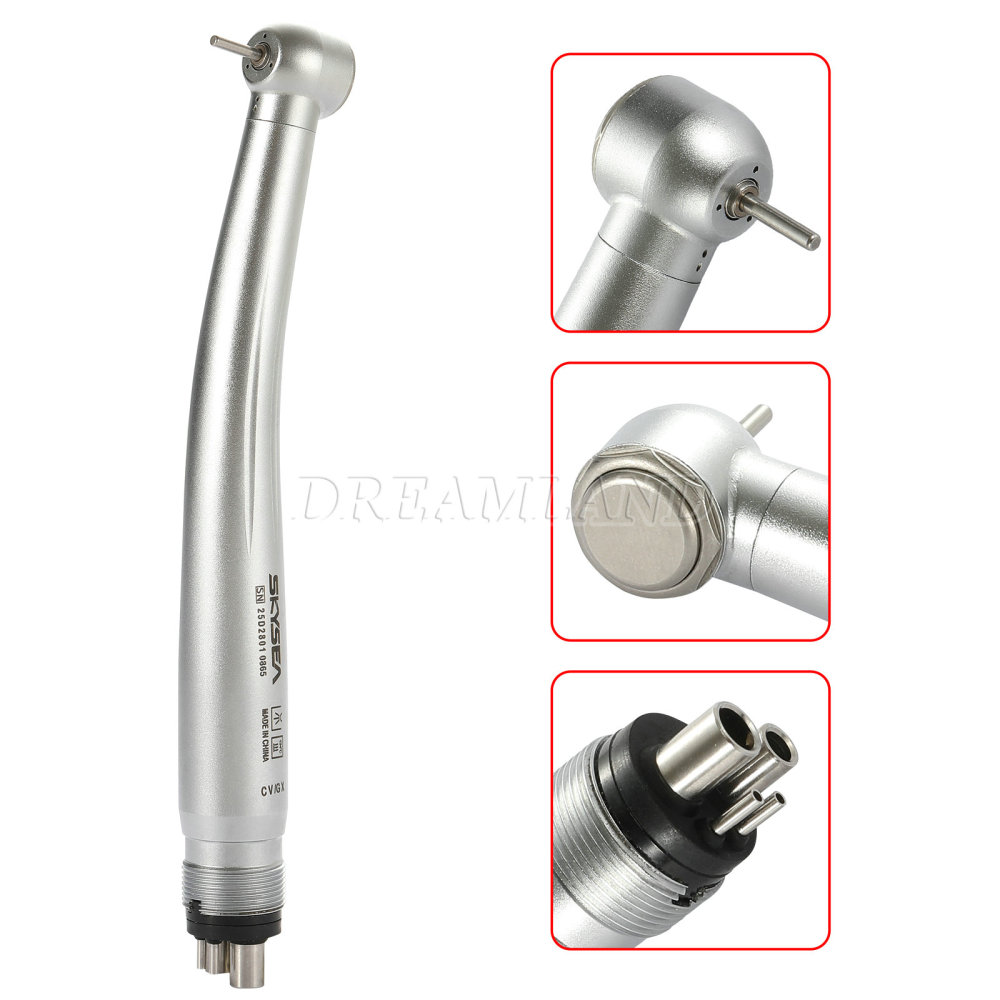

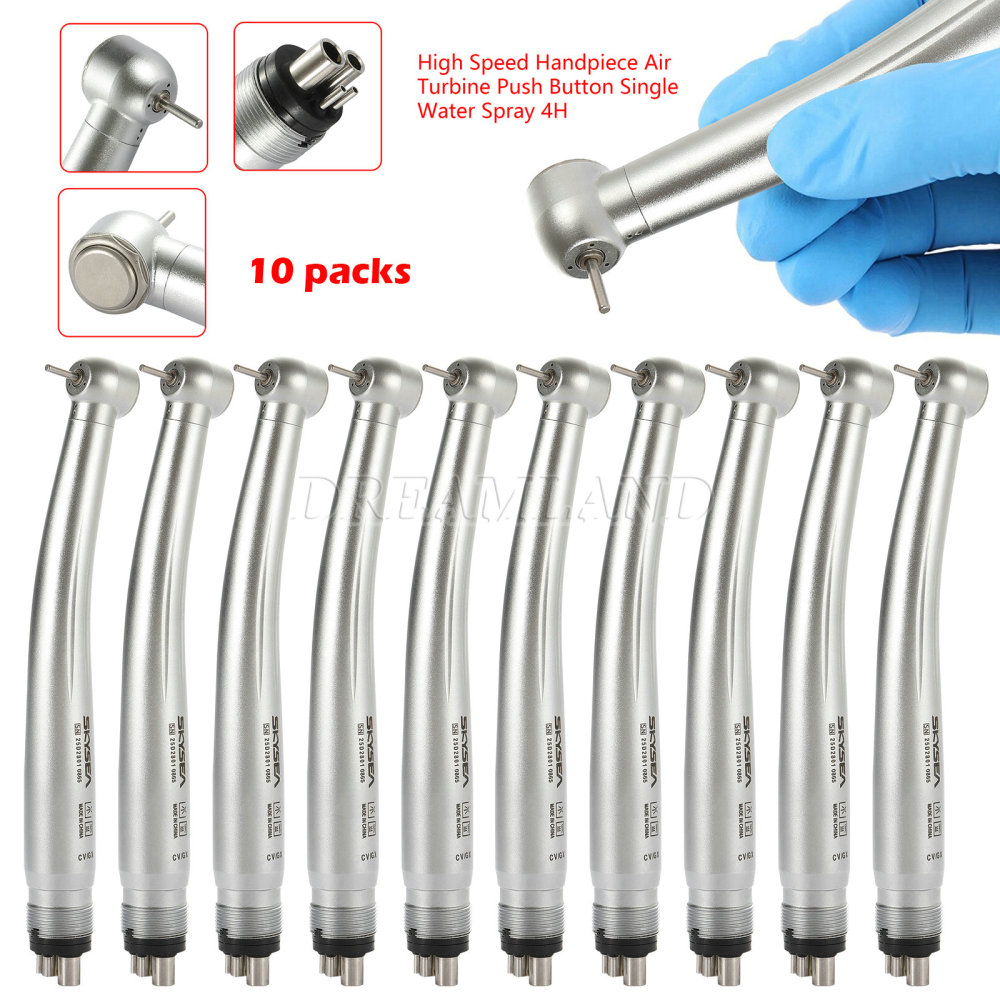

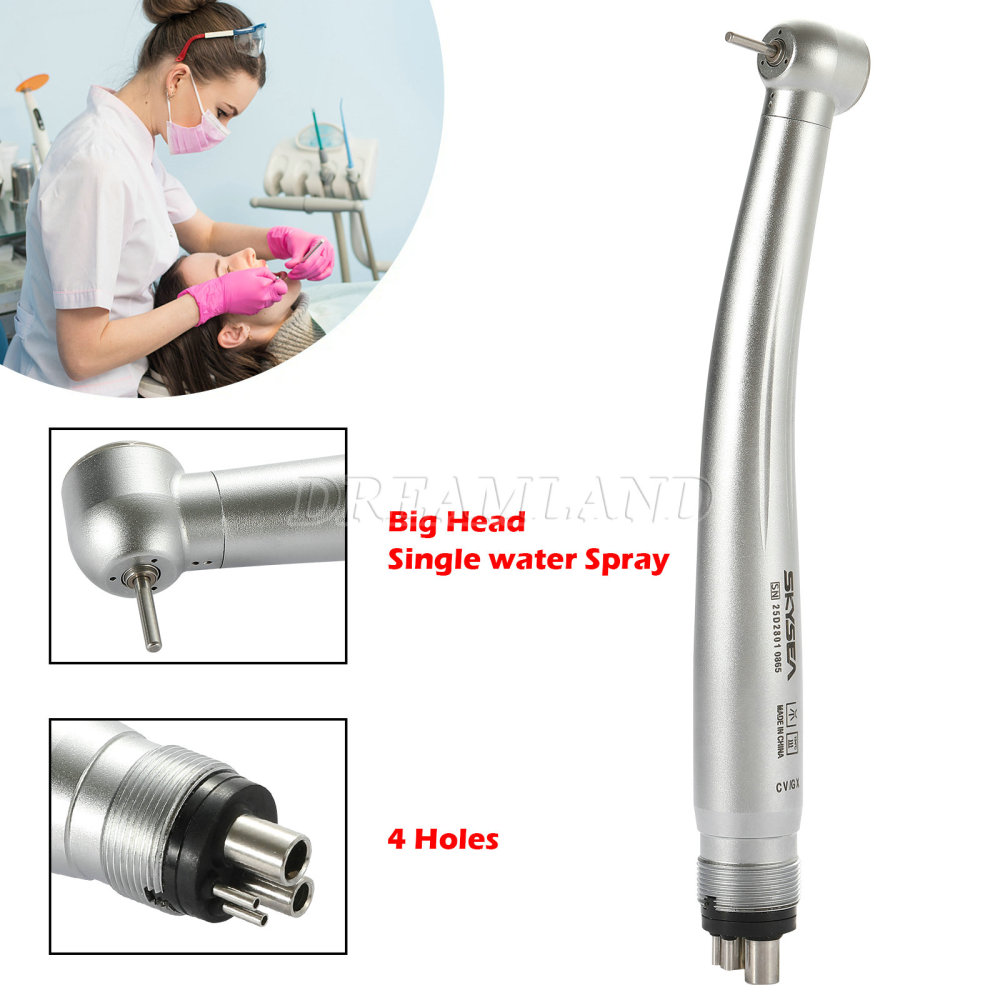

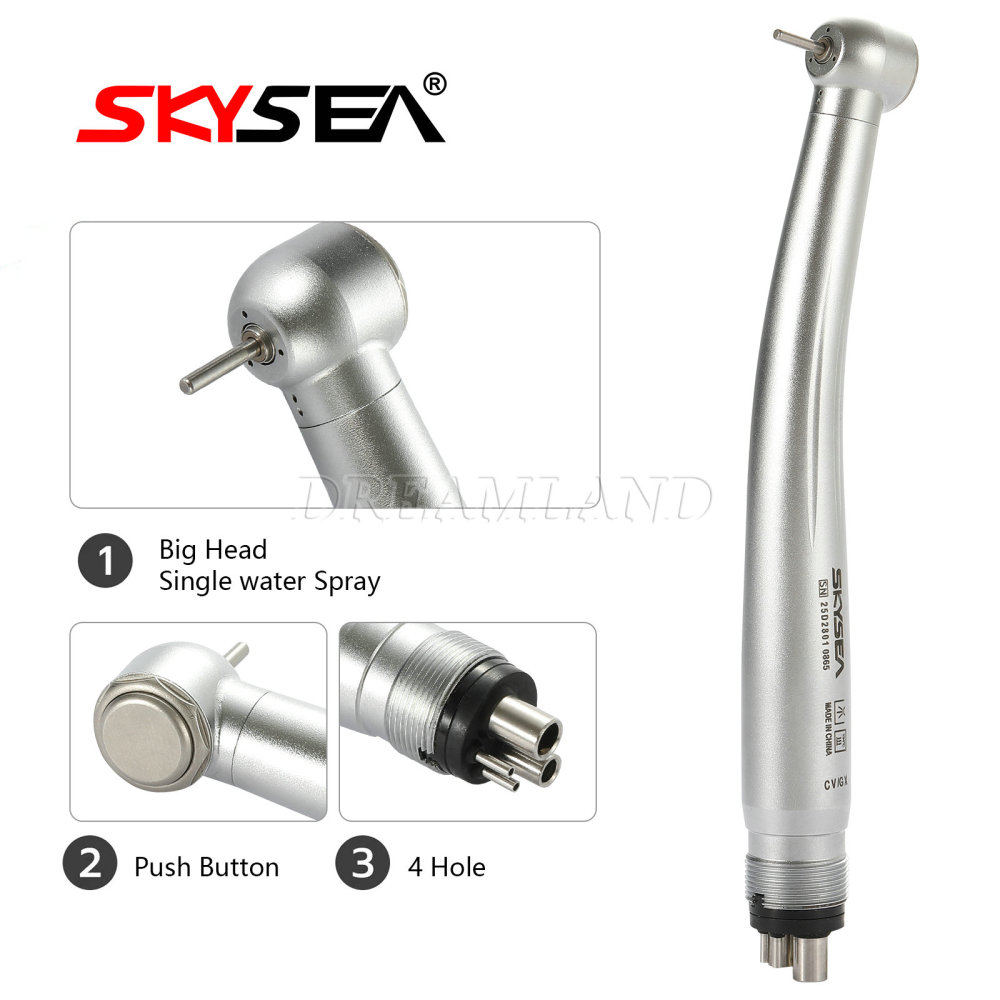

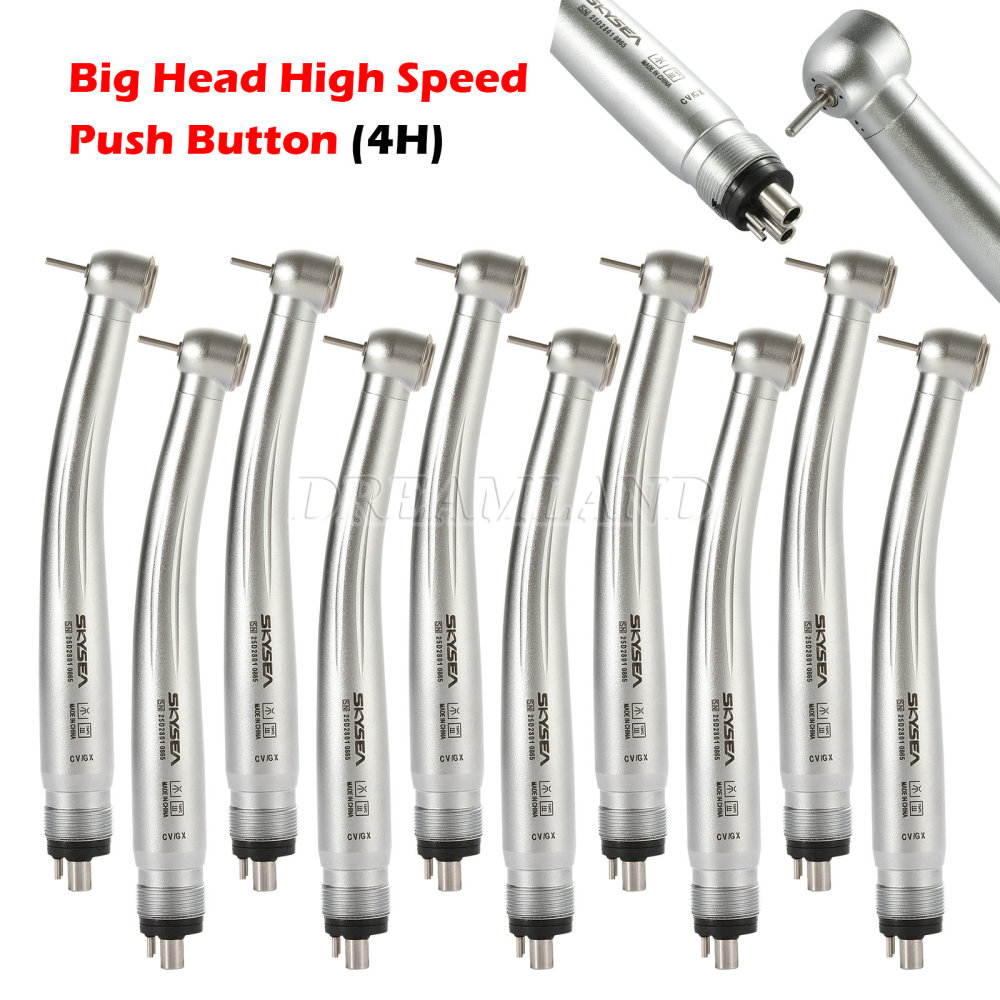

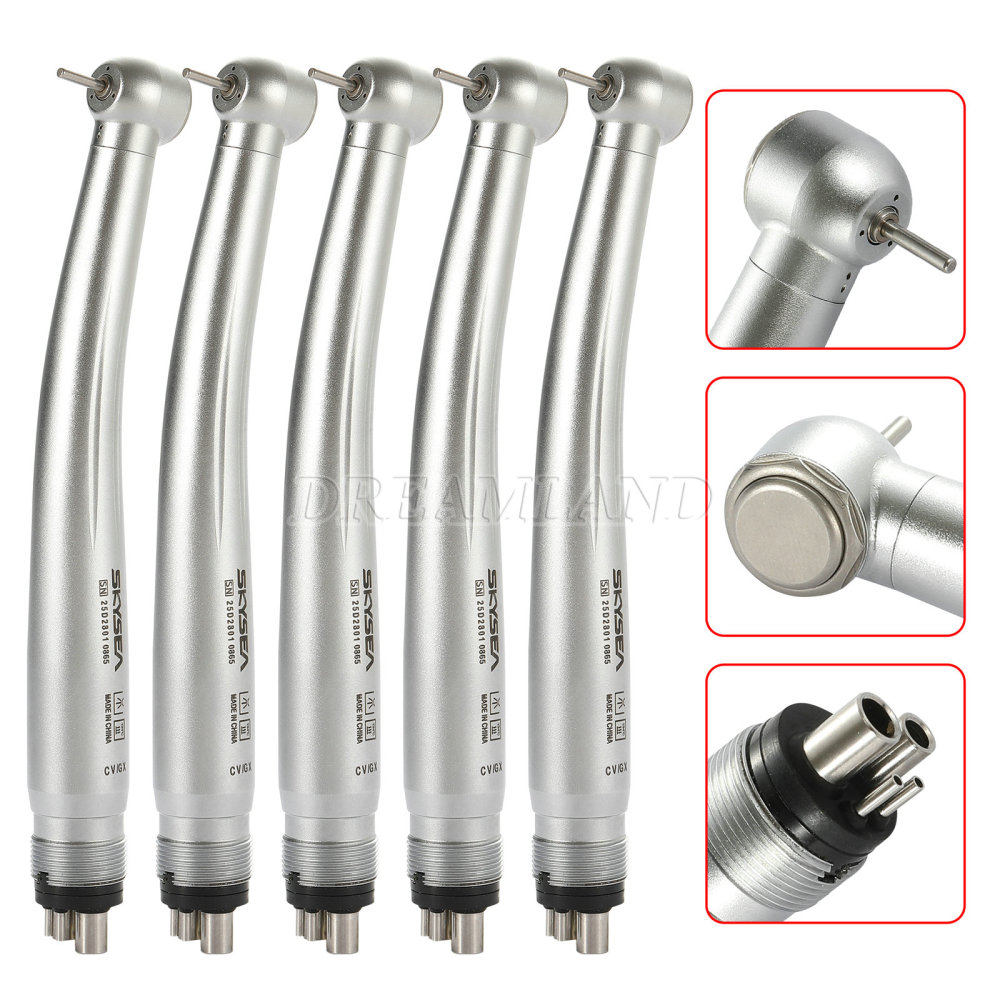

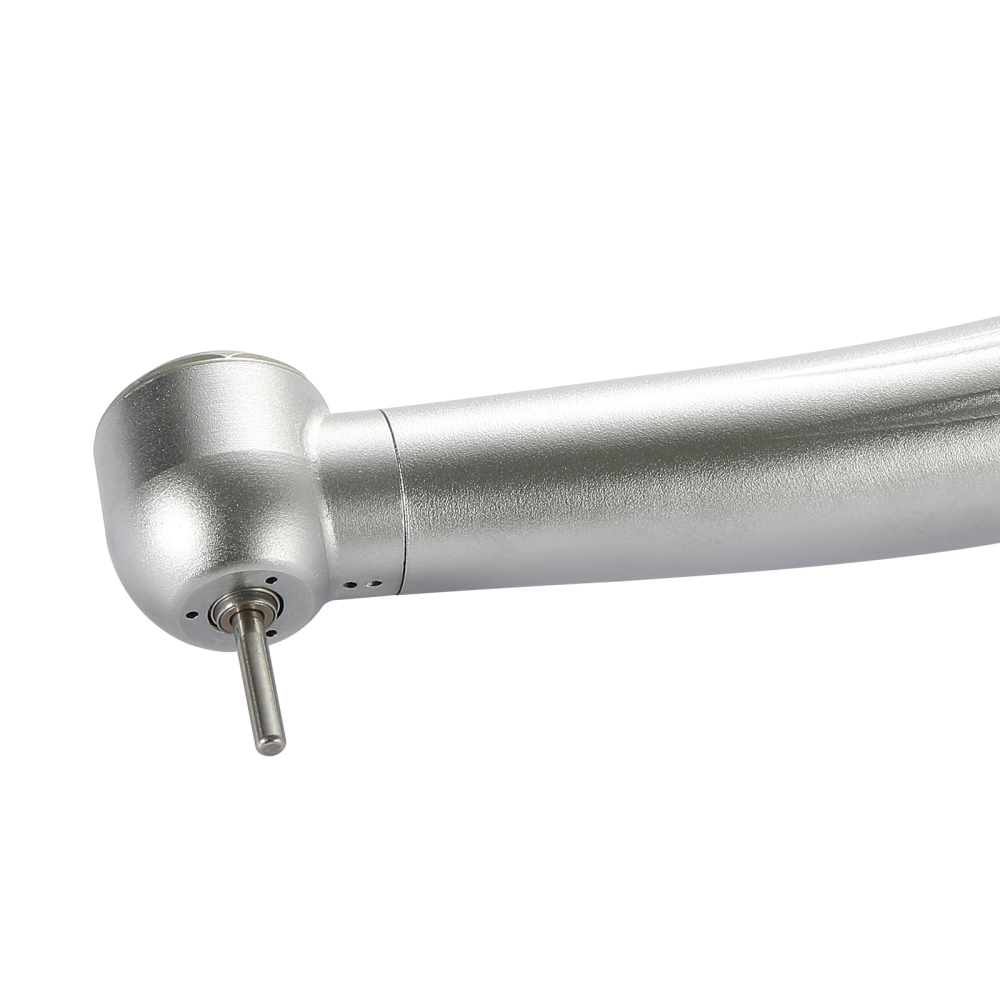

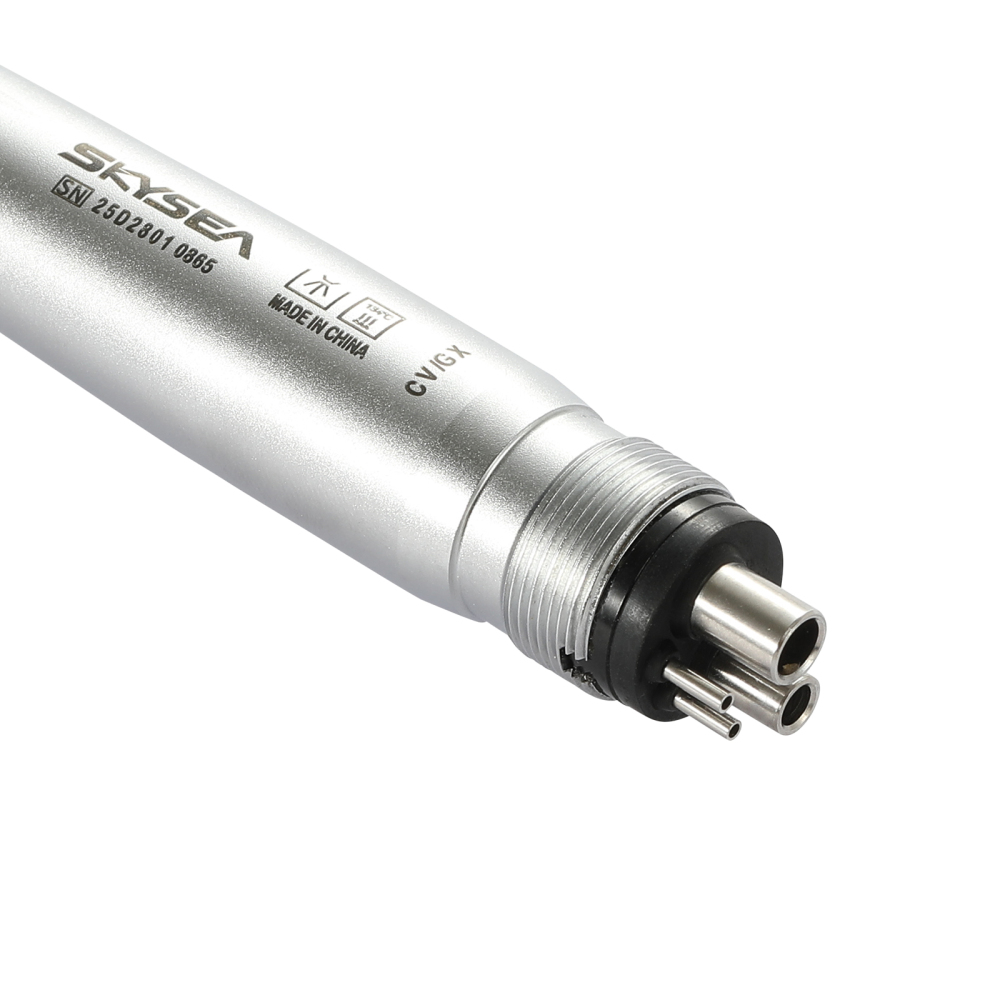

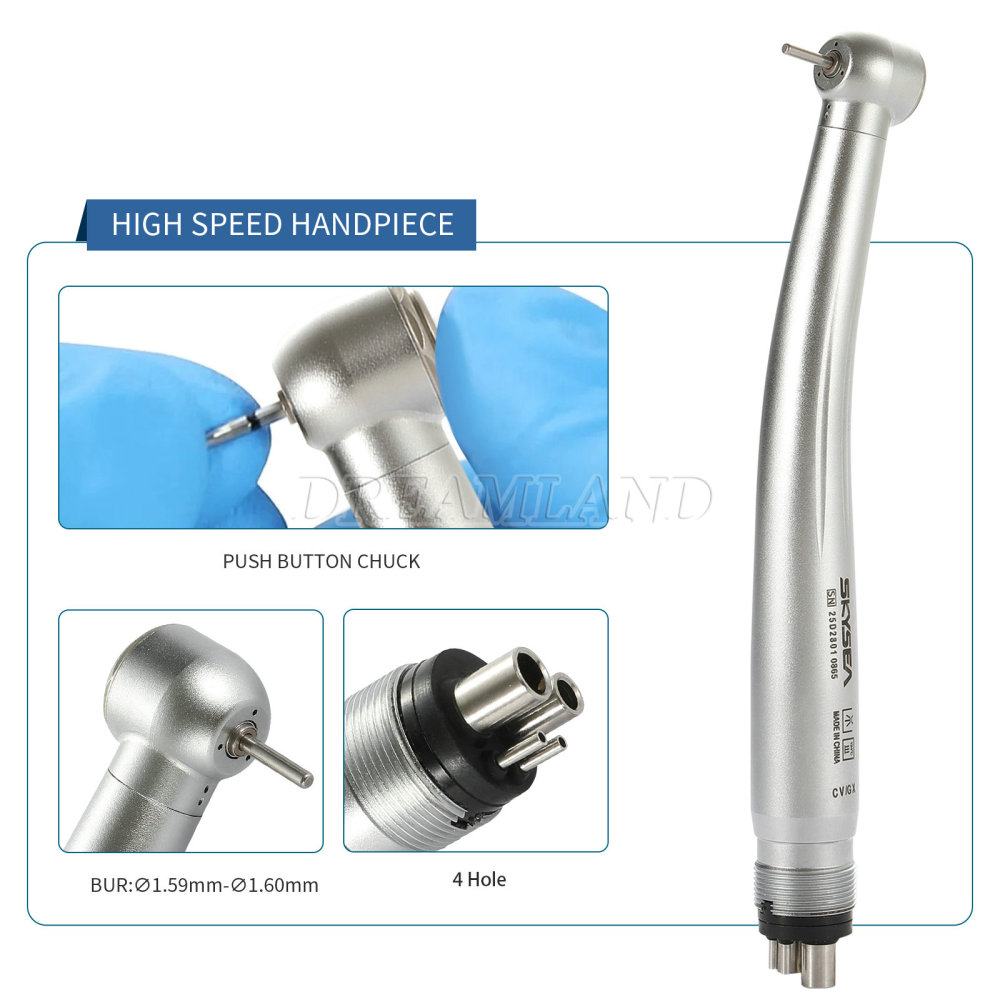

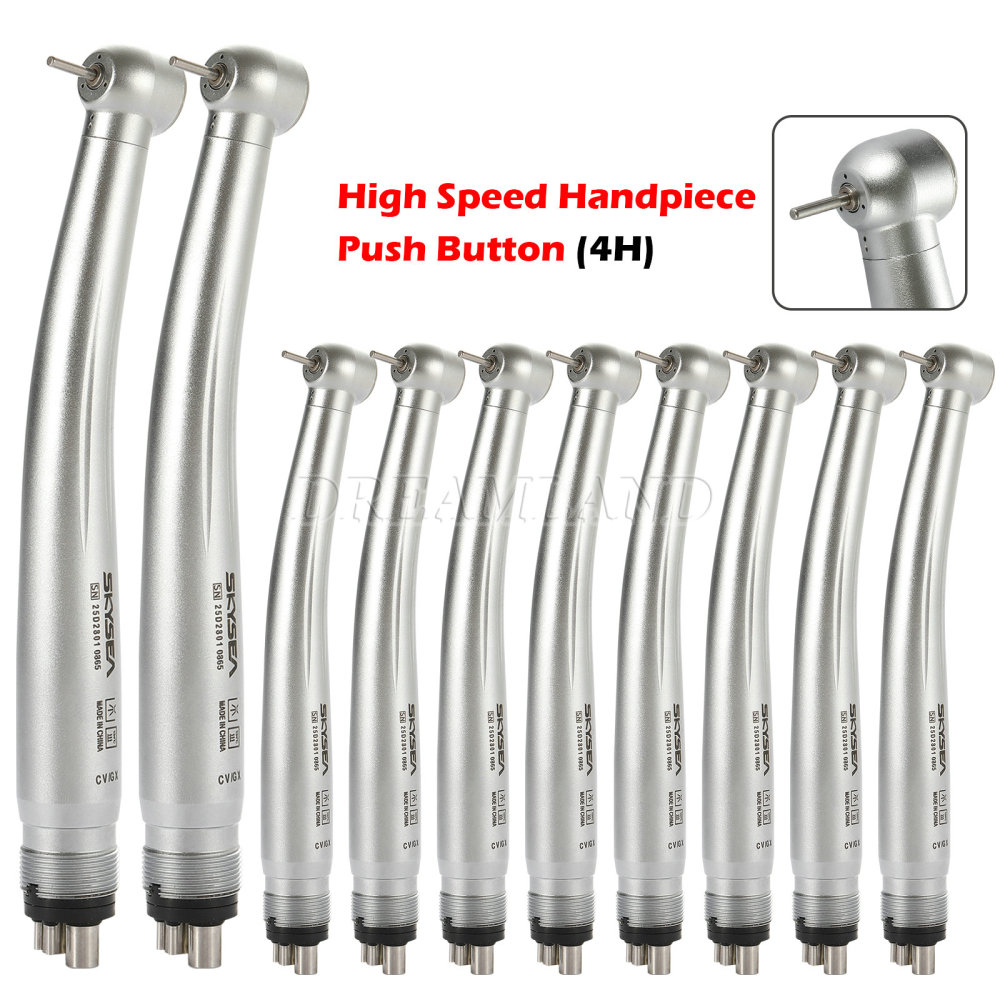

- 4 hole Big Head push button handpiece
- Single water spray
- It has unique appearance design and fluent outline.
- Smooth as silk, it has excellent texture.
- With people-friendly design, easy for operation.

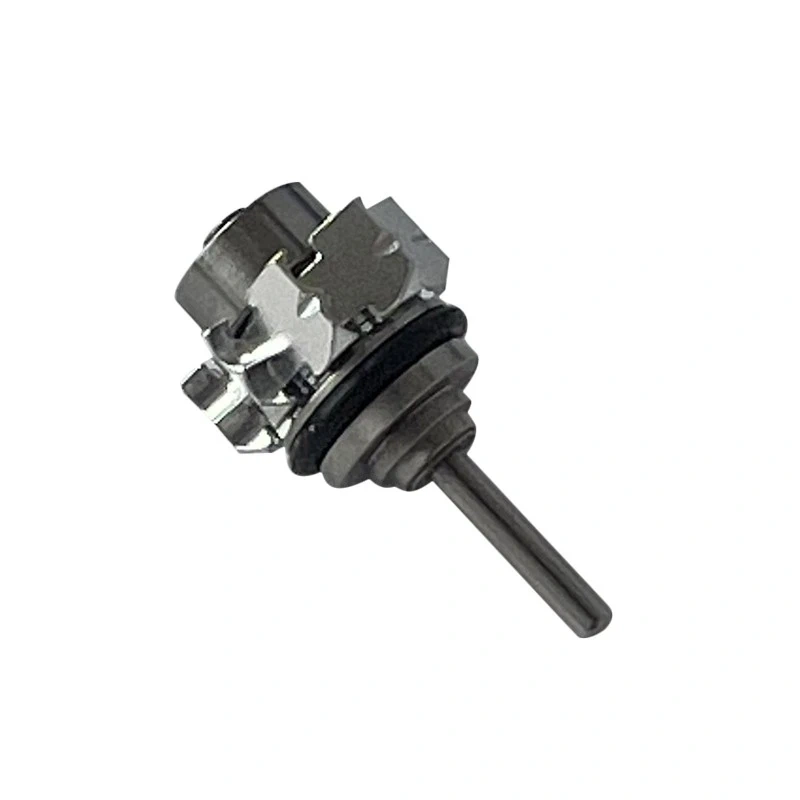

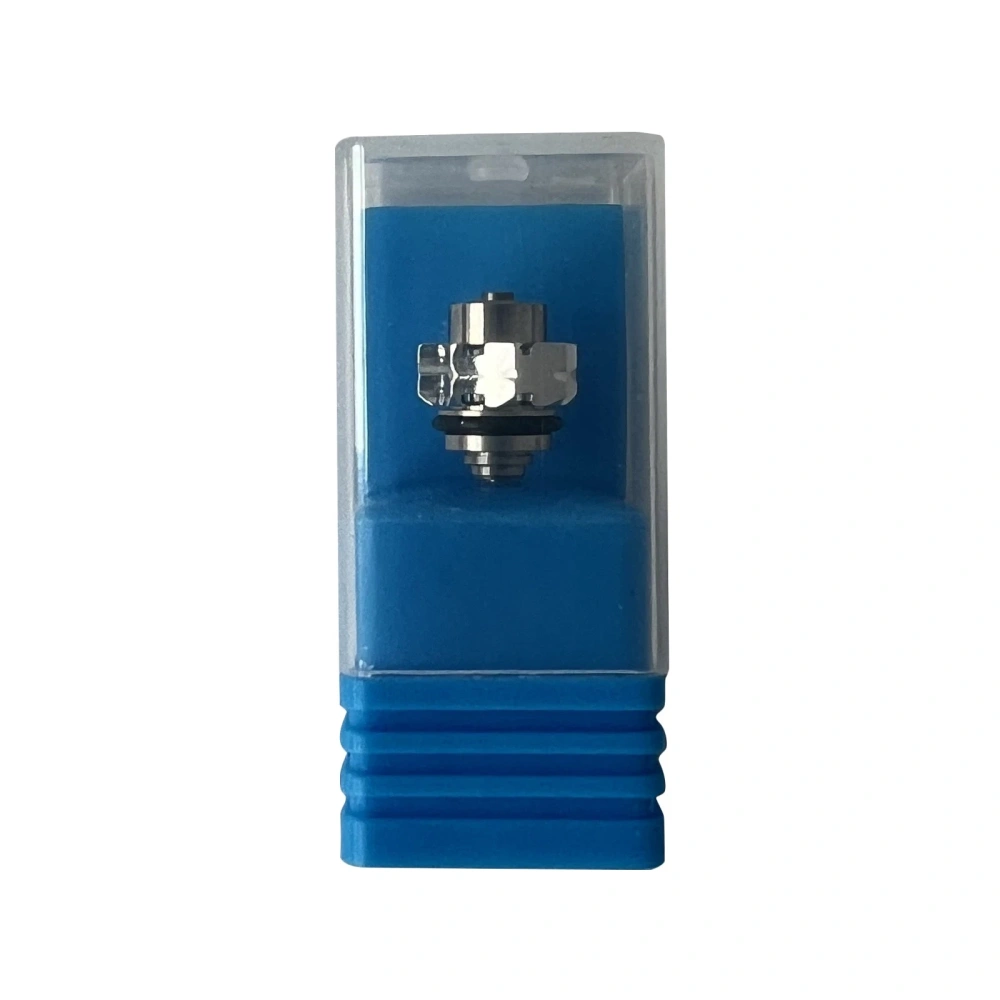

- With best quality cartridge, easier for cleaning.
- With high-speed turbine rotation, it has better performances.
- It is noise-free and stable.
- Applicable Bur: 1.6mm and should be conformed to ISO standard.
- Idling speed of handpiece should be no less than 370,000 rotations under working air pressure of 25-30 pressure atmosphere.
- Special for operations such as clamping high-speed dentistry machine needle to drill and grind teeth in department of stomatology, it is more professional.
- It is only for people who have dentistry medical qualification.
Specification:
|
Description
|
Big Head Push button type, high speed handpiece, single water spray 4 hole
|
|
Needle change Type
|
Push button
|
|
Air Pressure at the back end of HP
|
206~231 KPa (2.1~2.35 kgf/cm2)
|
|
Air pressure at the guage in the dental unit
|
240-294 KPa (2.45-3.0 kgf/cm2)
|
|
Water Pressure
|
198Kpa (2 kg)
|
|
Rotation Speed
|
370,000-420,000 rpm
|
|
Bur Applicable
|
φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)
|
|
Noise
|
≤70dB
|
